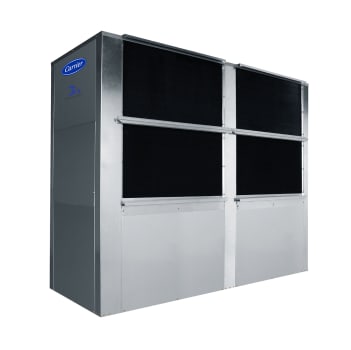

Aquazone™ Indoor Water-Cooled Large Capacity Water Source Heat Pump 50HQP
Aquazone™ Indoor Water-Cooled Large Capacity Water Source Heat Pump
50HQP
with Puron® Advance Refrigerant (R-454b)
6 to 20 Nominal Tons
The 50HQP large capacity, indoor water-cooled heat pump units are designed for horizontal installation with a variety of airflow configurations. These units provide a practical and economical approach for comfort conditioning requirements in both traditional and geothermal replacement, renovation, and new construction applications.
Performance Features
- Capacities from 6 to 20 tons
- Belt driven centrifugal blowers
- Scroll compressors mounted on vibration isolator grommets
- Extended range application for use with boiler/tower, open loop and geothermal applications
- Fully insulated unit with acoustic type insulation
- Mute package for applications requiring especially ow noise levels
- Equipped with performance monitor to ensure efficient heat pump operation
- Digital control system including A2L leak detection safety features
- TXV (thermostatic expansion valve) controlled
- Copper or cupronickel heat exchanger
- Exceeds ASHRAE 90.1 performance requirements
- ARI/ISO 13256-1 certified (sizes 072-120)
Maintenance Features
- Access to compressor section through 3 service panels
- Large, removable front and side panels provide access for all service requirements
- Blower housing can be serviced without disconnecting ductwork
- Quick electrical disconnects on blower motor and control box components
- Easy removal of control box
- Refrigerant circuit equipped with high/low pressure ports
- No tools required to change filters
- Standard 1-in. filter
Installation Features
- Pre-wired and factory charged with Puron Advance refrigerant (R-454b)
- Ducted or free return connections
- Water and condensate connections are FPT and secured to cabinet
Reliability Features
- Galvanized steel construction
- Coated and insulated stainless steel condensate pan
- Two-way motorized control valve
- Tin-Electro-Plated Copper Tubing /w Aluminum fin coils for corrosive environments
- Reversing valve (4-way), water-to-refrigerant coaxial coil, and enhanced aluminum fin/rifled copper tube air-to-refrigerant heat exchanger standard
- UL, UL Canada and ETL certified
Standard Limited Warranty
- 5 year parts only on compressor
- One year parts only on all other parts
- Extended warranty packages available
Factory-Installed Options
- Copper or cupronickel heat exchangers
- Carrier TruVu™ DDC Controls with BACNet IP communication
- Sound attenuation (mute) package
- Cooling Only operation
- Condenserless for use with remote air-cooled condenser
- Hot Water Coil
- Boilerless Electrical Heat, Compressors Status, Pump Interlock and EMS control relays
- Hot gas reheat
- Waterside economizer
- Hot gas bypass
- Tin-Electro-Plated Copper Tubing /w Aluminum fin coils
Field-Installed Accessories
- Ball valves (brass body)
- Fire-rated hoses
- Hose kit assemblies
- Non-programmable thermostat
- Programmable 7-day thermostat
- Remote sensors
- Solenoid water control valves (brass body)
- Y strainers (bronze body)
- Electric duct heater
- Two-way motorized control valve
Performance Features
- Capacities from 6 to 20 tons
- Belt driven centrifugal blowers
- Scroll compressors mounted on vibration isolator grommets
- Extended range application for use with boiler/tower, open loop and geothermal applications
- Fully insulated unit with acoustic type insulation
- Mute package for applications requiring especially ow noise levels
- Equipped with performance monitor to ensure efficient heat pump operation
- Digital control system including A2L leak detection safety features
- TXV (thermostatic expansion valve) controlled
- Copper or cupronickel heat exchanger
- Exceeds ASHRAE 90.1 performance requirements
- ARI/ISO 13256-1 certified (sizes 072-120)
Maintenance Features
- Access to compressor section through 3 service panels
- Large, removable front and side panels provide access for all service requirements
- Blower housing can be serviced without disconnecting ductwork
- Quick electrical disconnects on blower motor and control box components
- Easy removal of control box
- Refrigerant circuit equipped with high/low pressure ports
- No tools required to change filters
- Standard 1-in. filter
Installation Features
- Pre-wired and factory charged with Puron Advance refrigerant (R-454b)
- Ducted or free return connections
- Water and condensate connections are FPT and secured to cabinet
Reliability Features
- Galvanized steel construction
- Coated and insulated stainless steel condensate pan
- Two-way motorized control valve
- Tin-Electro-Plated Copper Tubing /w Aluminum fin coils for corrosive environments
- Reversing valve (4-way), water-to-refrigerant coaxial coil, and enhanced aluminum fin/rifled copper tube air-to-refrigerant heat exchanger standard
- UL, UL Canada and ETL certified
Standard Limited Warranty
- 5 year parts only on compressor
- One year parts only on all other parts
- Extended warranty packages available
Factory-Installed Options
- Copper or cupronickel heat exchangers
- Carrier TruVu™ DDC Controls with BACNet IP communication
- Sound attenuation (mute) package
- Cooling Only operation
- Condenserless for use with remote air-cooled condenser
- Hot Water Coil
- Boilerless Electrical Heat, Compressors Status, Pump Interlock and EMS control relays
- Hot gas reheat
- Waterside economizer
- Hot gas bypass
- Tin-Electro-Plated Copper Tubing /w Aluminum fin coils
Field-Installed Accessories
- Ball valves (brass body)
- Fire-rated hoses
- Hose kit assemblies
- Non-programmable thermostat
- Programmable 7-day thermostat
- Remote sensors
- Solenoid water control valves (brass body)
- Y strainers (bronze body)
- Electric duct heater
- Two-way motorized control valve
