Economic & environmentally-responsible energy savings.

Whether striving to minimize the operating costs of a facility or reducing the building’s carbon footprint, heat recovery from the chilled water system is entirely possible and practical. In applications from hotels to hospitals, casinos or universities, for service water heating to building heating, pool heating or preheating domestic water sources, heat reclaim is not only possible but also potentially a very efficient means to reduce energy costs and consumption.
Carrier Chillers Used with Heat Recovery

Buildings are responsible for 40 percent of total energy consumption. Of the energy consumed in commercial buildings, 43 percent is used for space and water heating. If a more efficient means of providing heat could be implemented it would represent a tremendous opportunity to reduce energy consumption in buildings and thus reduce total energy consumption. There is a more efficient means of generating hot water through the application of chiller systems with heat reclaim capabilities. Carrier chillers with heat reclaim capabilities can do just that; produce chilled water controlled to the necessary temperature while generating hot water as a by-product of the chilled water system.

How It Works

During cooling only operation, the chiller produces a controlled source of chilled water leaving the evaporator while dissipating heat through the condenser and ultimately to the environment. When there is a simultaneous need for chilled water and hot water, these chillers have the capability to operate in heat recovery mode. The recovered heat can be redirected for various heating applications, which saves energy while maintaining conditions.

Learn More About Heat Recovery
carrier-heat-reclaim-chillers-brochure-cover
Heat Reclaim Chillers Brochure
carrier-heat-reclaim-water-cooled-chillers-white-paper
Water-Cooled Heat Recovery White Paper
carrier-heat-reclaim-air-cooled-chillers-white-paper
Air-Cooled Heat Recovery White Paper
carrier-exterior-courtyard-university-of-alabama-at-dusk
The University of Alabama in Huntsville

Heat Recovery Product Comparisons


MODEL AquaSnap® 30MP Chiller AquaForce® 30HXC Chiller AquaForce® 30HXC Modified Chiller AquaForce® 30HXA Chiller AquaForce® 30XW Chiller AquaEdge® 19DV Chiller AquaSnap® 30RB Chiller
Cooling Medium Water-Cooled Water-Cooled Water-Cooled Water-Cooled (Condenser from Finger Lakes) Water-Cooled Water-Cooled Air-Cooled
Max Temp (°F) 140°* 110° 120° 135° 140° 120° 131°
Capacity (Tons) 16-71 75-265 75-265 75-265 325-400 500-800 60-190
Control Algorithm Controls to leaving chilled water temperature Controls to leaving chilled water temperature or leaving hot water temperature Controls to leaving chilled water temperature or leaving hot water temperature Controls to leaving chilled water temperature or leaving hot water temperature Controls to leaving chilled water temperature or leaving hot water temperature Controls to leaving chilled water temperature Controls to entering hot water temperature

*30MP 016 and 032 models maximum temperature is 110°F (43.3°C) and 104°F (40°C), respectively.

MODEL 30MP TGZ MS CGWQ UCH
Manufacturer Carrier Daikin MultiStack Trane ClimaCool
Cooling Medium Water-Cooled Water-Cooled Water-Cooled Water-Cooled Water-Cooled
Capacity (Tons) 16-71 50-256 10-85 20-70 15-85
Max Temp (°F) 140°* 160° 180° 125° 135°

*30MP 016 and 032 models maximum temperature is 110°F (43.3°C) and 104°F (40°C), respectively.

MODEL 30XW 30HXC Modified 30HXC 30HXA RTWD RTHD YVWA UGW
Manufacturer Carrier Carrier Carrier Carrier Trane Trane York ClimaCool
Cooling Medium Water-Cooled Water-Cooled Water-Cooled Water-Cooled Water-Cooled Water-Cooled Water-Cooled Water-Cooled
Capacity (Tons) 150-400 75-265 75-265 75-265 80-250 150-430 125-300 80
Max Temp (°F) 140° 110° 120° 135° 140° 114° - -
MODEL 19DV TSC CVHE CVHF CDHF CVHH CYK
Manufacturer Carrier Daikin Trane Trane Trane Trane York
Cooling Medium Water-Cooled Water-Cooled Water-Cooled Water-Cooled Water-Cooled Water-Cooled Water-Cooled
Capacity (Tons) 500-800 250-1500 120-500 325-2000 1400-3950 900-2000 300-2500
Max Temp (°F) 120° 140° 120° 120° 120° 120° 170°
MODEL 30RB CGAM AGZE YLAA MHR
Manufacturer Carrier Trane Daikin York Motivair
Cooling Medium Air-Cooled Air-Cooled Air-Cooled Air-Cooled Air-Cooled
Capacity (Tons) 60-190 20-120 75-240 55-200 60-500
Max Temp (°F) 131° 155° 155° 140° 140°

Heat Recovery Products

carrier-19DV-water-cooled-centrifugal-chiller-a

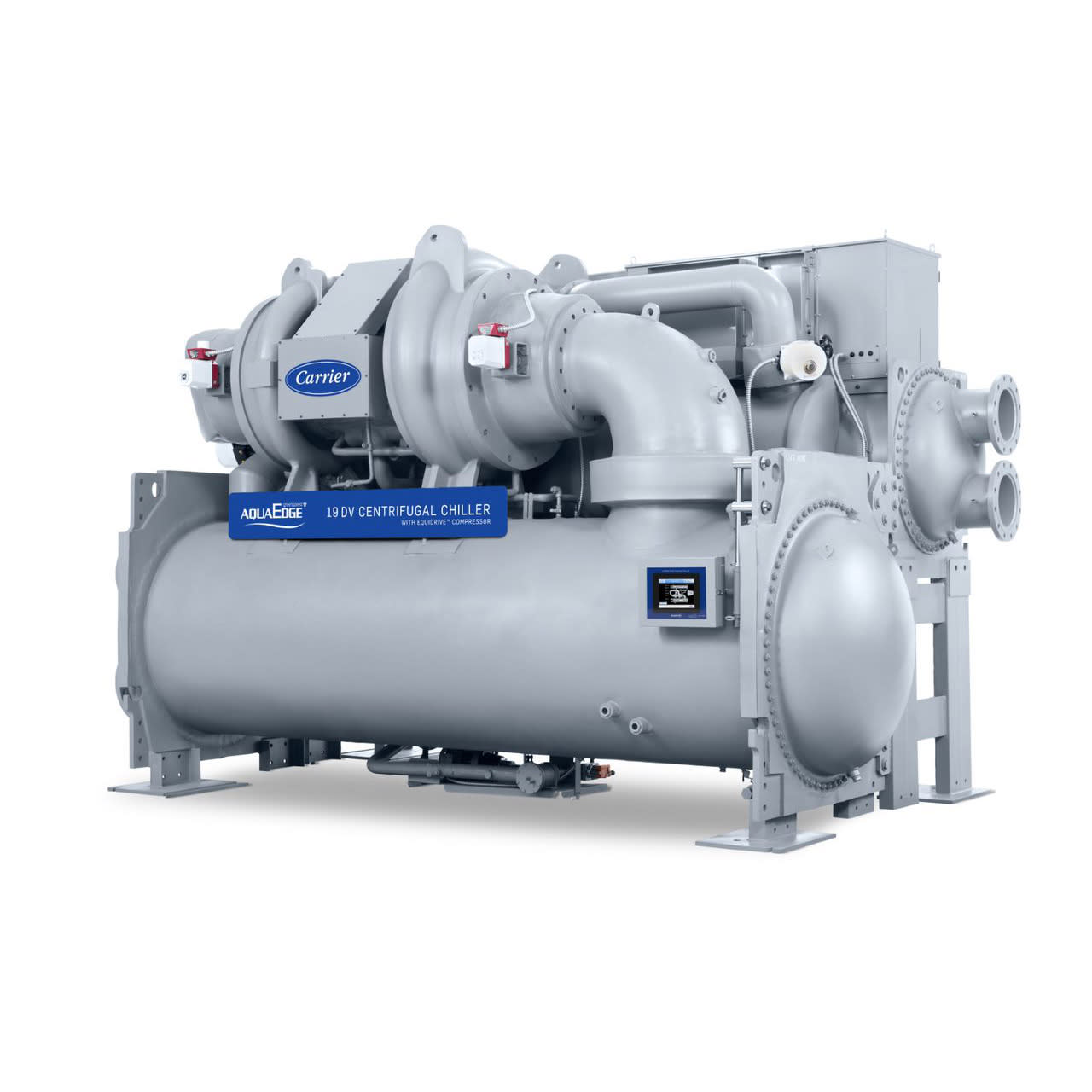

AquaEdge® 19DV Chiller
carrier-30XW-high-efficiency-water-cooled-indoor-screw-chiller-b
AquaForce® 30XW Chiller
carrier-30RB-60T-air-cooled-liquid-chiller-with-greenspeed-intelligence
AquaSnap® 30RB Chiller
carrier-30MPW-packaged-water-cooled-scroll-chiller
AquaSnap® 30MPW Chiller
carrier-30HXC-high-efficiency-indoor-water-cooled-screw-chiller
AquaForce® 30HXC Chiller
