Clamp-on & Strap Temperature Sensors NSB-10K-2-STP
Clamp-on & Strap Temperature Sensors
NSB-10K-2-STP

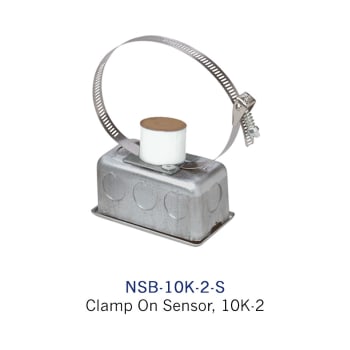

Clamp-On with NEMA 1 J-Box (JB)
NSB-10K-2-S
Clamp-On with w/ NEMA 4 BB2 Box
NSB-10K-2-S-BB2

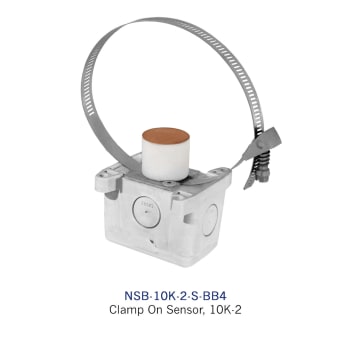

Clamp-On with NEMA 1 BB4 Box
NSB-10K-2-S-BB4

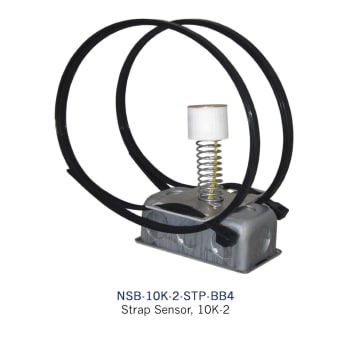

Spring-Loaded Strap w/ NEMA 1 J-Box (JB)
NSB-10K-2-STP

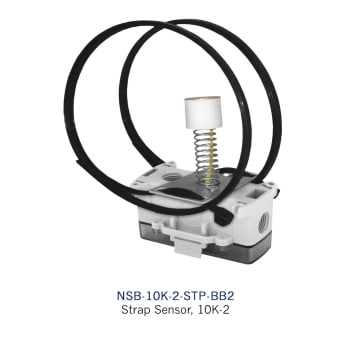

Spring-Loaded Strap w/ NEMA 4 BB2 Box
NSB-10K-2-STP-BB2

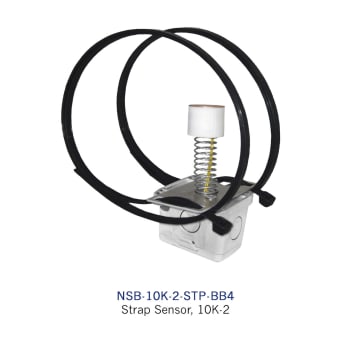

Spring-Loaded Strap w/ NEMA 1 BB4 Box
NSB-10K-2-STP-BB4
Clamp-on Sensors are made for direct pipe mounting and temperature measurement of water pipe applications. These sensors are for mounting before any insulation is on the pipe.
Strap Sensors are spring-loaded units that are for mounting to pipes with up to 2” of insulation using a unique spring sensor extension.
Enclosure mounting styles come in plastic or metal for both NEMA 1 and NEMA 4 applications and are all plenum rated.
| Clamp-on & Strap Temperature Sensors | |
|---|---|
| Sensor | Passive, NTC, 2 wire |
| Thermistor | Thermal resistor
Temp. Output: Resistance, 10k Type 2 Accuracy (Std): ±0.36ºF, (±0.2ºC) Stability: < 0.036ºF/Year, (<0.02ºC/Year) Heat Dissipation: 2.7 mW/ºC Temp. Drift: <0.02ºC per year Probe Range: -40º to 221ºF (-40º to 105ºC) |
| Lead Wire | 22 AWG stranded |
| Wire Insulation | Etched Teflon, Plenum rated |
| Probe | Copper sensor plate, 24 AWG, 1.25” diameter |
| Mounting | Clamp-On (S): ½” Stainless steel worm gear hose clamp
Strap (STP): 48” Nylon tie strap, 1/2” wide |
| Enclosure Types | J-Box (JB): With eight ½” knockouts
BB2 Box: With three ½” NPSM & three ½” drill-outs BB4 Box: With three ½” drill-outs & one ½” open port |
| Enclosure Ratings | J-Box (JB): NEMA 1
BB2 Box: NEMA 4X, IP66, UV rated BB4 Box: IP10 (with spring installed) (IP44 without spring and with Knockout Plug installed in the open port) |
| Enclosure Materials | J-Box (JB): Galvanized steel, UL94H-B
BB2 Box: Polycarbonate, UL94V-0, UV rated BB4 Box: Polycarbonate & Nylon, UL94V-0 |
| Ambient (Enclosure) | 0 to 100% RH, Non-condensing
BB2 & BB4 Boxes: -40ºF to 185ºF, (-40º to 85ºC) J-Box: -40ºF to 212ºF, (-40º to 100ºC) |
| Agency | RoHS, CE |
| Clamp-on & Strap Temperature Sensors | |
|---|---|
| Sensor | Passive, NTC, 2 wire |
| Thermistor | Thermal resistor
Temp. Output: Resistance, 10k Type 2 Accuracy (Std): ±0.36ºF, (±0.2ºC) Stability: < 0.036ºF/Year, (<0.02ºC/Year) Heat Dissipation: 2.7 mW/ºC Temp. Drift: <0.02ºC per year Probe Range: -40º to 221ºF (-40º to 105ºC) |
| Lead Wire | 22 AWG stranded |
| Wire Insulation | Etched Teflon, Plenum rated |
| Probe | Copper sensor plate, 24 AWG, 1.25” diameter |
| Mounting | Clamp-On (S): ½” Stainless steel worm gear hose clamp
Strap (STP): 48” Nylon tie strap, 1/2” wide |
| Enclosure Types | J-Box (JB): With eight ½” knockouts
BB2 Box: With three ½” NPSM & three ½” drill-outs BB4 Box: With three ½” drill-outs & one ½” open port |
| Enclosure Ratings | J-Box (JB): NEMA 1
BB2 Box: NEMA 4X, IP66, UV rated BB4 Box: IP10 (with spring installed) (IP44 without spring and with Knockout Plug installed in the open port) |
| Enclosure Materials | J-Box (JB): Galvanized steel, UL94H-B
BB2 Box: Polycarbonate, UL94V-0, UV rated BB4 Box: Polycarbonate & Nylon, UL94V-0 |
| Ambient (Enclosure) | 0 to 100% RH, Non-condensing
BB2 & BB4 Boxes: -40ºF to 185ºF, (-40º to 85ºC) J-Box: -40ºF to 212ºF, (-40º to 100ºC) |
| Agency | RoHS, CE |
