Immersion Temperature Sensors NSB-10K-2-I
Immersion Temperature Sensors
NSB-10K-2-I
BB2 Box Immersion

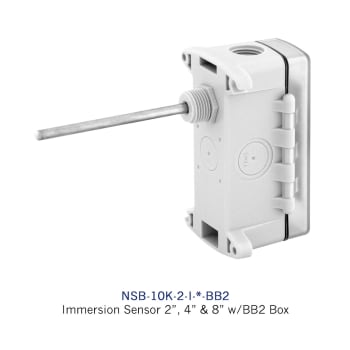

NSB-10K-2-I-*-BB2 (2”, 4" or 8" probe, no thermowell)

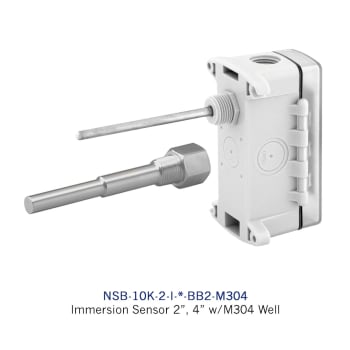

NSB-10K-2-I-*-M304 (2” or 4" probe, 304 SS thermowell)
J-Box Immersion (Standard)

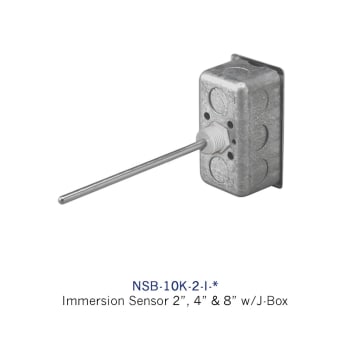

NSB-10K-2-I-* (2”, 4" or 8" probe, no thermowell)

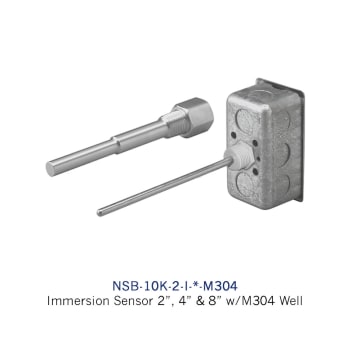

NSB-10K-2-I-*-M304 (2”, 4" or 8" probe, 304 SS thermowell)
BB4 Box Immersion

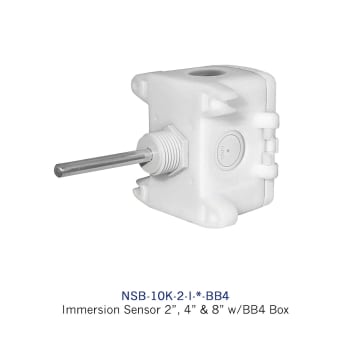

NSB-10K-2-I-*-BB4 (2”, 4" or 8" probe, no thermowell)
The Immersion Temperature Sensor is made for thermowell mounting and temperature measurement in water pipes, water tanks or cooling tower sump applications. The rigid probe is made of stainless steel and made in different lengths for a custom thermowell fit. Enclosure mounting styles come in plastic or metal for both NEMA 1 and NEMA 4 applications and are all plenum rated.
| Immersion Temperature Sensors | |
|---|---|
| Sensor | Passive, 2 wire |
| Thermistor | Thermal resistor
Temp. Output: Resistance, 10k Type 2 Accuracy (Std): ±0.36ºF, (±0.2ºC) Stability: < 0.036ºF/Year, (<0.02ºC/Year) Heat Dissipation: 2.7 mW/ºC Temp. Drift: <0.02ºC per year Probe Range: -40º to 221ºF (-40º to 105ºC) |
| Sensitivity | Approximate @ 32ºF (0ºC)
Thermistor: Non-linear |
| Lead Wire | 22 AWG stranded |
| Wire Insulation | Etched Teflon, Plenum rated |
| Probe | Rigid, 304 Stainless Steel, 0.25” OD |
| Probe length | 2” or 4” |
| Mounting | ½” NPSM Plastic Threads |
| Enclosure Types | J-Box (JB): With eight ½” knockouts
BB2 Box: With three ½” NPSM & three ½” drill-outs BB4 Box: With three ½” drill-outs & one ½” open port |
| Enclosure Ratings | J-Box (JB): NEMA 1
BB2 Box: NEMA 4X, IP66 BB4 Box: IP10, (IP44 with Knockout Plug in the open port) |
| Enclosure Materials | J-Box (JB): Galvanized steel, UL94H-B
BB2 Box: Polycarbonate, UL94V-0, UV rated BB4 Box: Polycarbonate & Nylon, UL94V-0 |
| Ambient (Enclosure) | 0 to 100% RH, Non-condensing
BB2 & BB4 Boxes: -40ºF to 185ºF, (-40º to 85ºC) J-Box & No Box: -40ºF to 212ºF, (-40º to 100ºC) |
| Agency | RoHS, *CE
JIS C1604-1989 *Thermistors are CE compliant |
| Immersion Temperature Sensors | |
|---|---|
| Sensor | Passive, 2 wire |
| Thermistor | Thermal resistor
Temp. Output: Resistance, 10k Type 2 Accuracy (Std): ±0.36ºF, (±0.2ºC) Stability: < 0.036ºF/Year, (<0.02ºC/Year) Heat Dissipation: 2.7 mW/ºC Temp. Drift: <0.02ºC per year Probe Range: -40º to 221ºF (-40º to 105ºC) |
| Sensitivity | Approximate @ 32ºF (0ºC)
Thermistor: Non-linear |
| Lead Wire | 22 AWG stranded |
| Wire Insulation | Etched Teflon, Plenum rated |
| Probe | Rigid, 304 Stainless Steel, 0.25” OD |
| Probe length | 2” or 4” |
| Mounting | ½” NPSM Plastic Threads |
| Enclosure Types | J-Box (JB): With eight ½” knockouts
BB2 Box: With three ½” NPSM & three ½” drill-outs BB4 Box: With three ½” drill-outs & one ½” open port |
| Enclosure Ratings | J-Box (JB): NEMA 1
BB2 Box: NEMA 4X, IP66 BB4 Box: IP10, (IP44 with Knockout Plug in the open port) |
| Enclosure Materials | J-Box (JB): Galvanized steel, UL94H-B
BB2 Box: Polycarbonate, UL94V-0, UV rated BB4 Box: Polycarbonate & Nylon, UL94V-0 |
| Ambient (Enclosure) | 0 to 100% RH, Non-condensing
BB2 & BB4 Boxes: -40ºF to 185ºF, (-40º to 85ºC) J-Box & No Box: -40ºF to 212ºF, (-40º to 100ºC) |
| Agency | RoHS, *CE
JIS C1604-1989 *Thermistors are CE compliant |
