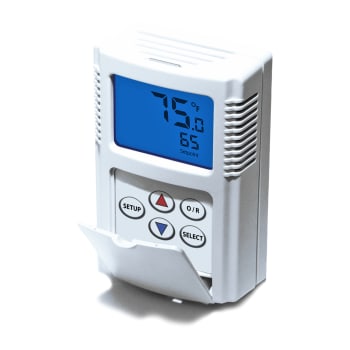

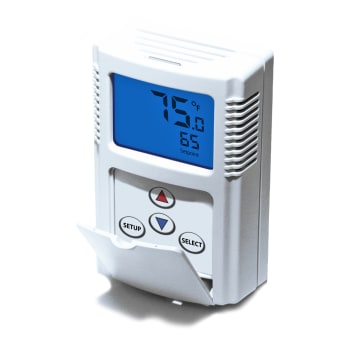

Microprocessor-Based RH Sensor
NSA-MICRO-RH

Part Numbers

NSA-HH/RH3-CP-RSO-RJ6-TUCH2-C

This microprocessor based unit can indicate room relative humidity, temperature, setpoint, fan speed, and occupied/unoccupied status with corresponding signals sent back to your DDC System. They utilize a capacitive sensing element to deliver a proportional analog output based on the relative humidity value sensed. The unit supports single sensor operation for several common sensor types and provides the flexibility to indicate several options. Additionally, many options are field selectable via the key-pad menu, including the blue backlight illumination settings.

Supply Voltage: +12-40 VDC (Resistive, 0-1V, 0-5V, 0.5-4.5V, 1-5V)
+18-40 VDC (0-10V, 2-10V, 0-20 mA, 4-20 mA)
20-28 VAC (All Outputs)
Supply Current: Current Output: 100 mA maximum | Voltage & Resistive Output: 16 mA maximum
Temperature Accuracy: +/-1°F (+/- 0.56°C)
Operating Temperature Range: 40°F to 104°F (5°C to 40°C)
Operating Relative Humidity Environment: 0 to 95% Relative Humidity (non-condensing)
Analog Temperature Sensor Outputs: Resistive, 0-1V, 0.5-4.5V, 0-5V, 1-5V, 0-10V, 2-10V, 0-20 mA, 4-20 mA
Setpoint Accuracy: Resistance: +/-5% Full Scale Output Analog: +/-2% Full Scale Output
Analog Setpoint Outputs: Resistive, 0-1V, 0.5-4.5V, 0-5V, 1-5V, 0-10V, 2-10V, 0-20 mA, 4-20 mA
Product Dimensions: (H) 4.56” (W) 3.00” (D) 1.26”
Supply Voltage: +12-40 VDC (Resistive, 0-1V, 0-5V, 0.5-4.5V, 1-5V)
+18-40 VDC (0-10V, 2-10V, 0-20 mA, 4-20 mA)
20-28 VAC (All Outputs)
Supply Current: Current Output: 100 mA maximum | Voltage & Resistive Output: 16 mA maximum
Temperature Accuracy: +/-1°F (+/- 0.56°C)
Operating Temperature Range: 40°F to 104°F (5°C to 40°C)
Operating Relative Humidity Environment: 0 to 95% Relative Humidity (non-condensing)
Analog Temperature Sensor Outputs: Resistive, 0-1V, 0.5-4.5V, 0-5V, 1-5V, 0-10V, 2-10V, 0-20 mA, 4-20 mA
Setpoint Accuracy: Resistance: +/-5% Full Scale Output Analog: +/-2% Full Scale Output
Analog Setpoint Outputs: Resistive, 0-1V, 0.5-4.5V, 0-5V, 1-5V, 0-10V, 2-10V, 0-20 mA, 4-20 mA
Product Dimensions: (H) 4.56” (W) 3.00” (D) 1.26”
