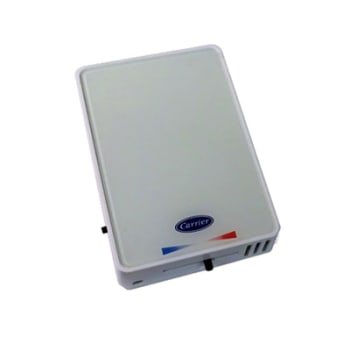

CO₂/Temperature Sensor 33ZCT56CO2-02
CO₂/Temperature Sensor
33ZCT56CO2-02
Space Temperature and CO₂ Room Sensor with Override and Setpoint Adjustment
The CO₂ and space temperature sensors are comprised of two sensors housed in one unit. They are designed to monitor carbon dioxide (CO₂) levels in the air and measure the interior building temperature.
The sensors use Single Beam Absorption Infrared™ diffusion technology to measure CO₂ levels and a 10K thermistor for measuring space temperature. The CO₂ levels can then be used as input into a CCN (Carrier Comfort Network) controller to control the ventilation damper position and ensure an adequate level of outside air in the building as well as space temperature control function.
- Combined CO₂ measurement range of 0 to 2000 ppm and a 10K thermistor temperature sensor
- Patented ABC Logic™ (Automatic Background Calibration) self calibration provides lifetime calibration
- Sleek, low profile
- Mounting plate with terminal blocks for easy installation and wiring
- Versatile sensor options including 4 to 20 mA or 0 to 10 v output
- Set point adjustment potentiometer with a nominal resistance of 100K Ohm ±10%
- Push button override
- Locking cover (Allen screws)
- Combined CO₂ measurement range of 0 to 2000 ppm and a 10K thermistor temperature sensor
- Patented ABC Logic™ (Automatic Background Calibration) self calibration provides lifetime calibration
- Sleek, low profile
- Mounting plate with terminal blocks for easy installation and wiring
- Versatile sensor options including 4 to 20 mA or 0 to 10 v output
- Set point adjustment potentiometer with a nominal resistance of 100K Ohm ±10%
- Push button override
- Locking cover (Allen screws)
