AquaEdge®
19XR

High-Efficiency Semi-Hermetic Centrifugal Chiller

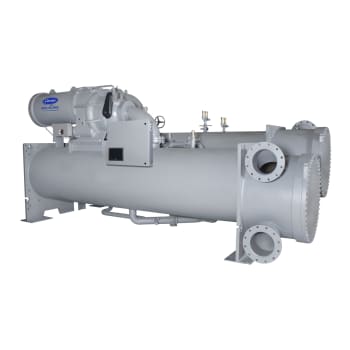

19XR Single-Stage (200 to 1600 Tons)

--Constant Speed

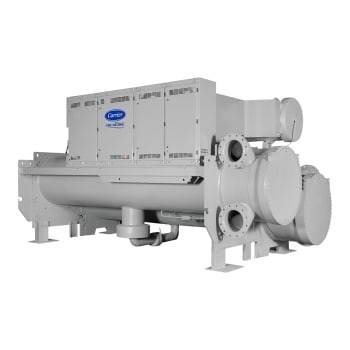

--Variable-Speed (19XRV)

19XR Two-Stage (800 to 3400 Tons)

--Constant Speed
--Variable-Speed (19XRV)

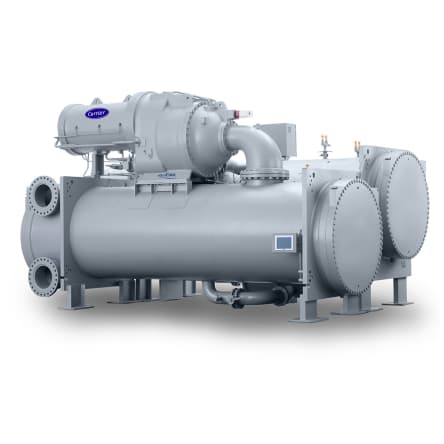

The AquaEdge® 19XR/XRV centrifugal chillers achieve energy efficiency levels using proven technology designed specifically for chlorine-free refrigerant. This combination ensures the most cost-effective, reliable solution for today's comfort cooling and process cooling applications.

Carrier's AquaEdge® chillers offer the best value in high-efficiency, chlorine-free centrifugal HVAC chillers.

Water cooled chillers within the scope of the AHRI WCCL certification program are certified in accordance with the AHRI Water-Cooled Water-Chilling and Heat Pump Water-Heating Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org.

Features
Options
Physical Data
Documents

Performance Features

IPLV to 0.31 (19XRV)
Chlorine-free HFC-134a or HFC/HFO-513A refrigerant
Semi-hermetic compressor motor
Low energy consumption during part load and full load operation
Aerodynamically contoured impeller
Touchscreen controls display
Compatible with Carrier Comfort Network® (CCN) communication link
Two stage compressor economized (19XR two-stage units)

Reliability Features

ASME constructed heat exchangers
Single-stage 200-1600 tons (703 to 5627 kW) or two-stage 800-3400 tons (2813 to 11957 kW) positive pressure compressor
Low voltage control circuits
Lowest industry refrigerant leakage rate at less than 0.1%
Semi-hermetically sealed compressor, motor, and transmission
Automated controls may be tested before start-up
Refrigerant-cooled, unit-mounted variable frequency drive (19XRV)

Maintenance Features

Password protected extensive service menu with built-in diagnostic capabilities, troubleshooting, and corrective action recommendations for preset alarms
Alarm and alert files maintain the last 25 time and date stamped messages in memory
Configuration data backup with non-volatile memory
Thermistor-type temperature sensor with quick connects in each water nozzle
Refrigerant isolation valves for in-chiller refrigerant storage (factory-installed option)
Unit-mounted pumpout unit for storing refrigerant inside the chiller during servicing (factory-installed option)
Service contract available

Installation Features

Low voltage control circuits
Refrigerant cooled unit mounted VFD
Less than 0.1% refrigerant leakage rate - lowest in the industry
Compressor, motor, and transmission semi-hermetically sealed
Automated controls test on start-up

Standard Warranty

One year from start-up or 18 months from shipment
Refrigerant warranty 5 years from date of manufacture (US & Canada Only)
Extended warranties available (US & Canada Only)

Factory-Installed Options

Enhanced tubing, .028 or .035 in. (0.711 or 0.889 mm):
- Internally/externally enhanced copper tubing - evaporator/condenser
- Internally/externally enhanced cupronickel tubing - condenser
- Smooth bore/externally enhanced copper tubing - evaporator/condenser
- Smooth bore/externally enhanced cupronickel tubing - condenser
Wall tubes, titanium, condenser, .025 or .028 in. (0.635 or 0.711 mm):
- Internally enhanced tubes
Marine waterboxes
- 150 psig (1034 kPa) waterbox
- 300 psig (2068 kPa) waterbox, ASME certified
Marine bolt-on waterboxes for condenser, 150 psig (1034 kPa) with titanium clad tubesheets (available on condenser frame sizes 2 to 8 only)
Nozzle-in-head waterbox, 300 psig (2068 kPa)
Flanged evaporator and/or condenser waterbox nozzles
Waterbox hinges
Unit-mounted, low-voltage wye-delta or solid-state starters (Heat exchanger frames 1-7 only)
One, 2, or 3 pass evaporator or condenser waterside construction
Zinc anodes
BACnet® Communications
Refrigerant isolation valves
Shipped factory charged with refrigerant
Unit-mounted pumpout unit
Hot gas bypass
Unit-mounted refrigerant-cooled variable frequency drive
Thermal insulation (except waterbox covers)
Customer factory performance testing
Export crating
Discharge line sound reduction kit
Seismic Kit
Extended Warranty (North America only)
Service Contract

Field-Installed Accessories

BACnet® Carrier Translator
LonWorks® Carrier translator
Sensor package
Separate storage tank and pumpout unit
Stand-alone pumpout unit
Soleplate package
Spring isolator kit
Acoustical sound insulation kit
Freestanding Low Voltage Wye-Delta & Solid Starters
Freestanding Low Voltage Variable Frequency Drives
Freestanding Medium Voltage Variable Frequency Drives

Heat Exchanger Size†	Length with Nozzle-in-Head Waterbox				Width		Height **
	2-Pass*		1 or 3-Pass		Width		Height **
	ft-in.	mm	ft-in.	mm	ft-in.	mm	ft-in.	mm
10 to 12	11-4	3454	11-11	3632	5-2 7/8	1597	6-1 1/4	1861
15 to 17	13-7 1/2	4153	14-2 1/2	4331	5-2 7/8	1597	6-1 1/4	1861
20 to 22	11-4 3/4	3473	11-11 3/4	3651	5-6 7/8	1688	6-3 1/4	1911
30 to 32	13-8 1/4	4172	14-3 1/4	4350	5-6 7/16	1688	6-3 1/4	1911
35 to 37	15-4 3/4	4693	15-11 3/4	4870	5-6 7/16	1688	6-3 1/4	1911
40 to 42	14-3 1/8	4347	14-9	4496	6-3 1/8	1908	7-0 3/4	2153
45 to 47	15-8 5/8	4867	16-5 1/2	5017	6-3 1/8	1908	7-0 3/4	2153
50 to 54, 5K to 5R	14-4 1/2	4382	14-10	4521	6-6 1/2	1994	7-1	2159
5A to 5C	14-4 1/2	4382	14-10	4521	6-6 1/2	1994	7-1	2159
55 to 59, 5T to 5Z	16-1	4902	16-6 1/2	5042	6-6 1/2	1994	7-1	2159
5F to 5H	16-1	4902	16-6 1/2	5042	6-6 1/2	1994	7-1	2159
60 to 64, 6K to 6R	14-5 1/4	4401	14-11	4547	6-11 5/8	2124	7-4 7/8	2257
65 to 69, 6T to 6Z	16-1 3/4	4921	16-7 1/2	5067	6-11 5/8	2124	7-4 7/8	2257
70 to 74, 7K to 7R	16-6 1/8	5032	17-0 1/2	5194	8-1 1/4	2470	9-9 1/2	2985
75 to 79, 7T to 7Z	18-6 1/8	5642	19-0 1/2	5804	8-1 1/4	2470	9-9 1/2	2985
80 to 84, 8K to 8R	16-9 1/8	5109	17-3 1/2	5271	8-10 3/4	2711	9-11 1/4	3029
85 to 89, 8T to 8Z	18-9 1/8	5718	19-3 1/2	5880	8-10 3/4	2711	9-11 1/4	3029

*Assumes all customer connections are on the same end of the chiller.

**Height is for chiller without unit-mounted starter.

†Heat exchangers are rated for typical applications at AHRI Conditions (44F leaving chilled water and 2.4 gpm/ton in the evaporator, and 85F entering condenser water with 3.0 gpm/ton flow in the condenser).

19XR Dimensions - Two-Stage Compressor Frame Sizes 6 & 7 (Dished Head Waterbox)

Evaporator Heat Exchanger Size	Condenser Heat Exchanger Size	A (Length, Dished Head Waterbox)						19XR B Width		19XR C Height
		1-Pass		2-Pass		3-Pass		19XR B Width
		ft-in.	mm	ft-in.	mm	ft-in.	mm	ft-in.	mm
A4*	A4*	17-8	5385	17-6.75	5353	17-6.75	5353	10-3.13	3127	See Note 6
A6*	A6*	19-8	5994	19-6.75	5962	19-6.75	5962	10-3.13	3127
A4*	B4*	17-8	5385	17-7.38	5369	17-7.38	5369	10-8.5	3264
A6*	B6*	19-8	5994	19-7.38	5978	19-7.38	5978	10-8.5	3264
B6*	C6*	20-0	6096	19-11.18	6074	19-9	6120	12-0.63	3674
B8*	C8*	22-0	6096	21-1.18	6684	21-9	6629	12-5.5	3797
C6*	C6*	20-4.25	6204	19-11.18	6074	19-11.75	6090	12-5.5	3797
C6*	D6*	20-4.25	6204	20-0	6096	20-0.5	6109	13-2	4013
C8*	D8*	20	6096	21-11.125	6684	21-9	6629	13-2	4013

*Assumes both evaporator and condenser nozzles on same end of chiller.
6. 19XR heights can vary depending on the configuration. Check 19XR certified drawings for height information.
