WeatherExpert® Puron Advance™ Single-Packaged Rooftop Units with EcoBlue™ Technology 48WE
WeatherExpert® Puron Advance™ Single-Packaged Rooftop Units with EcoBlue™ Technology
48WE
Gas Heating / Electric Cooling
6 to 15 Nominal Tons – High Outdoor Air Capable

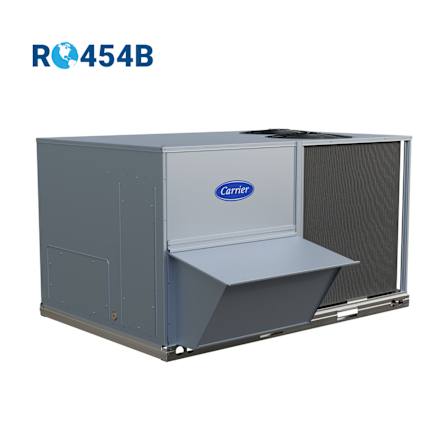

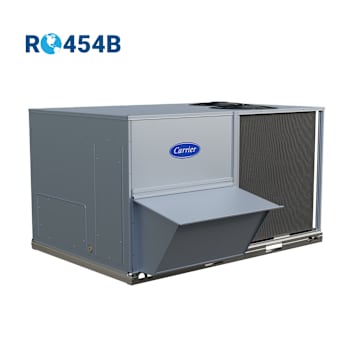

Carrier’s 48WE WeatherExpert® rooftops (RTU) with Puron Advance™ (R-454B) and EcoBlue™ Fan Technology, offer an environmentally sustainable solution for a brighter future. With a GWP of 466 and similar performance to R-410A, Puron Advance easily exceeds the EPA's new, stringent, <700 GWP refrigerant requirement. Our direct drive EcoBlue™ indoor fan system uses a Vane Axial fan and electronically commutated motor and all 48WE models are designed and configured for expanded envelope operation. 48WE models can operate as a single zone AC, multizone VAV unit, or with up to 100% outdoor air for ventilation or make-up air. All units include new options that enable 100% outdoor air operation including modulating low load protection valve to prevent refrigerant circuit issues, a double wall construction option, modulating hot gas reheat for dehumidification with supply air temperature control, and a 5:1 turndown modulating gas heat valve for a wide operating range. All units include Carrier SmartVu™ controls for control flexibility, ease of setup and commissioning, and simplified troubleshooting.
Performance Features
- Puron Advance (R-454B) refrigerant meets and exceeds EPA’s new Low GWP requirements
- New – UL 60335-2-40 Certified A2L leak detection and dissipation system factory installed standard
- Direct Drive EcoBlue™ Technology indoor fan system uses Vane Axial fan design & electronically commutated motor
- Three-stage cooling capacity control on all models
- Large face area hot gas reheat (HGRH) coil with modulating control valve for dehumidification operation
- Modulating heat operation with standard 5:1 turndown (natural gas) control
- IEER’s up to 20.5, EER’s up to 13.1
- Gas efficiencies up to 81%
- Cooling operating range up to 125 °F (52°C) and down to 40°F (4°C)
- Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard
- Exclusive IGC solid-state control for on-board diagnostics with LED error code designation and burner control logic
- Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
- Carrier SmartVu controls with 7” touchscreen display
- Single zone, multi-zone, 100% outdoor air, or multistage heat/cool thermostat operating modes
- Units meet ASHRAE 90.1 energy efficiency levels.
Maintenance Features
- Condensate overflow switch
- Hinged access panels with easy grip handles
- Innovative, easy starting, no-strip screw feature on unit access panels
- Two-inch disposable return air filters
- Tool-less filter access door
- New Vane Axial evaporator-fan system has no fan belts, pullies, blower shaft and blower bearings with slide out design
Installation Features
- Provisions for thru-the-bottom power entry capability as standard
- Single point gas and electric connections
- Full perimeter base rail with built-in rigging adapters and fork truck slots
Reliability Features
- A2L leak detection and dissipation system standard
- SmartVu™ controls with system monitoring and alarming
- Proven tandem scroll compressor design with internal line-overload protection
- 24-volt control circuit protected with resettable circuit breaker
- Direct drive supply fan
- Totally enclosed condenser motors with permanently lubricated bearings
- Low and high refrigerant pressure sensors
- Solid-state electronic direct spark ignition system
- Flame roll-out safety protector
- Liquid line filter drier
- Cooling and dehumidification lockouts based on outdoor air or entering coil air temperatures
Standard Limited Warranty
- 15-year heat exchanger – stainless steel
- 5-year compressor parts
- 3-year parts SmartVu™ Controller
- 1-year parts
- Additional extended warranty packages available
Factory-Installed Options
- High turndown (10:1) natural gas heat
- Return air CO2 sensor
- Return and/or supply air smoke detector
- High static supply fan motor
- Variable speed supply fan control based on duct static or space static pressure
- Corrosion resistant options for evaporator and condenser coils
- Ultra-low leak Integrated economizer system
- Powered or un-powered convenience outlet
- 4” filter track with 4” MERV 13 filters
- Non fused disconnect switch or HACR circuit breaker
- Double wall construction
- Knockdown roof curbs
- Field installed economizers
- Space temperature, humidity, and CO2 sensors
- Thermostats
Gas Heating/Electric Cooling Models (48WE)
| Nominal Cooling Ton Size | Cooling Stages | AHRI Efficiency IEER | Dimensions (in) LxWxH | Gas Heating Input Range (Btuh) | Approx Unit Weight (lbs) |
|---|---|---|---|---|---|
| 6 | 3 | 20.5 | 88x59x49 | 14-140 | 1059 |
| 7.5 | 3 | 20.5 | 116x63x57 | 16-160 | 1516 |
| 10 | 3 | 20.2 | 116x53x57 | 24-200 | 1596 |
| 15 | 3 | 18.8 | 141x86x57 | 30-300 | 2120 |
AHRI = Air-Conditioning, Heating & Refrigeration Institute
ASHRAE = American Society of Heating, Refrigerating and Air Conditioning, Inc.
IEER = Integrated Energy Efficiency Ratio
NOTES
1. Rated and certified under ARI Standard 340/360
2. Cooling Standard: 80°F (27°C) db, 67°F (19°C) wb indoor air temp and 95°F (35°C) db outdoor air temp.
3. 48WE units generally comply with ASHRAE 90.1-2010 Energy Standard. Please review size specific data for compliance.
4. 48WE units comply with US Energy Policy Act (2005).
Performance Features
- Puron Advance (R-454B) refrigerant meets and exceeds EPA’s new Low GWP requirements
- New – UL 60335-2-40 Certified A2L leak detection and dissipation system factory installed standard
- Direct Drive EcoBlue™ Technology indoor fan system uses Vane Axial fan design & electronically commutated motor
- Three-stage cooling capacity control on all models
- Large face area hot gas reheat (HGRH) coil with modulating control valve for dehumidification operation
- Modulating heat operation with standard 5:1 turndown (natural gas) control
- IEER’s up to 20.5, EER’s up to 13.1
- Gas efficiencies up to 81%
- Cooling operating range up to 125 °F (52°C) and down to 40°F (4°C)
- Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard
- Exclusive IGC solid-state control for on-board diagnostics with LED error code designation and burner control logic
- Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
- Carrier SmartVu controls with 7” touchscreen display
- Single zone, multi-zone, 100% outdoor air, or multistage heat/cool thermostat operating modes
- Units meet ASHRAE 90.1 energy efficiency levels.
Maintenance Features
- Condensate overflow switch
- Hinged access panels with easy grip handles
- Innovative, easy starting, no-strip screw feature on unit access panels
- Two-inch disposable return air filters
- Tool-less filter access door
- New Vane Axial evaporator-fan system has no fan belts, pullies, blower shaft and blower bearings with slide out design
Installation Features
- Provisions for thru-the-bottom power entry capability as standard
- Single point gas and electric connections
- Full perimeter base rail with built-in rigging adapters and fork truck slots
Reliability Features
- A2L leak detection and dissipation system standard
- SmartVu™ controls with system monitoring and alarming
- Proven tandem scroll compressor design with internal line-overload protection
- 24-volt control circuit protected with resettable circuit breaker
- Direct drive supply fan
- Totally enclosed condenser motors with permanently lubricated bearings
- Low and high refrigerant pressure sensors
- Solid-state electronic direct spark ignition system
- Flame roll-out safety protector
- Liquid line filter drier
- Cooling and dehumidification lockouts based on outdoor air or entering coil air temperatures
Standard Limited Warranty
- 15-year heat exchanger – stainless steel
- 5-year compressor parts
- 3-year parts SmartVu™ Controller
- 1-year parts
- Additional extended warranty packages available
Factory-Installed Options
- High turndown (10:1) natural gas heat
- Return air CO2 sensor
- Return and/or supply air smoke detector
- High static supply fan motor
- Variable speed supply fan control based on duct static or space static pressure
- Corrosion resistant options for evaporator and condenser coils
- Ultra-low leak Integrated economizer system
- Powered or un-powered convenience outlet
- 4” filter track with 4” MERV 13 filters
- Non fused disconnect switch or HACR circuit breaker
- Double wall construction
- Knockdown roof curbs
- Field installed economizers
- Space temperature, humidity, and CO2 sensors
- Thermostats
Gas Heating/Electric Cooling Models (48WE)
| Nominal Cooling Ton Size | Cooling Stages | AHRI Efficiency IEER | Dimensions (in) LxWxH | Gas Heating Input Range (Btuh) | Approx Unit Weight (lbs) |
|---|---|---|---|---|---|
| 6 | 3 | 20.5 | 88x59x49 | 14-140 | 1059 |
| 7.5 | 3 | 20.5 | 116x63x57 | 16-160 | 1516 |
| 10 | 3 | 20.2 | 116x53x57 | 24-200 | 1596 |
| 15 | 3 | 18.8 | 141x86x57 | 30-300 | 2120 |
AHRI = Air-Conditioning, Heating & Refrigeration Institute
ASHRAE = American Society of Heating, Refrigerating and Air Conditioning, Inc.
IEER = Integrated Energy Efficiency Ratio
NOTES
1. Rated and certified under ARI Standard 340/360
2. Cooling Standard: 80°F (27°C) db, 67°F (19°C) wb indoor air temp and 95°F (35°C) db outdoor air temp.
3. 48WE units generally comply with ASHRAE 90.1-2010 Energy Standard. Please review size specific data for compliance.
4. 48WE units comply with US Energy Policy Act (2005).
