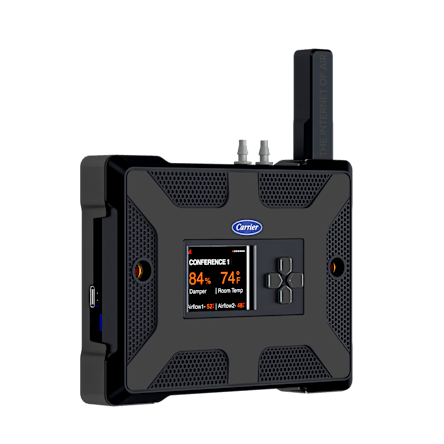

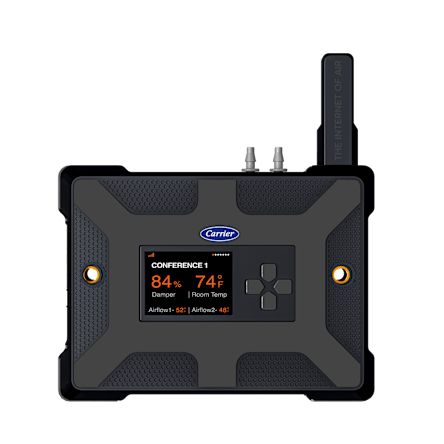

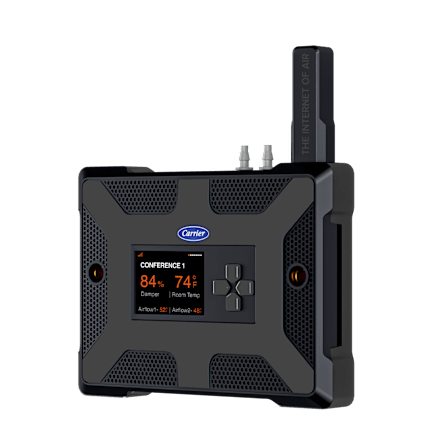

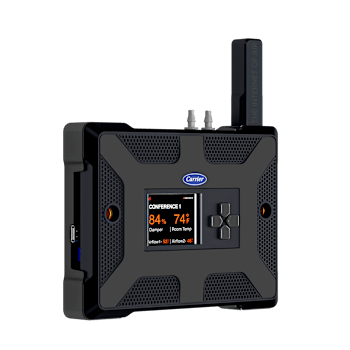

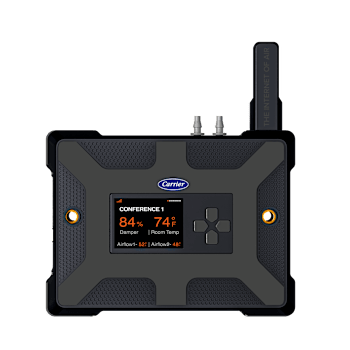

ClimaVision Smart Node 2.0
7C-SN-C3X-X

Flexible controller for individual VVT or VAV zone damper control or by-pass damper control

7C-SN-C3X-X | 7C-SN-C8X-X (with DPS)

The Smart Node is a revolutionary terminal box controller for individual zone control with flexible software-defined configurations that can control a range of equipment across multiple ClimaVision applications. These include VAV and VVT terminal box control, bypass damper, and economizer control.

Made to simplify installation:

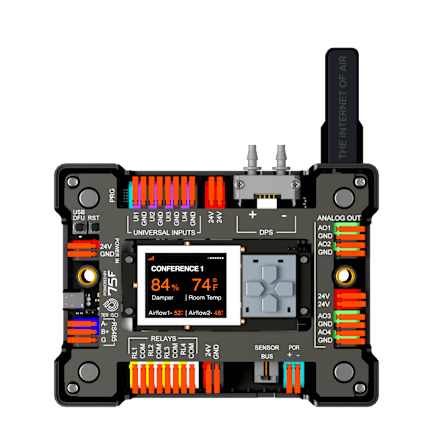

  • A magnetic cover makes access easy to wiring I/O
  • Level-style terminals make wiring easy and accommodates solid or stranded wire
  • Terminals and Communication ports clearly labeled

And increase flexibility:

  • PoR (Power over RS485) port for connection to sensors offering communication and power over 2 wires
  • (4) Universal inputs (more flexible)
  • (4) Analog outputs (v1.0 had only 2)
  • (4) Relays (v1.0 had only 2)
  • Built-inDPS(on part 7C-SN-C8X-X)
  • The Smart Node was designed and built to control equipment with zero programming required.
  • An onboard display with large user navigation buttons enables field verification and adjusting without external devices such as voltmeters and laptops.
  • Updates can be pushed from the cloud to include firmware updates and profiles (i.e. pre-written sequences of operation).
  • Secure wireless mesh network. The Smart Node takes advantage of ClimaVision’s secure and encrypted 900 MHz mesh network to communicate data to the Central Control Unit.

Multi-Zone Air Distribution Systems: VVT Zone Control • VAV Zone Control • Bypass Damper Control • Economizer Damper Control

Single-Stage Equipment: Exhaust Fans • Unit Heaters • Pumps • Single-Stage Cooling
