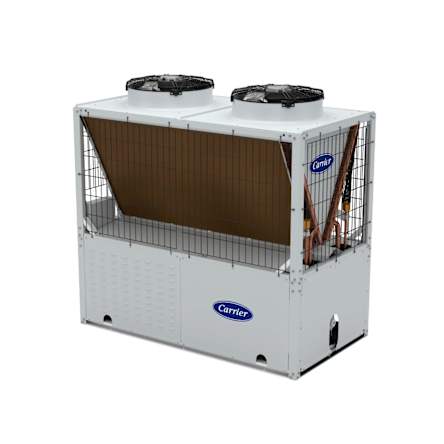

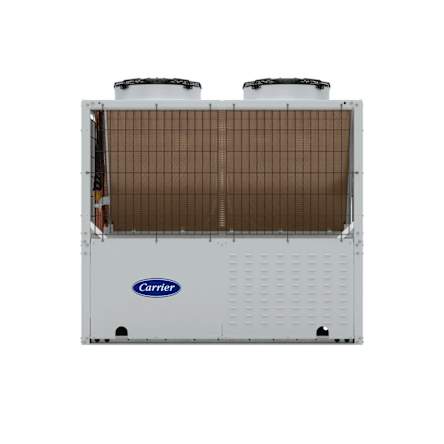

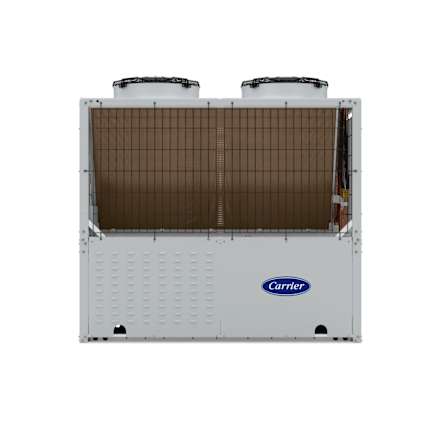

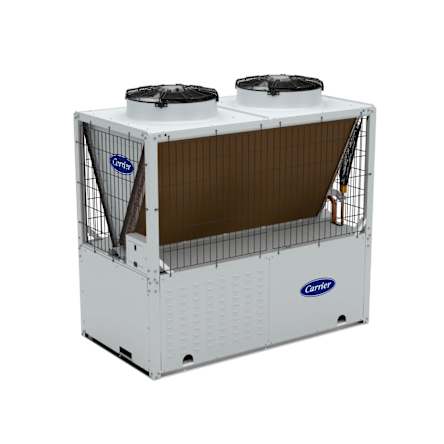

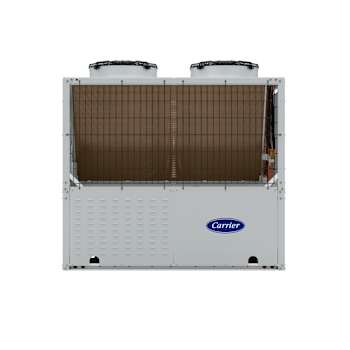

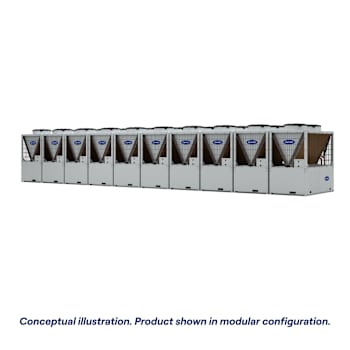

AquaSnap® Modular Air-Sourced Reversible Heat Pump
30RQM

Air-to-Water Modular Heat Pump

Cooling Range: 20 – 320 Tons (70 – 1,125 kW) 20 Tons Per Module

Heating Range: 263 – 4,222 MBH (77 – 1,237 kW) 263 MBH Per Module

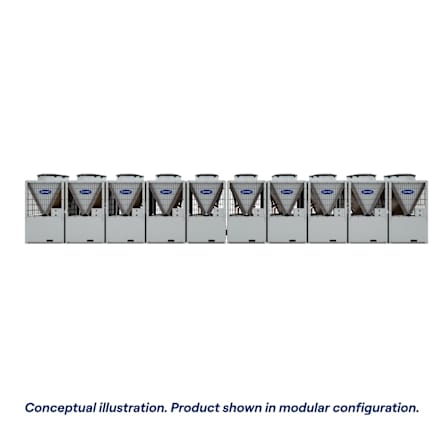

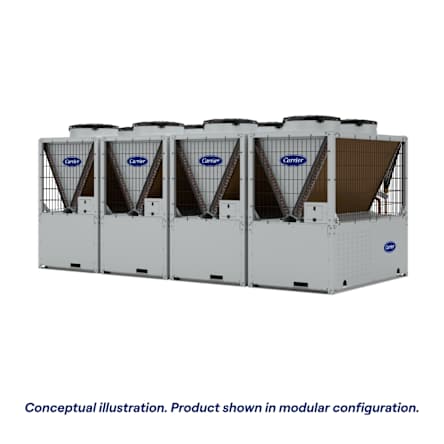

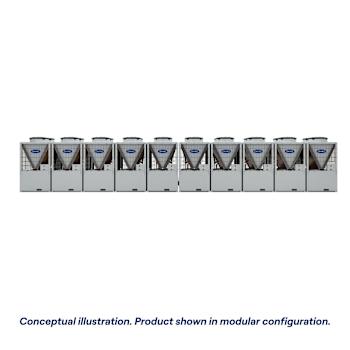

The AquaSnap 30RQM is a high-efficiency reversible heat pump with a compact, expandable design and smart controls that make it simple to manage. It’s designed to perform reliably at low ambient temperatures while reducing environmental impact. And best of all, its modular design means you can make it yours with configurations and options to meet your unique needs.


aquasnap-blue-red
carrier-AHRI-550-590-551-591_Air-Cooled_Chiller
carrier-ASHRAE-90-1-certification
carrier-intertek-ETL-listed-C-US

Performance Features

  • ASHRAE 90.1-2022 complaint / AHRI Certified (Cooling)
  • Variable-speed twin rotary compressor with sound blanket
  • High efficiency variable speed fans / Low sound levels
  • Heating Operation from -16 °F to 109 °F ambient conditions
  • Cooling Operation from 32 °F to 118 °F ambient conditions
  • Aluminum-copper coils with epoxy coating
  • Robust brazed-plate heat exchanger
  • Compact unit design
  • Graphic display with BACnet™ IP/MSTP
  • Economizer for wide operating range

Reliability Features

  • Liquid receiver
  • Suction accumulator
  • Aluminum copper coils with high corrosion coating
  • ETL (and ETL Canada) listed
  • Galvanized steel frame
  • Independent EXV (electronic expansion valve) for heating and cooling circuits
  • Hot gas bypass valve
  • Crankcase and BPHE heater
  • Water strainer (20 mesh) – factory supplied
  • Security grills

Maintenance Features

  • Diagnostic functions available through SmartVu™ Controls with PIC6.1 Interface
  • Permanently lubricated fan motor bearings
  • Aluminum Copper coils with epoxy coating for corrosion resistance
  • Six (6) refrigerant service ports

Installation Features

  • Factory charged with R-454B refrigerant
  • Integral control transformer
  • Factory installed flow switch
  • Galvanized steel frame
  • Flexible handling options (for forklift or rigging)

Factory-Installed Options

  • Step-down transformer (to 230V)

Field-Installed Accessories

  • 575V transformer
