Toshiba Carrier e-Series Heat Pump Unit
MMYH

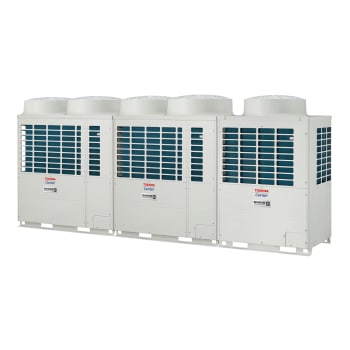

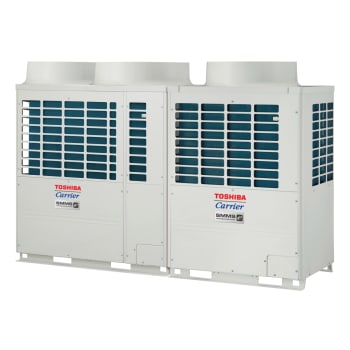

Single, Dual or Triple Module Heat Pump System

72,000 to 456,000 Btuh
6.0 to 38.0 Tons

The Toshiba Carrier VRF System is a combination of an outdoor unit with multiple style indoor units connected by refrigerant piping and wiring. The outdoor units can be used in single, dual or triple modules.


carrier-AHRI-1230-vrf-multi-split
carrier-super-modular-multi
carrier-intertek-ETL-listed-C-US

Product Features

  • Available in 6, 8, 10, 12 and 14-ton single module which can be combined up to 38-tons capacity
  • Ability to connect up to 64 indoor units to triple module outdoor unit
  • 2-pipe heat pump system
  • High performance outdoor units with all Inverter driven twin rotary compressor
  • DC Inverter condenser fan motor
  • 208/230-3-60Hz or 460-3-60Hz voltage
  • Cooling ambient operating temperature is 14° F to 122° F and heating ambient operating temperature is -13° F to 60° F
  • Connected capacity is up to 150%
  • 9% smaller footprint with space saving models available in selected sizes

Reliability Features

  • All equipment wiring complies with NEC requirements
  • Unit constructed in accordance with ETL requirements
  • Unit performance is in accordance with AHRI 1230 standards
  • Compressor and condenser fan motors are inverter driven
  • Finned tube heat exchanger
  • Suitable for R-410a refrigerant

Installation Features

  • Indoor units can be connected using Y-branch joints and branch headers
  • Factory-provided controls
  • Individual power connection for each module
  • Outdoor units are connected using twinning kits provided from factory

Effective 8/1/24, the warranty for our VRF equipment will include an opportunity for a 10-year parts and compressor limited warranty. If not registered within 90 days, the warranty will be a 5-year parts and 7-year compressor limited warranty.1

See warranty certificate for details.

1Except for residential applications in California and Quebec and other jurisdictions that prohibit warranty benefits conditioned on registration.
