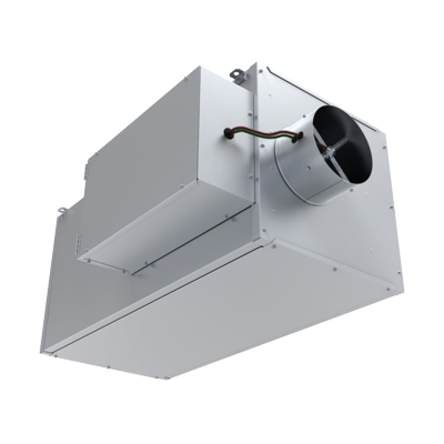

AXIS™ Quiet Series Fan-Powered Terminal 45F
AXIS™ Quiet Series Fan-Powered Terminal
45F
Up to 3,660 Cfm (Primary & Fan Airflow)
The 45F fan-powered units provide a combination of primary air cooling or plenum induction and reheat to meet most application needs at the lowest possible sound levels.
Performance Features
- Fan airflow capacities from 205 to 3660 CFM
- Primary airflow capacities from 52 to 3660 CFM
- ECM (electronically commutated motor) motors
- Ultra quiet operation for critical sound applications
- Round inlet sizes from 6 in. through 16 in. diameter
- 20 gauge, galvanized steel casing construction
- Suitable for low, medium, or high pressure applications
- Linear, multiple-point, averaging velocity sensor with an amplified signal
- Damper blade has a flexible gasket for tight airflow shutoff
- Damper blade operates over a full 90 degrees
- All damper assemblies utilize a solid ½ in. shaft that rotates in self-lubricating Delrin® bearings
- Pressure independent controls, including Carrier TruVu (Dual IP Zone Controller) and Carrier i-Vu Open (BACnet)
- Electric or hot water reheat coils
- Multiple casing liners available
- Electric heat (1 to 3 stages) or proportional (SSR) heat
- Standard unit casing lined with 1 in. thick, 1-1/2 lb dual density fiberglass insulation that meets UL 181 and NFPA 90A
- Certified performance in accordance with AHRI Standard 880
Reliability Features
- 20 gauge, galvanized steel heaters are ETL listed in accordance with UL standards
- Heaters equipped with:
- Primary automatic and secondary manual reset thermal cutout
- Deenergizing magnetic contactors
- Airflow proving switch
- 80/20 Ni-Cr elements
- Strong integral panel/post construction for product durability
Maintenance Features
- NEMA 2 steel control enclosure for electric or electronic components
- Removable bottom access panel for easy accessibility during routine inspections and maintenance
- Label information adhered to each unit includes model, size, airflow (cfm), balancing chart, and tagging data
Installation Features
- Rectangular discharge with slip and drive connections provides quick and easy connection to downstream ductwork
- Compact unit casing accommodates installation in reduced ceiling plenum space
- Factory-installed controls
- All round collars accommodate standard spiral and flex duct sizes
- Balancing taps provided for easy airflow verification
- Single point electrical connection
Standard Warranty
- One-year parts
Factory-Installed Options
- Control options:
- Carrier TruVu VAV Controls
- Carrier i-Vu Open VAV Controls
- No controls or field-supplied DDC (direct digital controls) third party controls
- Left-hand or right-hand control enclosure (dust-tight)
- Hanger brackets
- Control box configurations
- 90 degrees
- Bottom facing
- Remote mounted
- Hot water coils (1 to 4 rows), 10 & 12 fins per inch
- Liner options:
- 1 in. thick, dual density fiberglass
- 1/2 in. thick, dual density fiberglass
- Cellular
- Steriliner (foil-faced duct board)
- Sterilwall (double wall)
- Foil encapsulated fiberglass
- Perforated double wall
- Vent and drain on water coils
- Electric heat (1 to 3 stages)
- Proportional SSR (solid-state relays) electric heat
- Electric heater options:
- Fused door interlocking disconnect switch
- Non-fused door interlocking disconnect switch
- Fuse block with fuses for primary overload protection
- Dust-tight construction
- Motor fusing
- Recirculated MERV 8 and 13 air filters
Field-Installed Accessories
- Remote wall sensor
- Supply-air temperature sensor
- CO2 sensor
Performance Features
- Fan airflow capacities from 205 to 3660 CFM
- Primary airflow capacities from 52 to 3660 CFM
- ECM (electronically commutated motor) motors
- Ultra quiet operation for critical sound applications
- Round inlet sizes from 6 in. through 16 in. diameter
- 20 gauge, galvanized steel casing construction
- Suitable for low, medium, or high pressure applications
- Linear, multiple-point, averaging velocity sensor with an amplified signal
- Damper blade has a flexible gasket for tight airflow shutoff
- Damper blade operates over a full 90 degrees
- All damper assemblies utilize a solid ½ in. shaft that rotates in self-lubricating Delrin® bearings
- Pressure independent controls, including Carrier TruVu (Dual IP Zone Controller) and Carrier i-Vu Open (BACnet)
- Electric or hot water reheat coils
- Multiple casing liners available
- Electric heat (1 to 3 stages) or proportional (SSR) heat
- Standard unit casing lined with 1 in. thick, 1-1/2 lb dual density fiberglass insulation that meets UL 181 and NFPA 90A
- Certified performance in accordance with AHRI Standard 880
Reliability Features
- 20 gauge, galvanized steel heaters are ETL listed in accordance with UL standards
- Heaters equipped with:
- Primary automatic and secondary manual reset thermal cutout
- Deenergizing magnetic contactors
- Airflow proving switch
- 80/20 Ni-Cr elements
- Strong integral panel/post construction for product durability
Maintenance Features
- NEMA 2 steel control enclosure for electric or electronic components
- Removable bottom access panel for easy accessibility during routine inspections and maintenance
- Label information adhered to each unit includes model, size, airflow (cfm), balancing chart, and tagging data
Installation Features
- Rectangular discharge with slip and drive connections provides quick and easy connection to downstream ductwork
- Compact unit casing accommodates installation in reduced ceiling plenum space
- Factory-installed controls
- All round collars accommodate standard spiral and flex duct sizes
- Balancing taps provided for easy airflow verification
- Single point electrical connection
Standard Warranty
- One-year parts
Factory-Installed Options
- Control options:
- Carrier TruVu VAV Controls
- Carrier i-Vu Open VAV Controls
- No controls or field-supplied DDC (direct digital controls) third party controls
- Left-hand or right-hand control enclosure (dust-tight)
- Hanger brackets
- Control box configurations
- 90 degrees
- Bottom facing
- Remote mounted
- Hot water coils (1 to 4 rows), 10 & 12 fins per inch
- Liner options:
- 1 in. thick, dual density fiberglass
- 1/2 in. thick, dual density fiberglass
- Cellular
- Steriliner (foil-faced duct board)
- Sterilwall (double wall)
- Foil encapsulated fiberglass
- Perforated double wall
- Vent and drain on water coils
- Electric heat (1 to 3 stages)
- Proportional SSR (solid-state relays) electric heat
- Electric heater options:
- Fused door interlocking disconnect switch
- Non-fused door interlocking disconnect switch
- Fuse block with fuses for primary overload protection
- Dust-tight construction
- Motor fusing
- Recirculated MERV 8 and 13 air filters
Field-Installed Accessories
- Remote wall sensor
- Supply-air temperature sensor
- CO2 sensor
