ZS Plus
ZS2PL-CAR

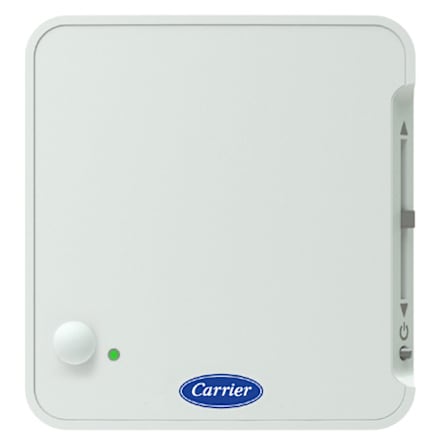

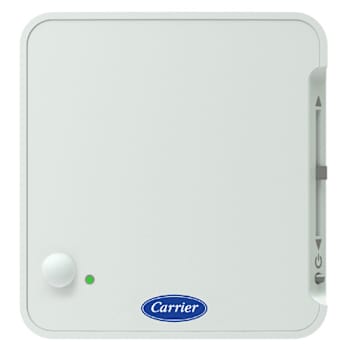

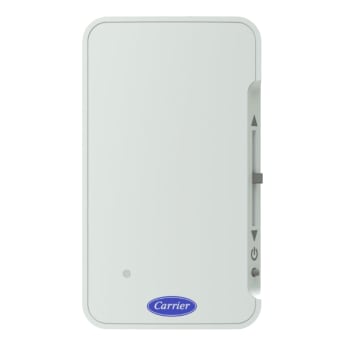

Temperature, CO2, Humidity, and VOC Sensor with Occupancy Status, Occupancy Override, and Setpoint Adjust
Carrier’s line of intelligent ZS space sensors provide the function and flexibility you need to manage the conditions important to the comfort, productivity, and sustainability of your building.
The ZS sensors are available in a variety of zone sensing combinations to address your application needs. These combinations include temperature, relative humidity, and indoor air quality (carbon dioxide and volatile organic compounds (VOCs).
Designed to work with i-Vu controllers and the i-Vu Building Automation System, the ZS sensor line includes the ZS Standard, ZS Plus, ZS Pro, ZS Pro-M, and ZS Pro-F.
ZS Standard | ZS Plus | ZS Pro | ZS Pro-M | ZS Pro-F | |
Model Number | ZS-CAR | ZSPL-CAR | ZSP-CAR | ZS P-M-CAR | ZSPF-CAR |
Temp, CO2, humidity options | • | check | • | • | • |
VOC options | • | check | • | • | |
Neutral color | • | check | • | • | • |
Motion-sensing option | check | • | |||
Addressable/ supports daisy-chaining | • | check | • | • | • |
Hidden communication port | • | check | • | • | • |
Mounts on a standard 2" x 4" electrical box | • | check | • | • | • |
Occupancy status indicator | check | • | • | • | |
Push-button occupancy override | check | • | • | • | |
Setpoint adjust | check | • | • | • | |
Large, easy-to-read LCD | • | • | • | ||
Alarm indicator | • | • | • | ||
Fan speed control | • | ||||
Cooling / Heating / Fan Only - mode control | • | ||||
°F to °C conversion button | • |
Option | Part Number | ||||
ZS Standard | ZS Plus | ZS Pro | ZS Pro-M | ZS Pro-F | |
Temperature Only | ZS2-CAR | ZS2PL-CAR | ZS2P-CAR | ZS2P-M-CAR | ZS2PF-CAR |
Temp w/CO2 | ZS2-C-CAR | ZS2PL-C-CAR | ZS2P-C-CAR | ZS2P-CM-CAR | ZS2PF-C-CAR |
Temp with Humidity | ZS2-H-CAR | ZS2PL-H-CAR | ZS2P-H-CAR | ZS2P-HM-CAR | ZS2PF-H-CAR |
Temp, Humidity, CO2 | ZS2-HC-CAR | ZS2PL-HC-CAR | ZS2P-HC-CAR | ZS2P-HCM-CAR | ZS2PF-HC-CAR |
Temp with VOC | ZS2-V-BNK | ZS2PL-V-BNK | |||
Temp, Humidity, VOC | ZS2-HV-BNK | ZS2PL-HV-CAR |
Sensing Element | Range | Accuracy |
» Temperature w/any Option (excl. humidity) | -4° to 122° F (-20° C to 50° C) | ±0.35° F (0.2° C) |
» Temp w/Humidity + any Option | 50° F to 104° F (10° C to 40° C) | ±0.5° F (0.3° C) |
» Humidity | 20% to 80% | ±1.8% typical |
» CO2 | 400 to 1250 PPM
1250 to 2000 PPM |
±30PPM or +/-3% of reading (greater of two)
±5% of reading plus 30 PPM |
» VOC | 0 to 2,000 PPM | ±100 PPM |
Power Requirements | Sensor Type | Power Required |
» Temperature Only | All Models | 12 Vdc @ 8 mA |
» Temperature with Humidity | ||
» Temp w/VOC or Temp/VOC/Humidity | All Models | 12 Vdc @ 60 mA |
» Temp w/CO2 or Temp/CO2/Humidity | All Models | 12 Vdc @ 15 mA (idle) to 190 mA
(CO2 measurement cycle) |
Power Supply | A controller supplies the Rnet sensor network with 12 Vdc @ 210 mA. Additional power may be required for your application. See sensor power requirements above. | |
Communication | 115 kbps Rnet connection between sensor(s) and controller 15 sensors max per Rnet network; 5 sensors max per control program | |
Local access port | For connecting a laptop computer to the local equipment or i-Vu® network for maintenance and commissioning | |
Motion sensing | Sensor Type: passive infrared (PIR)
Distance:16.4 ft. (5 m) Detection range: (HxV) 100° x 82° Movement speed: 2.62 to 3.94 ft/s (0.8 to 1.2 m/s) Detection object: 27.56 x 9.84 in. (700 x 250 mm) |
|
Environmental operating range | 32° to 122° F (0° - 50° C), 10% to 90% relative humidity, non-condensing | |
Mounting dimensions | Standard 4”x 2” electrical box using provided 6/32” x 1/2” mounting screws | |
Overall Dimensions | ||
» Temperature Sensor or Temperature with Humidity Sensor | Width: 3” (7.62 cm)
Height: 4-13/16” (12.22 cm) Depth: 13/16” (2.01 cm) |
|
» Sensor with C02 or VOC | Width:2-7/8” (7.3 cm)
Height: 4-13/16” (12.22 cm) Depth: 1-1/4” (3.18cm) |
ZS Standard | ZS Plus | ZS Pro | ZS Pro-M | ZS Pro-F | |
Model Number | ZS-CAR | ZSPL-CAR | ZSP-CAR | ZS P-M-CAR | ZSPF-CAR |
Temp, CO2, humidity options | • | check | • | • | • |
VOC options | • | check | • | • | |
Neutral color | • | check | • | • | • |
Motion-sensing option | check | • | |||
Addressable/ supports daisy-chaining | • | check | • | • | • |
Hidden communication port | • | check | • | • | • |
Mounts on a standard 2" x 4" electrical box | • | check | • | • | • |
Occupancy status indicator | check | • | • | • | |
Push-button occupancy override | check | • | • | • | |
Setpoint adjust | check | • | • | • | |
Large, easy-to-read LCD | • | • | • | ||
Alarm indicator | • | • | • | ||
Fan speed control | • | ||||
Cooling / Heating / Fan Only - mode control | • | ||||
°F to °C conversion button | • |
Option | Part Number | ||||
ZS Standard | ZS Plus | ZS Pro | ZS Pro-M | ZS Pro-F | |
Temperature Only | ZS2-CAR | ZS2PL-CAR | ZS2P-CAR | ZS2P-M-CAR | ZS2PF-CAR |
Temp w/CO2 | ZS2-C-CAR | ZS2PL-C-CAR | ZS2P-C-CAR | ZS2P-CM-CAR | ZS2PF-C-CAR |
Temp with Humidity | ZS2-H-CAR | ZS2PL-H-CAR | ZS2P-H-CAR | ZS2P-HM-CAR | ZS2PF-H-CAR |
Temp, Humidity, CO2 | ZS2-HC-CAR | ZS2PL-HC-CAR | ZS2P-HC-CAR | ZS2P-HCM-CAR | ZS2PF-HC-CAR |
Temp with VOC | ZS2-V-BNK | ZS2PL-V-BNK | |||
Temp, Humidity, VOC | ZS2-HV-BNK | ZS2PL-HV-CAR |
Sensing Element | Range | Accuracy |
» Temperature w/any Option (excl. humidity) | -4° to 122° F (-20° C to 50° C) | ±0.35° F (0.2° C) |
» Temp w/Humidity + any Option | 50° F to 104° F (10° C to 40° C) | ±0.5° F (0.3° C) |
» Humidity | 20% to 80% | ±1.8% typical |
» CO2 | 400 to 1250 PPM
1250 to 2000 PPM |
±30PPM or +/-3% of reading (greater of two)
±5% of reading plus 30 PPM |
» VOC | 0 to 2,000 PPM | ±100 PPM |
Power Requirements | Sensor Type | Power Required |
» Temperature Only | All Models | 12 Vdc @ 8 mA |
» Temperature with Humidity | ||
» Temp w/VOC or Temp/VOC/Humidity | All Models | 12 Vdc @ 60 mA |
» Temp w/CO2 or Temp/CO2/Humidity | All Models | 12 Vdc @ 15 mA (idle) to 190 mA
(CO2 measurement cycle) |
Power Supply | A controller supplies the Rnet sensor network with 12 Vdc @ 210 mA. Additional power may be required for your application. See sensor power requirements above. | |
Communication | 115 kbps Rnet connection between sensor(s) and controller 15 sensors max per Rnet network; 5 sensors max per control program | |
Local access port | For connecting a laptop computer to the local equipment or i-Vu® network for maintenance and commissioning | |
Motion sensing | Sensor Type: passive infrared (PIR)
Distance:16.4 ft. (5 m) Detection range: (HxV) 100° x 82° Movement speed: 2.62 to 3.94 ft/s (0.8 to 1.2 m/s) Detection object: 27.56 x 9.84 in. (700 x 250 mm) |
|
Environmental operating range | 32° to 122° F (0° - 50° C), 10% to 90% relative humidity, non-condensing | |
Mounting dimensions | Standard 4”x 2” electrical box using provided 6/32” x 1/2” mounting screws | |
Overall Dimensions | ||
» Temperature Sensor or Temperature with Humidity Sensor | Width: 3” (7.62 cm)
Height: 4-13/16” (12.22 cm) Depth: 13/16” (2.01 cm) |
|
» Sensor with C02 or VOC | Width:2-7/8” (7.3 cm)
Height: 4-13/16” (12.22 cm) Depth: 1-1/4” (3.18cm) |
