Seismic Requirements



Meeting Seismic Requirements with Carrier Chillers

Previously, manufacturers would provide calculations as proof that equipment would maintain operation after a seismic event. Now, equipment must be tested on a “shaker table” in a lab.

What Agency or Code Regulates This Testing?

ICC Evaluation Service, Inc., a non-profit organization has developed a test plan known as AC156 – Acceptance Criteria for Special Seismic Qualification by Shaker Table Testing of Nonstructural Components & System -- which is acceptable to IBC, UBC and other local building code governing agencies

Carrier’s water-cooled chillers (19XR(V), 23XRV, 30XW, 30HX and 30MP), air-cooled chillers (30XA, 30RB, 30RAP) and split-systems (38AP/09DP) are special seismic compliant.

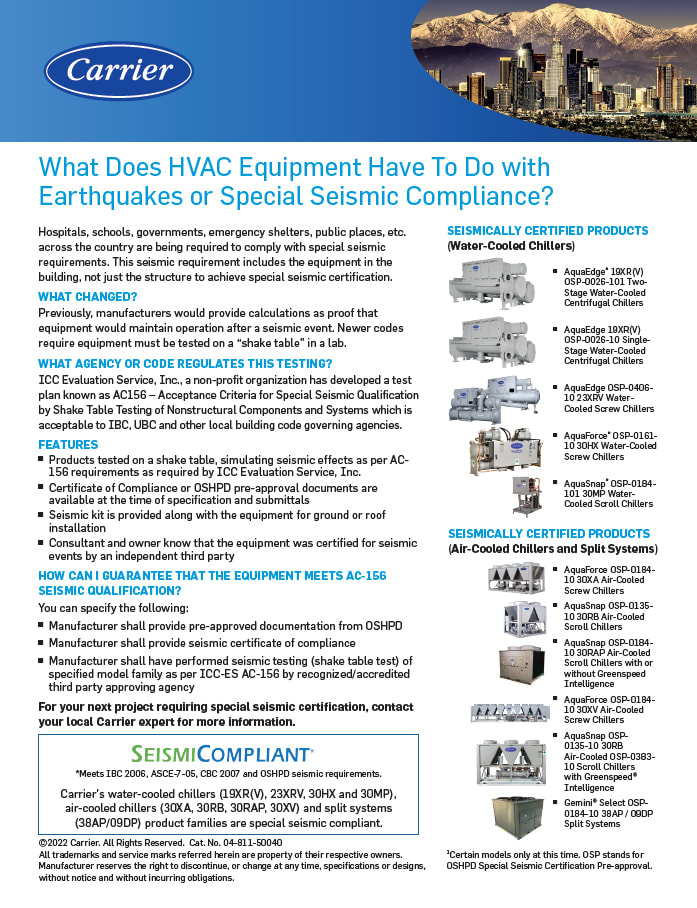

Seismic Compliance Information Sheet

Water-Cooled Chillers†

MODEL 19XR/V‡ 23XRV 30XW* 30HX 30MP
Size XR 2-5, E,6-7
HX Fr 3-8, A-D
HX Fr A-5 150-400 076-271 015-045
Nominal
Tons
200-3000 175-550 150-400 70-265 15-45
Testing
Method
Shaker
Table
Shaker
Table
Shaker
Table
Shaker
Table
Shaker
Table
Max Sds HX Fr 3-8 = 2.1/2.42g
HX Fr A-D = 2.64/1.64g
2.00g 1.93g 2.5g 1.81g
Mounting
Details
Hard Mount Rigid Base (Fr 5)
Hard Mount (Fr A-4)
Springs/
Isolators
Hard Mount Hard Mount
IBC Approval
OSHPD # OSP-0026-10 OSP-0406-10 N/A OSP-0161-10 OSP-0184-10
OSHPD
Expiration Date
12/31/2019 12/31/2022 12/31/2012 12/31/2022 12/31/2019

* 30XW is not OSHPD certified.
‡ Freestanding starters and drives are not seismically certified under Carrier OSHPD certification.


Air-Cooled Chillers†

MODEL 30RB 30RB
w/Greenspeed®
Intelligence
30XA 30XA
w/Greenspeed®
Intelligence
30RAP 38AP / 09DP
Size 060-390 080-390 080-501 140-350 010-150 025-130
Nominal
Tons
60-390 80-390 080-501 140-350 10-150 25-130
Testing
Method
Shaker
Table
Shaker
Table
Shaker
Table
Shaker
Table
Shaker
Table
Shaker
Table
Max Sds 2.00g 2.00g 2.40g 2.4g 2.5 g 10-60
2.10 g 70-150
2.5 g 18-60
2.10 g 65-130
Mounting
Details
Hard Mount Hard Mount Hard Mount Hard Mount Hard Mount Hard Mount
IBC Approval
OSHPD # OSP-0135-10 OSP-0135-10
OSP-0383-10
OSP-184-10 OSP-184-10 OSP-184-10 OSP-184-10
OSHPD
Expiration Date
12/31/2022 12/31/2019 12/31/2019 12/31/2019 12/31/2019 12/31/2019

† Some models and options are not certified, please consult Building & Industrial Systems marketing for more details.
