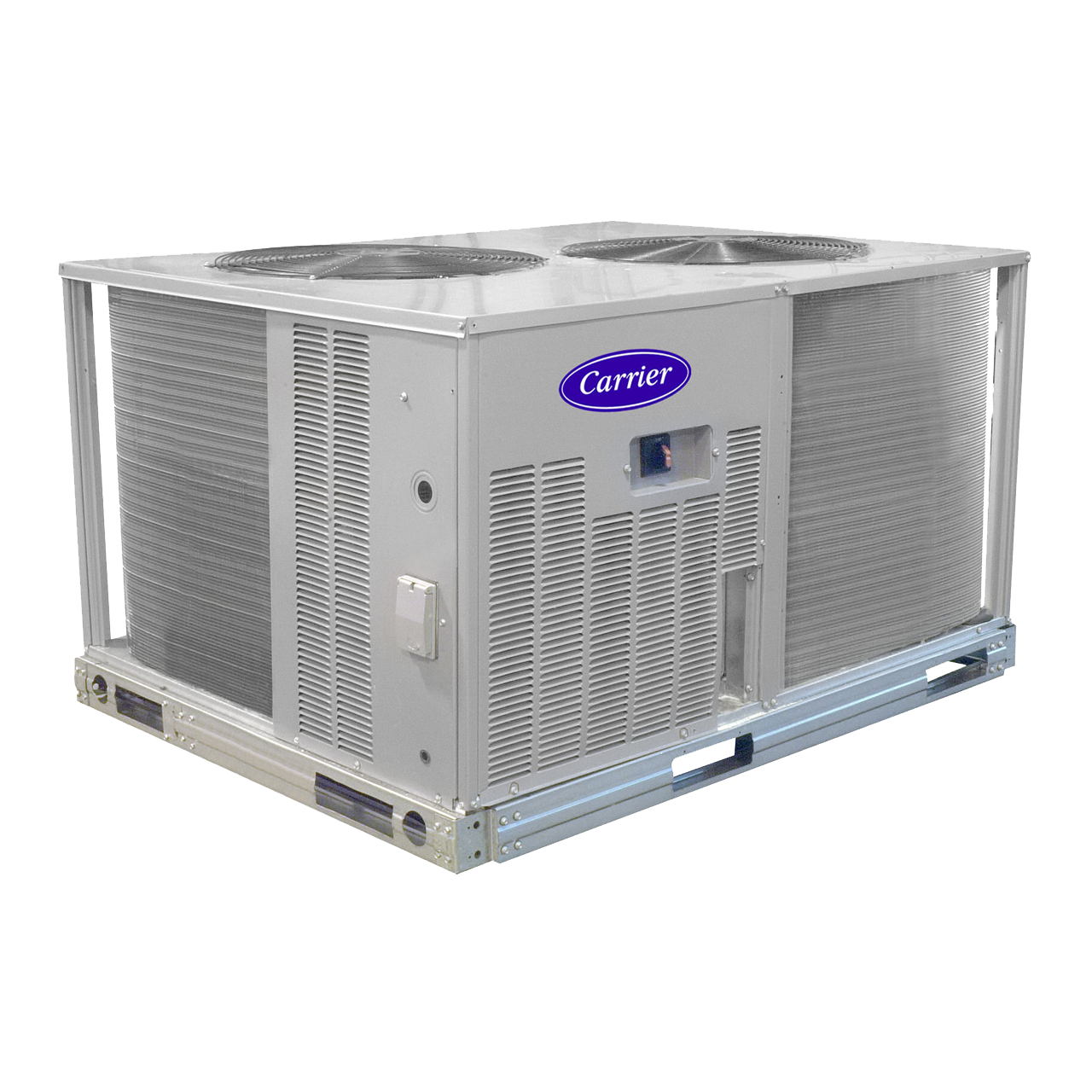

The Gemini® Two-Stage Commercial Split System sets a new standard in commercial HVAC solutions. Paired with the Carrier 40RU series indoor air handlers, this system offers energy-efficient cooling, precise climate control and exceptional reliability. Featuring Puron® refrigerant and meeting ASHRAE 90.1 efficiency compliance, the 38AUD ensures sustainable indoor air quality. With its innovative two-stage cooling, high EER ratings and durable construction, this system delivers dependable, energy-saving performance, whether installed on rooftops or on the ground.
- AHRI 340/360
- UL Listed
- ETL Listed
- ASHRAE 90.1
Features
Enhanced safety features include high- and low-pressure switches and anti-short cycling protection and overload protection for compressors. Also capable of enduring challenging environments with durable prepainted, galvanized steel cabinets.
Comfort Alert™ diagnostic board streamlines troubleshooting. If service is needed, it can be done quickly with the easy-access panel and no-strip screws. Powered and non-powered convenience outlets also help simplify maintenance tasks.
Setup is simplified with a single-piece design for both rooftop and ground installations. Transportation and rigging is also easier with convenient forklift slots and lifting holes. Product is also shipped with Puron® refrigerant for environmental compliance.
Experience advanced HVAC solutions with Gemini® 38AUD split system for energy-efficient cooling, improved air quality and reliable performance for seamless integration.
