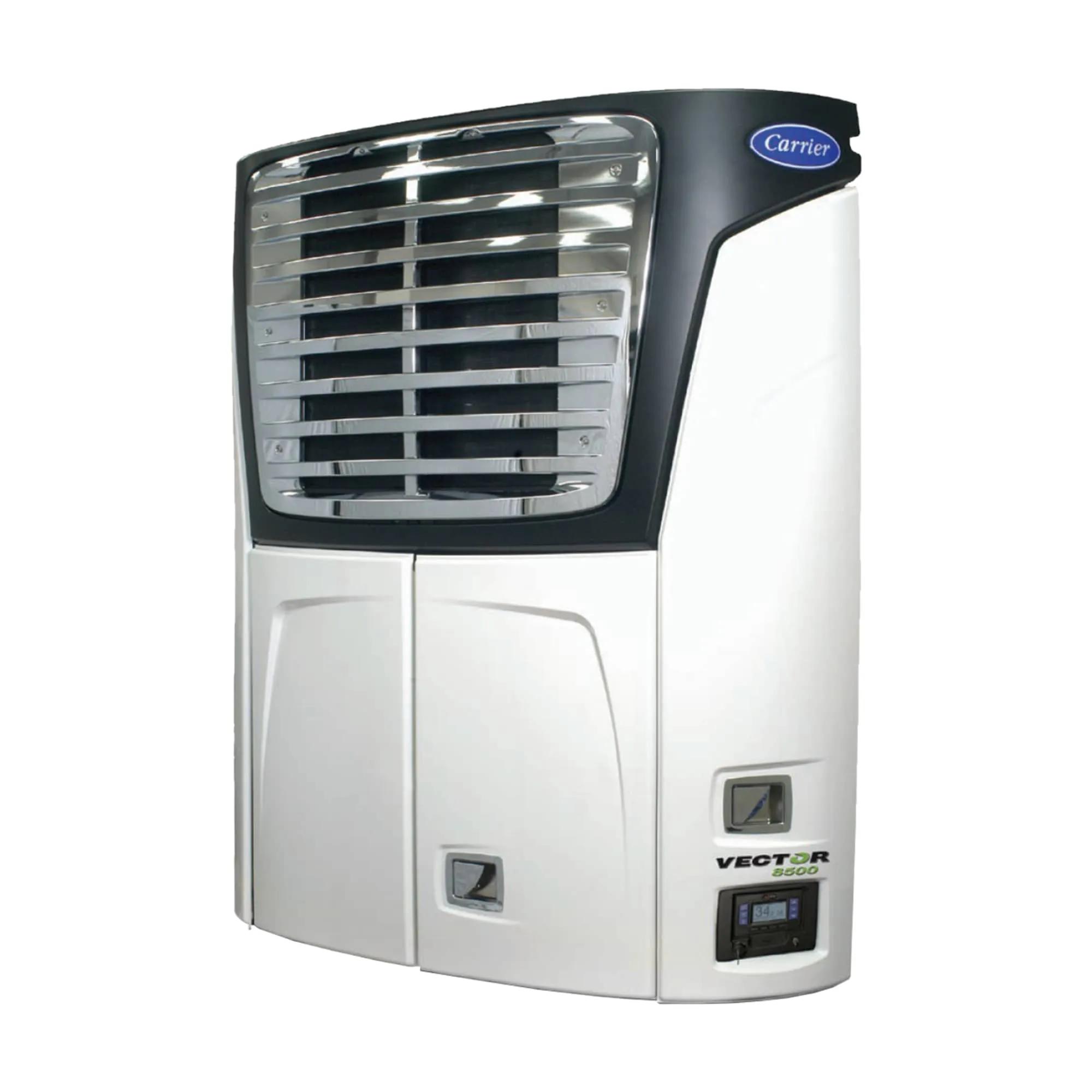

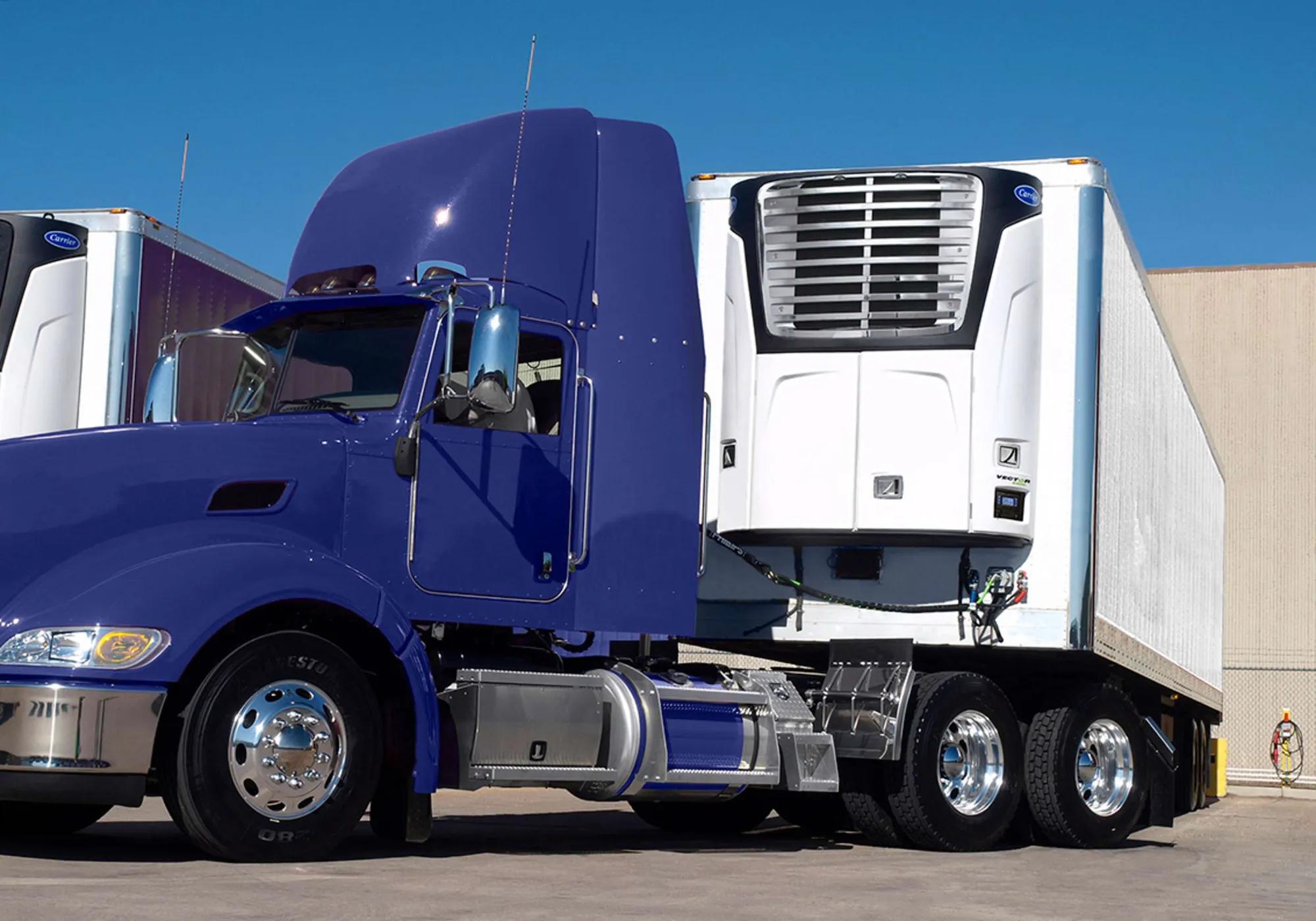

Vector™ 8500 – The original all-electric trailer refrigeration system
Delivering reliability, sustainability and value through advanced all-electric technology
The Carrier Vector™ 8500 Trailer Refrigeration Unit delivers reliable, sustainable cooling with advanced E-Drive™ all-electric technology for superior efficiency and lower emissions. Featuring ecoFORWARD™ technology, it meets EPA Tier 4 emissions regulations, offering fuel savings and reduced environmental impact, while its electric standby capability cuts operating costs further.
Features
The Vector’s platform all-electric refrigeration system architecture has been refined and proven year after year.
Proven design most moving parts, reducing maintenance requirements and optimizing uptime.
Reduces fuel consumption, operating costs and emissions while meeting the EPA Tier 4 compliance standards.
Cuts fuel requirements while lowering noise and emissions during stationary operations.
At a glance
Functionality
Single-temperaturePower Source
DieselNationwide Service Network
More than 180 authorized dealers availableCondenser Dimensions
76.4" x 85.7" x 22.8"; Remote 50-gallon aluminum fuel tank with mounting brackets: 65 lb.; Battery: 50 lb.(1,940 x 2,176 x 579 mm; 29 kg; 23 kg)
Evaporator Dimensions
66.3" x 45.2" x 8.2"(1,684 x 1,149 x 280 mm)
Body Opening
66.8" x 46.0"(1,696 x 1,168 mm)
Approximate Weight
1,810 lb.; Remote 50-gallon aluminum fuel tank with mounting brackets: 65 lb.; Battery: 50 lb.(820 kg; 29 kg; 23 kg)
Evaporator Airflow
Applied system performance: 3,100 cfm(5,270 m3 /hr)
The Carrier Vector™ 8500 revolutionizes trailer refrigeration by delivering sustainable, energy-efficient solutions designed to meet the needs of modern fleets.
Documents
Brochure
Vector Series
Vector 8500 Sell Sheet
Vector 8500 Sell Sheet (Portuguese)
Vector 8500 Sell Sheet (Spanish)
Installation
98-03340, APX Remote Display Panel Installation Instructions
98-50479, Air Chute Installation Instructions
98-50500-00, Solar Panel Fuse Installation for X4, Vector and Solara Units Installation Instructions
98-02526, Vector 8x00 Bottom Panel Installation Instructions
98-50498-00, Vector Auxiliary Liftgate Battery Charger Installation Instructions
Vector 8500 Installation Instruction
