Overview

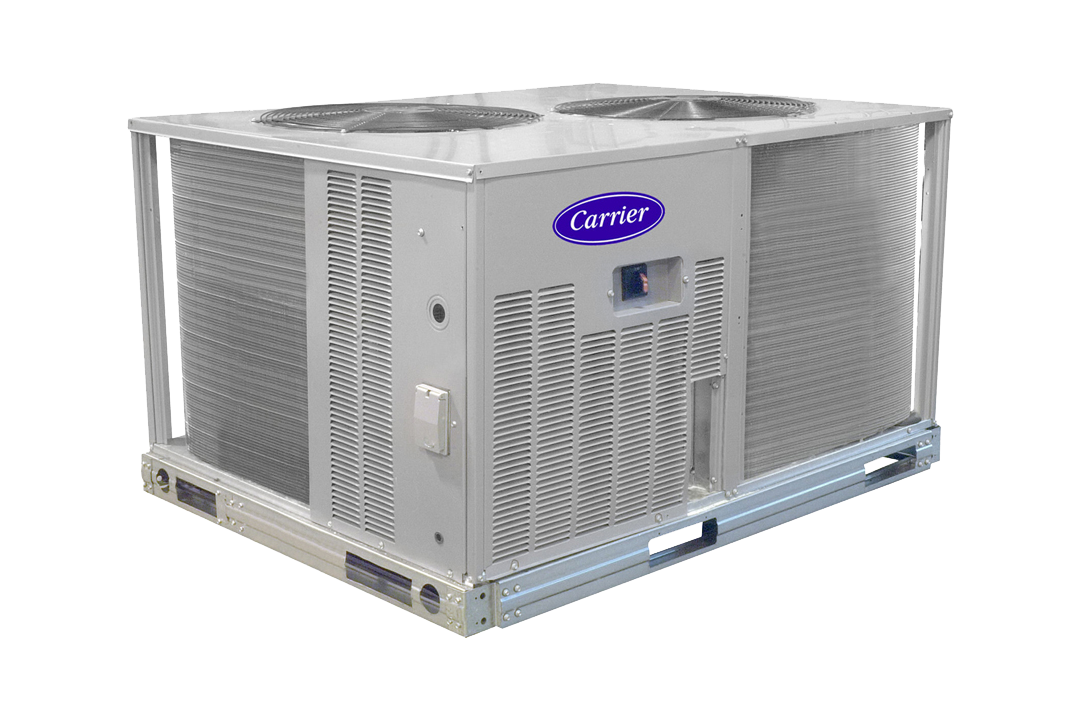

The new 38AXQ Gemini™ heat pump line is built to meet the demands of today’s toughest commercial applications. Powered by Puron Advance™ (R‑454B) refrigerant, these units deliver a 75% reduction in GWP compared to the original Puron®, far surpassing the EPA’s <700 GWP requirement and helping customers meet evolving environmental standards with confidence.
- AHRI 340/360
- UL Listed (US and Canada)
Features
- High/low pressure switches and anti‑short‑cycle protection safeguard system performance.
- Durable pre‑painted, galvanized steel cabinet with 500‑hour salt‑spray resistance.
- Scroll compressor with overload protection and E‑Coat coil protection.
- Ships with Puron Advance™ (R‑454B) partial charge for streamlined setup.
- Single‑piece design with perimeter base rail, lifting holes, and forklift slots.
- Suitable for rooftop or ground mounting with simple 24V thermostat wiring.
- Comfort Alert™ diagnostic board speeds troubleshooting.
- Easy‑access compressor panel with no‑strip screws and convenience outlet.
- Compatible with 40RLQ A2L onboard dissipation system for enhanced occupant safety.
- 5‑year parts‑only warranty on compressor.
- 1‑year parts‑only warranty on all remaining components.
The 38AXQ heat pump condensing units deliver long-lasting, reliable performance with Puron Advance™ R-454B refrigerant, customizable split-system designs, durable pre-painted galvanized steel cabinets, optional coil protection, and standard Comfort Alert™ diagnostics for fast, easy troubleshooting.
Documents
Guide Specifications
38AXQ Guide Specifications, 6 to 25 Nominal Tons
Installation
38AXQ 15 to 25 ton, Heat Pump Condensing Unit
38AXQ*16-25 Gemini™ Heat Pump Condensing Units with Puron Advance™ (R-454B) Refrigerant
38AXQ*07-12 Gemini™ Heat Pump Condensing Units with Puron Advance™ (R-454B) Refrigerant
Product Data
38AXQ 6 to 25 ton, Heat Pump Outdoor Unit Split System
REVIT and 3D DRW Files
38AXQ 25T Split System Heat Pump Revit Files
38AXQ 15T Split System Heat Pump Revit Files
38AXQ 20T Split System Heat Pump Revit Files
38AXQ 6-10T Split System Heat Pump Revit Files
