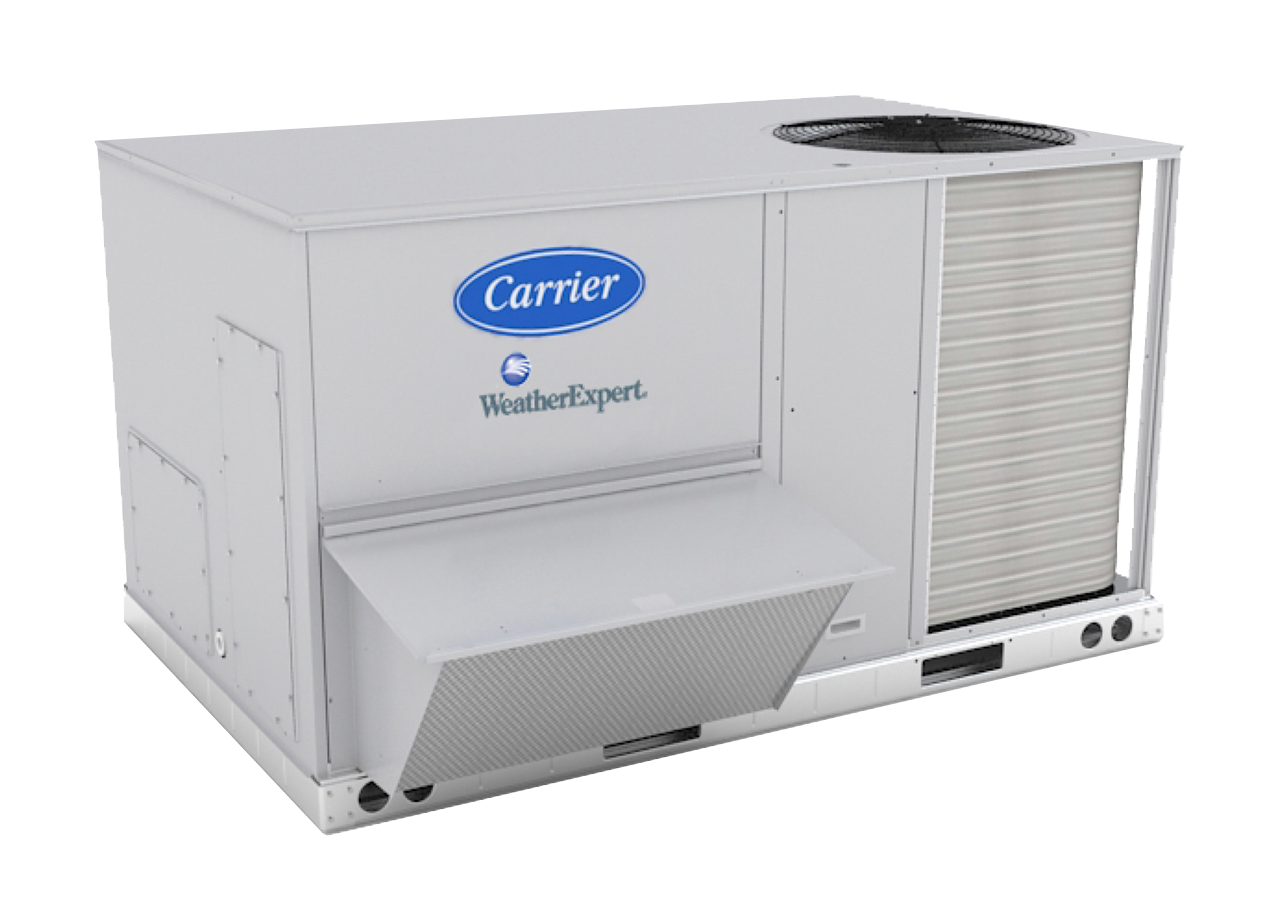

WeatherExpert® 50LC Ultra High-Efficiency Single-Packaged Rooftop Unit
Technical Specifications
At a glance
Type
Electric CoolingRefrigerant
R-410ACapacity Range
6 - 23 TonsEfficiency (IEER)
13.0Features
Performance Features
Exceeded Department of Energy Advanced RTU Challenge by 15%
Exceeds ASHRAE 90.1 and Energy Star efficiency levels, as well as Consortium for Energy Efficiency (CEE) criteria
All models have three-stage cooling capacity control
Up to 17.5 SEER and 20.8 IEER
Exclusive non-corrosive composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
All models have standard cooling operation up to 125 °F (52°C), and down to 40°F (4°C)
VAV models use a duct static pressure sensor to vary the units indoor fan motor variable frequency drive (VFD) while cooling capacity is controlled by the units supply air temperature sensor, to make sure the correct temperature in each zone.
Maintenance Features
Control terminal board facilitating simple safety circuit troubleshooting and simplified control box arrangement
Access panels with easy grip handles and tool-less filter access door
Innovative, easy starting, no-strip screw feature on unit access panels
Optional hinged access panels also available
Two-inch disposable return air filters
All models have a belt drive evaporator-fan motor and pulley combinations with VFD controller to match the capacity cooling stages for maximum efficiency and comfort control
3 to 5 ton models have an optional ECM direct drive (multi-speed and torque) indoor fan motor system
Installation Features
Same footprint as installed Carrier 3-5 ton rooftops back to 1989, reducing installation costs and time
Field convertible from vertical to horizontal airflow for slab mounting without any special kits (size 07-12 units)
Provisions for thru-the-bottom power entry capability as standard
Single point electric, gas, and controls connections
Full perimeter base rail with built-in rigging adapters and fork truck slots
Dedicated vertical and horizontal airflow models available (factory option on size 14 to 26 units)
Reliability Features
Scroll compressors with internal line-break overload protection
24-volt control circuit protected with resettable circuit breaker
Permanently lubricated evaporator-fan motor
Totally enclosed condenser motors with permanently lubricated bearings
Low pressure and high-pressure switch protection
Large capacity liquid line filter drier as standard
Standard Limited Warranty
5 years parts only electric heater
5 years parts only compressor
3 years parts only on ComfortLink controls
One year parts only on all other parts
Extended warranty packages available
Options
Factory-Installed Options
Cabinet
Thru-the-base electrical or gas-line connections
Hinged access panels
Foil-faced insulation
Coil Options
Cu/Cu indoor and/or outdoor coils
Pre-coated outdoor coils
Premium, E-coated outdoor coils
Humidity Control
Humidi-MiZer Adaptive dehumidification system
Condenser Protection
Condenser coil hail guard (louvered design)
Controls
ComfortLink DDC communicating controller (sizes 04-06)
RTU OPEN multi-protocol controller
Smoke detector (supply and/or return air)
Economizers & Outdoor Air Dampers
EconoMi$er X (for electro-mechanical controlled RTUs with CA Title 24 FDD)
EconoMi$er2 (for DDC controlled RTUs)
Ultra-low leak economizer dampers
Motorized 2 position outdoor-air damper
Manual outdoor-air damper(sizes 14-26)
Barometric relief
Power exhaust (sizes 14-26)
Economizer Sensors & IAQ Devices
Single dry bulb temperature sensors
Single enthalpy sensors
CO2 sensor (wall, duct, or unit mounted)
Electric Heat
Multiple Electric Resistance Heater KW Sizes
Single Point kit
Indoor Motor & Drive
Multiple motor and drive packages
Low Ambient Control
Winter start kit
Power Options
Convenience outlet (powered)
Convenience outlet (unpowered)
Non-fused disconnect
HACR Circuit Breaker
Field-Installed Accessories
Cabinet
Thru-the-base electrical or gas-line connections
Condenser Protection
Condenser coil hail guard (louvered design)
Controls
Thermostats, temperature sensors, and subbases
Smoke detector (supply and/or return air) (sizes 14-26)
Time Guard II compressor delay control circuit
Filter status switch
Fan status switch
Economizers & Outdoor Air Dampers
EconoMi$er X (for electro-mechanical controlled RTUs with CA Title 24 FDD)
EconoMi$er2 (for DDC controlled RTUs)
Ultra-low leak economizer dampers
Motorized 2 position outdoor-air damper
Manual outdoor-air damper
Barometric relief
Power exhaust
Economizer Sensors & IAQ Devices
Single dry bulb temperature sensors
Differential dry bulb temperature sensors
Single enthalpy sensors
Differential enthalpy sensors
CO2 sensor (wall, duct, or unit mounted)
Electric Heat
Multiple Electric Resistance Heater KW Sizes
Single Point kit
Low Ambient Control
Winter start kit
Roof Curbs
Roof curb 14" (356mm)
Roof curb 24" (610mm)
Physical Data
| Nominal Cooling Ton Size | Cooling Stages | AHRI Efficiency (SEER) IEER | Dimensions (in) LxWxH | Electric Heat Nominal Kilowatt Range | Approx. Unit Weight (lbs) |
| 6 | 3 | 20.7 | 88 x 59 x 49 | 6.0 to 25.5 | 967 |
| 7.5 | 3 | 19.9 | 116 x 63 x 57 | 10.0 to 33.5 | 1535 |
| 8.5 | 3 | 21.9 | 116 x 63 x 57 | 10.4 to 33.5 | 1536 |
| 10 | 3 | 20.8 | 116 x 63 x 57 | 10.0 to 51.0 | 1536 |
| 12.5 | 3 | 19.3 | 128 x 87 x 49 | 15.0 to 50.0 | 1754 |
| 15 | 3 | 18.5 | 141 x 87 x 49 | 25.0 to 75.0 | 1996 |
| 17.5 | 3 | 17.9 | 141 x 87 x 49 | 25.0 to 75.0 | 2102 |
| 20 | 3 | 18.2 | 158 x 87 x 57 | 25.0 to 75.0 | 2248 |
| 23 | 3 | 18.3 | 158 x 87 x 57 | 25.0 to 75.0 | 2393 |
AHRI = Air-Conditioning, Heating & Refrigeration Institute
ASHRAE = American Society of Heating, Refrigerating and Air Conditioning, Inc.
IEER = Integrated Energy Efficiency Ratio
SEER = Seasonal Energy Efficiency Ratio
NOTES
- Rated and certified under ARI Standard 210/240---06 or 340/360---07, as appropriate.
- Ratings are based on:
- Cooling Standard: 80°F (27°C) db, 67°F (19°C) wb indoor air temp and 95°F (35°C) db outdoor air temp.
- All 50LC units comply with ASHRAE 90.1-2001, 2004 Energy Standard for minimum SEER and EER requirements.
- Where appropriate, 50LC units comply with US Energy Policy Act (2005).
Documents
Accessory and Kit Data
Accessory Thru-the-Bottom Service Connection for Select 7.5, to 15 Ton Models CRBTMPWR005A00, CRBTMPWR006A00, CRBTMPWR007A00
48/50LC 04-06 Single Package Rooftop Unit Plugged Filter Indicator Accessory
CRDISKIT002A00 Multi-Speed VFD Display Kit for Danfoss Controller, for use with 48/50LC 07-26 Units
CRSTATUS003B01 48/50LC04-06 Single Package Rooftop Fan Status Switch Accessory
CRBARHOD001A00 Barometric Relief Hood Medium Rooftop Units 12.5 to 25 Tons
Small Rooftop Products 3 to 12-1/2 Tons Horizontal EconoMi$er 2 Accessory CRECOMZR026A00, CRECOMZR027A00, CRECOMZR065A00
Remote Test/Reset Station SD-TRM4 For Smoke Detectors Commercial Rooftop Units 3-27.5 Tons
Accessory Louvered Hail Guard Gas Heat/Electric Cooling, and Electric Cooling Units
48/50HC04-28 48/50LC04-06 Single Packge Rooftop Units with ComfortLink Controls Economizer Controller (ECB) Accessory
Small Rooftop Products Select 3 to 12-1/2 Tons Horizontal EconoMi$er X Accessory CRECOMZR077A00, CRECOMZR079A00, and CRECOMZR081A00
CRPECONV003A00, CRPECONV004A00, CRPECONV007B00 Small Rooftop Units Hinged Door Angle Kit for Vertical EconoMi$er2, EconoMi$er IV and Vertical Power Exhaust Gas Heat Elec Cool, Elec Cool, and Heat Pump Units
Small Rooftop Products Select 3 to 12-1/2 Tons Horizontal EconoMi$er 2 Accessory CRECOMZR026B00, CRECOMZR027B00, CRECOMZR065B00
Horn/Strobe Annunciator for Smoke Detectors for Commercial Rooftop Units 3 to 27.5 Tons
Humidity Sensor Accessory for Enthalpy Control for 48/50LC, 48/50A, 48/50P, 48/50N, 48/50Z
20 AMP NON UNIT POWERED CONVENIENCE OUTLET FIELD INSTALLED KIT
CRSMKKIT002A01, CRSMKSEN002A01 Field-Installed Smoke Detectors for Medium Rooftop Units (12.5 to 27.5 Tons)
CRCNDOVR003A00 Condensate Overflow Switch Accessory for Small Rooftop Units 3 to 15 Tons, 50/60 Hz
Differential Return Sensor Accessory for Small and Medium Rooftop Units, 3 to 27.5 Tons
Indoor Air Quality CO2 Sensor and Duct-Mounted Aspirator Box for use with EconoMi$er® IV System
Ultraviolet Lamp Accessory for Rooftop Units 3 to 27.5 Tons
Filter Kit Accessory for Small Rooftop Units Select 3 to 15 Ton Units, CRFLTTRK002A00-006A00
Ultra Low Leak Vertical EconoMi$er® X Accessory for Small Rooftop Units 3 to 12.5 Tons (48/50LC 14 Not Included) CRECOMZR067A01, CRECOMZR069A01, and CRECOMZR071A01
Ultra Low Leak Vertical EconoMi$er® 2 Accessory for Small Rooftop Units, 3 to 12.5 Tons, CRECOMZR066A01, CRECOMZR068A01, CRECOMZR070A01
Ultra Low Leak EconoMi$er® X Accessory for Medium Rooftop Units 12.5 to 27.5 Tons
Electric Heater and Single Point Box Accessory for Electric Cooling and Heat Pump Select 3 to 15 Tons CRHEATER101A00-119A00, 128B-129B00, 264A-269A00, 288A-299A00, 301A,308A00, 316A-321A00, 360A-364A00, 367A-384A00, CRSINGLE037A00-054A00
Thru-the-Bottom Electric Connections, Thru-the-Curb Gas Connection Accessory for Gas Heating/Electric Cooling Small Rooftop Units, 3 to 6 Tons (50/60 Hz)
Thru-the-Bottom Electric and Gas Connections Accessory for Gas Heating/Electric Cooling Small Rooftop Units, 3 to 6 Tons (50/60 Hz)
CRDUCTCV001A00, CRDUCTCV002A00 Supply Air Duct Cover Accessory for Select 7.5, 10, 12.5 and 15 Ton Models
CRPWREXH068A00 CRPWREXH069A00 CRPWREXH070A00 Power Exhaust Accessory Single Package Rooftop Units 15 to 25 Tons
CRDISBKT001A00 Disconnect Switch Bracket Accessory for Commercial Packaged Heat Pump with Puron® (R-410A) Refrigerant, 10 Ton High Efficiency, 12.5 Ton Standard Efficiency, 7 1/2-10 Ton Ultra High Efficiency
CRFLTTRK001A00 Accessory Filter Kit for Medium Rooftop Unit 12.5 to 27.5 Tons
CRECOMZR076A00, CRECOMZR078A00, CRECOMZR080A00 Vertical EconoMi$er® X Accessory for Small Rooftop Products Select 3 to 12-1/2 Tons
CRSTATUS001A00 Fan/Filter Status Switch Accessory for Small Rooftop Units Gas Heating/Electric Cooling, Electric Cooling and Heat Pump Units 3 to 15 tons
Smoke Detector Accessory for Small Rooftop Units 3 to 15 Tons P/Ns CRSMKKIT003A00, CRSMKSEN003A00
Louvered Hail Guard Accessory for Gas Heating/Electric Cooling, Electric Cooling and Heat Pump Rooftop Units, 3 to 15 Tons
Competitor Roof Curb Adapter Accessory Kit, 3 to 12.5 Tons, CRLNXCURB12A00, CRLNXCURB34A00, CRTRACURB12A00, CRTRACURB34A00, CRYRKCURB12A00, CRYRKCURB34A00
Horizontal EconoMi$er X Accessory for Small Rooftop Products Select 3 to 12-1/2 Tons (48/50LC 14 Not Included) CRECOMZR077A00, CRECOMZR079A00, CRECOMZR081A00
Electric Heater and Single Point Box Accessory for Electric Cooling and Heat Pump Select 12.5 to 27.5 Tons CRHEATER270B00-CRHEATER287B00, CRHEATER302B00-CRHEATER307B00, CRHEATER309B00-CRHEATER314B00, CRHEATER400B00-CRHEATER409B00
CRCNDOVR005A00 Accessory Condensate Overflow Switch for Small/Medium Rooftop Units, 3 to 28 Tons, 50/60 Hz
33WIFISTAT43 Wi-Fi Thermostat
Split Systems, 6 to 20 Tons (21.5 to 70.3 kW) Rooftop Units, 3 to 27.5 Tons (10.5 to 96.7 kW) Packaged Heat Pumps Phase Monitor Accessory 50/60 Hz CRPHASE3001A02 CRPHASE3002A00 CRPHASE3002A01
Vertical Power Exhaust Accessory for Gas Heating/Electric Cooling, Electric Cooling, and Heat Pump Rooftop Units, 3 to 15 Tons, CRPWREXH021A01, CRPWREXH022A01, CRPWREXH023A01, CRPWREXH030A01, CRPWREXH080A00, CRPWREXH081A00
Brochure
Humidi-MiZer™ Adaptive Dehumidification For Packaged Rooftop Units
COMMERCIAL INVEST Rooftop Payback Analyzer
Humidi-MiZer® Adaptive Dehumidification System
A World of Comfort 2025 - Brochure
Packaged Rooftop Units - Staged Air Volume (SAV) System
Light Commercial RTUs - Smoke Detectors
Light Commercial Variable Air Volume Packaged Rooftops - 6 to 23 Tons
Light Commercial RTUs - 4 Inch Filter Rack - Web Version
Light Commercial RTUs - 4 Inch Filter Rack - Printer Version
Understanding the AIM Act
Staged Air Volume (SAV) System for Carrier’s Small and Medium Packaged Rooftop Units and Light Commercial Splits Systems
A World of Comfort 2025 - Brochure (Printer Version)
CAD Templates
DXF/CAD Templates for 3-28 Ton Rooftop Units – 48/50TC(Q), 48/50KC(Q), 48/50HC(Q), 48/50LC, EnergyX® models
Controls
48-50LC 04-06 Single Package Rooftop Units with ComfortLink Controls Version 1.X and PURON (R-410A) Refrigerant
48/50LC*B07-26 with VAV-RTU Open Controller, Controls, Start-Up, Operation and Troubleshooting
RTU Open Multi-Protocol Controller Factory-Installed Option for 48/50FC,GC,HC,KC,LC,TC and 50FCQ,GCQ,KCQ,HCQ,TCQ
48/50LC 04-26 Start-Up, Operation and Controls Troubleshooting for Single Package Rooftop Units with SystemVu™ Controls Version 7.X
SmartVu™ Controls Version 2.X for Light Commercial and Applied Rooftop Gas Heat/Electric Cooling and Electric Heat/Electric Cooling Units with PIC 6.0 Hardware, Integration Guide
Guide Specifications
GS-50LC-14-26-03PD
GS-50LC-7-12-04PD
50LC Guide Specifications, 12.5 to 23 Nominal Tons
50LC*B14-26 Guide Specifications, 12.5 to 23 Nominal Tons
50LCB Guide Specifications, 6 to 10 Nominal Tons
50LC Guide Specifications, 6 to 10 Nominal Tons
50LC*H Guide Specifications, 6 to 10 Nominal Tons
Installation
Honeywell T7350 Commercial Programmable Thermostat
Installation Instructions 50LC*B Single Package Rooftop Cooling Only with VAV (Variable Air Volume) Operation, with Puron (R-410A) Refrigerant, Size: 07
Installation Instructions 50LC*B Single Package Rooftop Cooling Only with VAV (Variable Air Volume) Operation, with Puron (R-410A) Refrigerant, Sizes: 08, 09, 12
Installation Instructions 50LC*B Single Package Rooftop Cooling Only with VAV (Variable Air Volume) Operation, with Puron (R-410A) Refrigerant, Sizes: 14, 17, 20, 24, 26
50LC 04-06 WeatherExpert® Single Package Rooftop Cooling Only with Puron (R-410A) Refrigerant
50LC07 Single Package Rooftop Cooling Only with Puron (R-410A) Refrigerant (Honeywell)
50LC WeatherExpert® Single Package Rooftop Cooling Only with Puron (R-410A) Refrigerant, Sizes: 08, 09, 12 (Honeywell)
50LC 14-26 Single Package Rooftop Cooling Only with Puron (R-410A) Refrigerant (Honeywell)
50LC*B14-26 Single Package Rooftop Cooling Only with Puron (R-410A) Refrigerant
High Short Circuit Current Rating (60 Hz HSCCR) Supplement for Single Package Rooftop (3 to 15 Nominal Tons)
RTU Open Version 7 Integration Guide
Maintenance
50LC*14-26 Nominal 12.5 to 23 Tons with Puron (R-410A) Refrigerant Service and Maintenance Instructions
50LC*07-12 WeatherExpert® Single Package Rooftop Electric Cooling with Optional Electric Heat with Puron (R-410A) Refrigerant Service and Maintenance Instructions
Presentation
DSRE Dual Stage Relief Economizer video
Press Release
Press Release - When It Comes to Efficiency, Carrier WeatherExpert™ Commercial Packaged Rooftops Deliver
Press Release - Carrier Dual-Stage Relief Economizer Nets Two Prestigious Awards
Press Release - Carrier Commercial Equipment Upgrade Saves California School District More than Two Hundred Thousand Dollars in Energy Costs
Product Data
50LC14-26 WeatherExpert® Ultra High-Efficiency Single Package Rooftop with Optional Electric Heat with Puron® (R-410A) Refrigerant
50LC*B 14-26 WeatherExpert® Series Packaged Multi Zone VAV (Variable Air Volume) Rooftop Cooling Units with Optional Electric Heat 12.5 to 23 Nominal Tons
50LC07-12 WeatherExpert® Ultra High-Efficiency Single Package Rooftop and Single Zone VAV Cooling Only with Optional Electric Heat with Puron® (R-410A) Refrigerant, 6 to 10 Nominal Tons
50LCB 07-12 WeatherExpert® Single Packaged Multi Zone VAV Rooftop Units with Electric Cooling and Optional Electric Heat, 6 to 10 Nominal Tons
48/50LC*H 07-12 WeatherExpert® Packaged High Outdoor Air Systems, 6 to 10 Nominal Tons
REVIT and 3D DRW Files
50LC14-26 Family REVIT Files
50LC04-12 Family REVIT Files
Small Rooftop Revit Cheat Sheet - Tips and Tricks for Revit Family Files
Warranty Card
50LC, 3-5 TON, Limited Warranty for Commercial Packaged Cooling Rooftop Unit with Puron Refrigerant
50LC 6-25 Ton Limited Warranty for Commercial Packaged Cooling Rooftop Unit with Puron Refrigerant
Limited Warranty for Light Commercial Equipment
White Paper
Intelligent Air Source and Terminal Integration
Environmental Design Considerations for Hospital Operating Rooms White Paper
