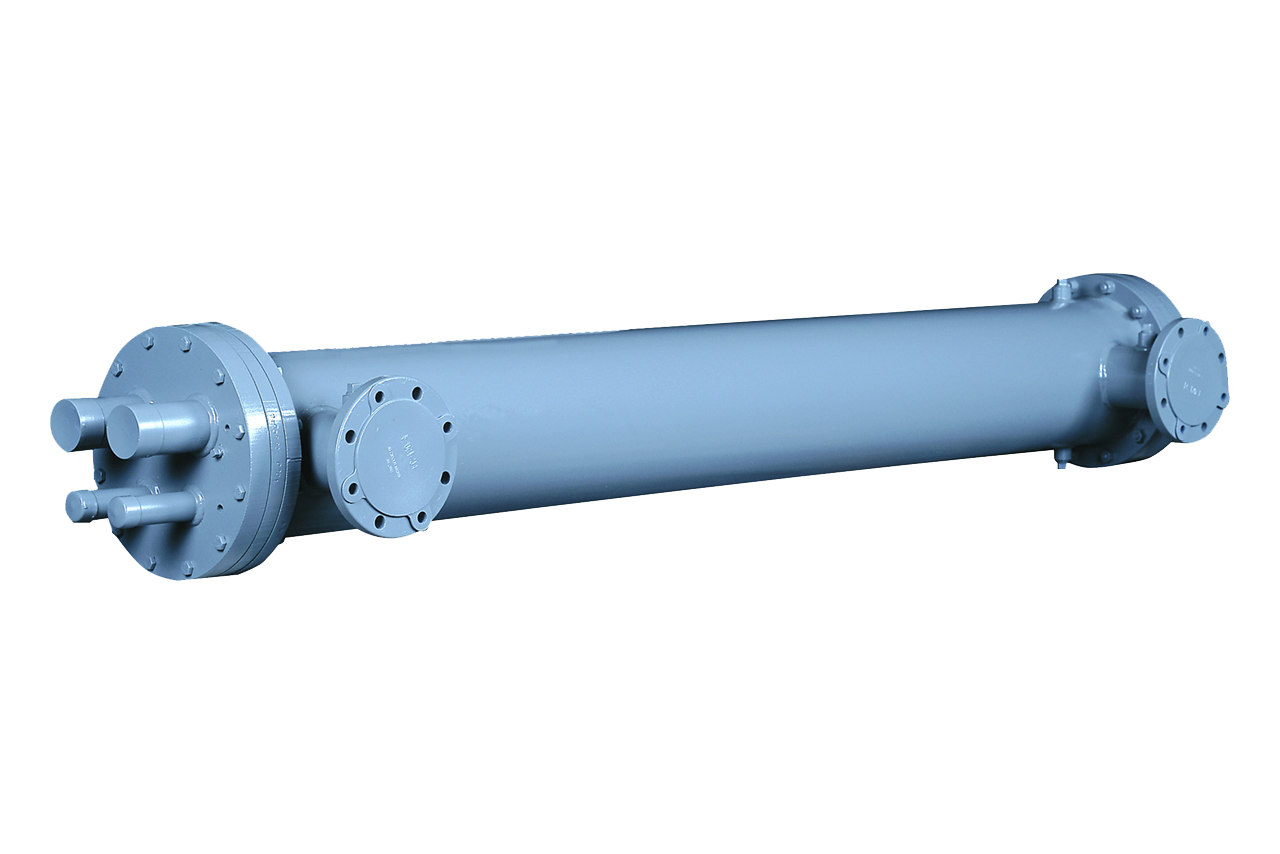

Choose Carrier 10RT Series direct expansion (DX) shell-and-tube liquid coolers for built-up systems in office buildings, hospitals, or any commercial applications where unique cooling requirements or space limitations dictate the need for separate location of the cooler from the condenser, compressors, or air-handling components.
Features
High‑performance copper tubes, rolled‑in to tube sheets, and optimized shell‑side baffling are selected to maximize heat transfer while minimizing fluid pressure drop. Refrigerant circuitry and geometry maintain controlled refrigerant velocities for positive oil return and low refrigerant pressure drop, improving part‑load efficiency and overall system performance.
A serviceable through‑tube design with removable heads simplifies inspection and maintenance. Construction adheres to ASME Section VIII, Div. 1 with quality‑controlled manufacturing, making the 10RT suitable for trouble‑free fluid cooling applications and long‑term reliability in commercial environments.
To tune performance for your application, choose 2 or 4 head passes to manage refrigerant velocity and pressure drop; specify single circuits on 5–6‑inch shells, two circuits standard on 8–24‑inch shells, or up to four circuits by special order to optimize part‑load efficiency. Additionally, six baffle‑spacing options (1–6) let you balance heat‑transfer effectiveness against allowable pressure drop, enabling maximum operating efficiency without exceeding design limits. Lifting lugs and mounting saddles are available for installation ease.
At a glance
Type
Chiller barrelCapacity Range
7.5 - 350 TonsCapacity Range
25 - 1,230 kWWith 10RT Series coolers, dimensional restrictions are no problem, since you select from a large assortment of shell diameters and lengths. And these compact coolers are available in 7 1/2 through 350 nominal tons capacity range.
Documents
Guide Specifications
10RT Guide Specifications, 7.5 to 350 tons
Product Data
10RT Direct-Expansion Liquid Coolers, 7.5 to 350 tons
Submittal
10RT Direct-Expansion Liquid Chillers
White Paper
Split Systems: a Primer
