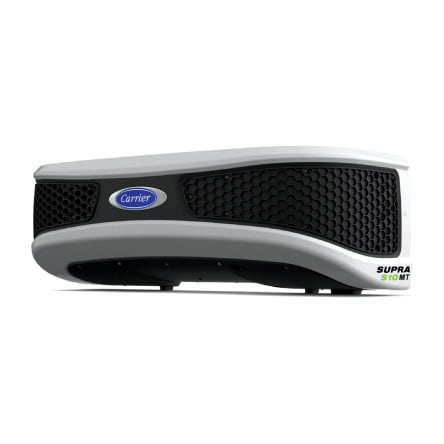

Supra® S10 MT Truck Refrigeration Unit
Precise Multi-Product Temperature Management with Improved Performance, Efficiency and Serviceability.
Supra S10 MT is the ideal solution for multi-temperature vehicles which demand high capacity, high airflow, and fast recovery after frequent deliveries.
The ideal solution for multi-temperature vehicles which demand high capacity, high airflow, and fast recovery after frequent deliveries.
- Exclusive single- and dual-discharge evaporator design provides configuration flexibility to suit the application.
- SlimLINE® evaporators provide the most optimized loading configurations and minimize the risk of damage. The Supra S10 MT evaporator skins are made of corrosion-free composite material, have a separate drain pan and a 12V DC fan design.
- Quieter performance by up to 3 decibels, thanks to reduced engine speeds and other improvements, making it well-suited for nighttime urban deliveries.
- Streamlined, weight-saving architecture that uses fewer unique components than its predecessor and reduces unit weight by 18%.
- APX™ control technology, providing intelligent performance optimization, automatic trip data recording and enhanced system diagnostics.
- Reduced service requirements, including an extended oil service interval of 2,000 hours and greater use of maintenance-free components.
Supra S10 MT
Supra® S10 MT Truck Refrigeration Unit
Precise Multi-Product Temperature Management with Improved Performance, Efficiency and Serviceability.
Performance Specifications
Condenser Dimensions
75.4” x 32.1” x 24.2”
(1,914 x 815 x 615 mm)

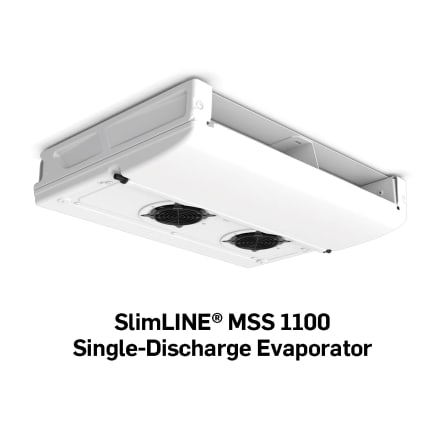

Evaporator Dimensions – Single Discharge (MSS 1100)
41.3" x 29.8" x 8.07"
(1,050 x 757 x 205 mm)

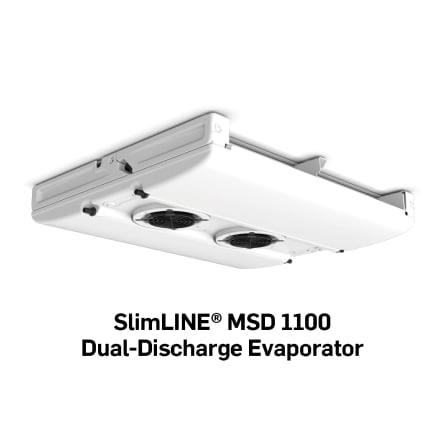

Evaporator Dimensions – Dual Discharge (MSD 1100)
41.1" x 37.17" x 6.57"
(1,044 x 944 x 167 mm)
Evaporator Airflow – Single Discharge
1,436 cfm (2,439 m3/hr)
Evaporator Airflow – Dual Discharge
1,560 cfm (2,650 m3/hr)
Cooling/Temperature Capacity:
Ambient at 100°F (38°C)
Speed: 2,100 rpm diesel/60-hertz electric operation
| Evaporator
Return Air Temp. |
Road Operation | Standby Operation | ||
| BTU/hr | Watts | BTU/hr | Watts | |
| 35°F ( 2°C) | 33,000 | 9,672 | 25,000 | 7,327 |
| 0°F (-18°C) | 21,000 | 6,155 | 19,000 | 5,569 |
| -20°F (-29°C) | 11,500 | 3,370 | 10,500 | 3,077 |
Supra Series – The Next Generation of Truck Refrigeration Units
Performance Specifications
Condenser Dimensions
75.4” x 32.1” x 24.2”
(1,914 x 815 x 615 mm)
Evaporator Dimensions – Single Discharge (MSS 1100)
41.3" x 29.8" x 8.07"
(1,050 x 757 x 205 mm)
Evaporator Dimensions – Dual Discharge (MSD 1100)
41.1" x 37.17" x 6.57"
(1,044 x 944 x 167 mm)
Evaporator Airflow – Single Discharge
1,436 cfm (2,439 m3/hr)
Evaporator Airflow – Dual Discharge
1,560 cfm (2,650 m3/hr)
Cooling/Temperature Capacity:
Ambient at 100°F (38°C)
Speed: 2,100 rpm diesel/60-hertz electric operation
| Evaporator
Return Air Temp. |
Road Operation | Standby Operation | ||
| BTU/hr | Watts | BTU/hr | Watts | |
| 35°F ( 2°C) | 33,000 | 9,672 | 25,000 | 7,327 |
| 0°F (-18°C) | 21,000 | 6,155 | 19,000 | 5,569 |
| -20°F (-29°C) | 11,500 | 3,370 | 10,500 | 3,077 |
Supra Series – The Next Generation of Truck Refrigeration Units
