AquaEdge® Water-Cooled Centrifugal Chiller 19MV
AquaEdge® Water-Cooled Centrifugal Chiller
19MV
150 to 700 Tons
The AquaEdge 19MV Water-Cooled Centrifugal Chiller – Experience Unconditional Performance.
It’s time to rethink what you know about chillers. In the past, more operating range often meant less efficiency at design conditions. Now Carrier has created a chiller that delivers both, unconditionally. The all-new AquaEdge 19MV chiller can provide MORe: More Operating Range and high efficiency at design conditions.
Quickly evaluate chiller system performance
Carrier’s PLV Pro is a software tool that empowers consulting engineers to make objective and informed decisions about their chiller plant design that go beyond Full Load and IPLV metrics. Results are provided in a professional report or .csv format for further analysis. The tool is for professionals who need a quick and free-of-charge alternative to detailed energy modeling analyses.
Water-cooled chillers within the scope of the AHRI WCCL certification program are certified in accordance with the AHRI Water-Cooled Water-Chilling and Heat Pump Water-Heating Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org.
Performance Features
- Low energy consumption during part load and full load operation
- Full load down to 0.52kW/Ton (6.8 COP)
- IPLV down to 0.31kW/Ton (11.3 COP)
- Quiet operation – less than 82 dBA
- Low GWP R-513A or R-515B refrigerant (all with A1 safety rating
- EquiDrive™ two-stage back-to-back compressor
- Dual inlet guide vanes for efficiency and stability
- Magnetic bearings (select models)
- Operating range of 40°F to 95°F entering condenser water down to 10% load (select models)
- Expansion control system with dual Electronic Expansion Valves (EXVs)
- Carrier® SmartVu™ color touchscreen control panel with multilingual display
- Compatible with Carrier Comfort Network® (CCN) communication link
- Native BACnet® compatibility
Reliability Features
- ASME constructed heat exchangers
- Two-stage 150-700 tons (527 to 2461 kW) compressor
- Semi-hermetically sealed compressor and permanent magnet motor
- Automated controls may be tested before start-up
- Air-cooled, dust and splash protected variable frequency drive (IEEE-519 Option)
- Uninterruptable Power Supply (UPS) (only available with the 19MV-)
Maintenance Features
- Password protected extensive service menu with built-in diagnostic capabilities, troubleshooting, and corrective action recommendations for preset alarms
- Alarm and alert files maintain the last 25 time and date stamped messages in memory
- Configuration data backup with non-volatile memory
- Thermistor-type temperature sensor with quick connects in each water nozzle
- Dual relief tree
- BluEdge® Service Platform
- Service contract available
Installation Features
- Compact footprint – many models fit through 72" x 80" double door fully assembled
- Bolt together construction
- Low voltage control circuits
- Automated controls test on start-up
Standard Warranty
- One year from start-up or 18 months from shipment
- Refrigerant warranty 5 years from date of manufacture (US & Canada only)
- Extended warranties available (US & Canada only)
Factory-Installed Options
- Enhanced tubing, .028 or .035 in. (0.711 or 0.889 mm): Internally/externally enhanced copper tubing – evaporator/condenser
- Marine waterboxes: 150 psig (1034 kPa) waterbox
- Flanged evaporator and/or condenser waterbox nozzles
- Refrigerant economizer
- BACnet® communications
- IEEE-519 Option
- Export crating
- Extended Warranty (North America only)
- Service contract
Field-Installed Accessories
- BACnet® Carrier translator
- LonWorks® Carrier translator
- Sensor package
- Separate storage tank and pumpout unit
- Stand-alone pumpout unit
- Soleplate package
- Spring isolator kit
| Heat Exchanger Size | 2-Pass Length | 19MV Width | 19MV Height |
|---|---|---|---|
| 21 | 167 | 52.5 | 100 |
| 23 | 191 | 52.5 | 100 |
| 31 | 169 | 71 | 71 |
| 33 | 193 | 71 | 71 |
| 41 | 169.5 | 71 | 74.25 |
| 43 | 193.5 | 71 | 74.25 |
| 51 | 174 | 79.25 | 81.5 |
| 53 | 194 | 79.25 | 81.5 |
*Assumed 2-pass nozzles, marine waterboxes, same end and Std Tier VFD.
Performance Features
- Low energy consumption during part load and full load operation
- Full load down to 0.52kW/Ton (6.8 COP)
- IPLV down to 0.31kW/Ton (11.3 COP)
- Quiet operation – less than 82 dBA
- Low GWP R-513A or R-515B refrigerant (all with A1 safety rating
- EquiDrive™ two-stage back-to-back compressor
- Dual inlet guide vanes for efficiency and stability
- Magnetic bearings (select models)
- Operating range of 40°F to 95°F entering condenser water down to 10% load (select models)
- Expansion control system with dual Electronic Expansion Valves (EXVs)
- Carrier® SmartVu™ color touchscreen control panel with multilingual display
- Compatible with Carrier Comfort Network® (CCN) communication link
- Native BACnet® compatibility
Reliability Features
- ASME constructed heat exchangers
- Two-stage 150-700 tons (527 to 2461 kW) compressor
- Semi-hermetically sealed compressor and permanent magnet motor
- Automated controls may be tested before start-up
- Air-cooled, dust and splash protected variable frequency drive (IEEE-519 Option)
- Uninterruptable Power Supply (UPS) (only available with the 19MV-)
Maintenance Features
- Password protected extensive service menu with built-in diagnostic capabilities, troubleshooting, and corrective action recommendations for preset alarms
- Alarm and alert files maintain the last 25 time and date stamped messages in memory
- Configuration data backup with non-volatile memory
- Thermistor-type temperature sensor with quick connects in each water nozzle
- Dual relief tree
- BluEdge® Service Platform
- Service contract available
Installation Features
- Compact footprint – many models fit through 72" x 80" double door fully assembled
- Bolt together construction
- Low voltage control circuits
- Automated controls test on start-up
Standard Warranty
- One year from start-up or 18 months from shipment
- Refrigerant warranty 5 years from date of manufacture (US & Canada only)
- Extended warranties available (US & Canada only)
Factory-Installed Options
- Enhanced tubing, .028 or .035 in. (0.711 or 0.889 mm): Internally/externally enhanced copper tubing – evaporator/condenser
- Marine waterboxes: 150 psig (1034 kPa) waterbox
- Flanged evaporator and/or condenser waterbox nozzles
- Refrigerant economizer
- BACnet® communications
- IEEE-519 Option
- Export crating
- Extended Warranty (North America only)
- Service contract
Field-Installed Accessories
- BACnet® Carrier translator
- LonWorks® Carrier translator
- Sensor package
- Separate storage tank and pumpout unit
- Stand-alone pumpout unit
- Soleplate package
- Spring isolator kit
| Heat Exchanger Size | 2-Pass Length | 19MV Width | 19MV Height |
|---|---|---|---|
| 21 | 167 | 52.5 | 100 |
| 23 | 191 | 52.5 | 100 |
| 31 | 169 | 71 | 71 |
| 33 | 193 | 71 | 71 |
| 41 | 169.5 | 71 | 74.25 |
| 43 | 193.5 | 71 | 74.25 |
| 51 | 174 | 79.25 | 81.5 |
| 53 | 194 | 79.25 | 81.5 |
*Assumed 2-pass nozzles, marine waterboxes, same end and Std Tier VFD.
California residents please see Proposition 65

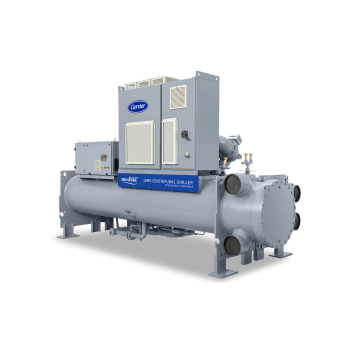

AquaEdge® 19MV – Experience Unconditional Performance

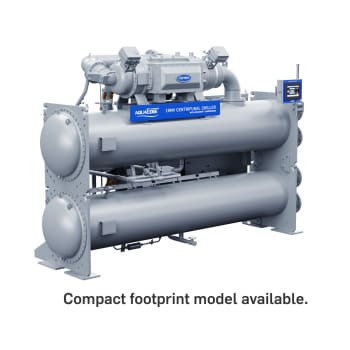

AquaEdge® 19MV - Compact Footprint Model

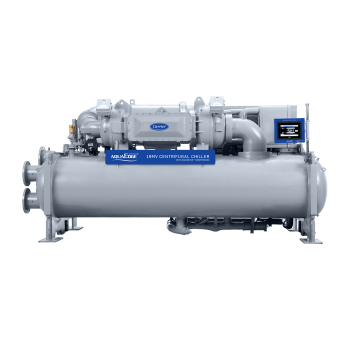

AquaEdge® 19MV - EquiDrive™ Compressor
AquaEdge® 19MV - Thru the Door
