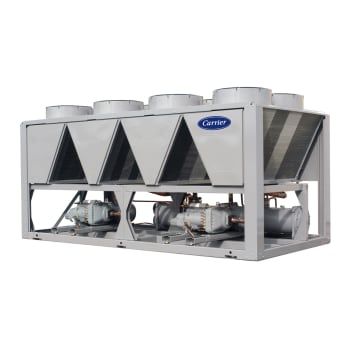

AquaForce® Air-Cooled Screw Chiller
30XA

with R-134a Refrigerant

80 to 500 Nominal Tons

AquaForce® 30XA chillers were designed from the ground up to meet the efficiency demands of today and the future by providing premium air-cooled chiller packages for contractors, consulting engineers and building owners. Value-added features include rotary screw compression, R-134a HFC refrigerant, a quiet AeroAcoustic™ fan system, easy to use ComfortLink™ controls, microchannel condenser coil technology, and an optional integrated hydronic pump package with or without VFD.

Air-cooled chillers within the scope of the ACCL certification program are certified in accordance with the AHRI Air-Cooled Water-Chilling Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org.


carrier-AHRI-550-590-551-591_Air-Cooled_Chiller

Performance Features

  • Full-load EER values up to 10.9 and IPLV values up to 15.5
  • ASHRAE 90.1 compliant / AHRI certified
  • Operation from -20 F to 125°F ambient conditions
  • High-efficiency screw compressors
  • Standard uncoated or optional e-coated Novation® microchannel heat exchanger (MCHX) condenser coils
  • Hydronic pump package, available with or without VFD on sizes 090-160
  • Touch Pilot™ display with color touch screen with trending capability and web-based connection

Reliability Features

  • ASME constructed evaporators / ETL (and ETL Canada) listed
  • Heavy-gauge galvanized steel frame
  • Security grilles and Hail guards/Privacy screen choices
  • Low ambient head pressure control
  • Coil corrosion coatings available on all coil types
  • High short circuit current rating
  • EXV (Electronic expansion valve)

Maintenance Features

  • Over 15 diagnostic functions
  • Permanently lubricated fan motor bearings
  • Compressor suction service valves
  • Microchannel condenser coils with inherent corrosion resistance and offering simplified cleaning
  • Unit-mounted, non-fused disconnect
  • Remote service port for easier machine diagnostics

Installation Features

  • Factory charged with R-134a refrigerant
  • GFI (ground fault interrupter) convenience outlet (factory-installed option or field-installed accessory)
  • Remote cooler kit (field-installed accessory)
  • Single or dual-point electrical connections available (factory-installed option)
  • Control transformer (factory-installed option)
  • Structurally robust base
  • Circuit setter provided with optional pump package (factory-installed option)

Standard Warranty

  • 3 year coil parts only on Novation microchannel heat exchanger
  • One year from start-up or 18 months from shipment limited warranty
  • Extended warranty packages available

Factory-Installed Options

  • Service option
  • Condenser coil trim panels
  • Full end screen
  • Hydronic pump package with or without VFD (sizes 090-160)
  • Condenser coil options:
    • Microchannel Heat Exchanger:
      • Non-coated
      • E-coated
    • Aluminum fins:
      • Non-coated
      • Pre-coated
      • E-coated
    • Copper fins:
      • Non-coated
      • E-coated
  • Non-fused disconnect
  • Security grilles
  • Energy Management Module
  • Compressor sound reduction enclosures
  • Compressor suction service valve
  • Condenser coil upper hail guards
  • BACnet™ communication
  • BACnet™ translator control
  • LON (local operating network) translator control
  • Low ambient temperature head pressure control
  • Single or dual-point electrical connection
  • High ambient temperature option
  • Touch Pilot™ display
  • Navigator™ display
  • DX cooler
  • Minus-one-pass cooler (flooded cooler only)
  • Plus-one-pass cooler (flooded cooler only)
  • Control transformer
  • Suction line insulation
  • High short circuit current rating

Field-Installed Accessories

  • Security grilles
  • Condenser coil full hail guards
  • Navigator™ display
  • GFI convenience outlet
  • Energy Management Module
  • LON (local operating network) translator control
  • BACnet™ translator control
  • Remote service port
  • Remote cooler
  • Condenser coil trim panels
  • Dual-chiller accessory kit
  • External pump control

30XA Weights & Dimensions

Size Weight (lb) Weight (kg) Length (in) Length (mm) Width (in) Width (mm) Height (in) Height (mm)
080 7234 3281 141 3587 88 2236 91 2300
082 7391 3353 141 3587 88 2236 91 2300
090 8127 3686 188 4780 88 2236 91 2300
092 8251 3742 188 4780 88 2236 91 2300
100 8348 3786 188 4780 88 2236 91 2300
102 8472 3843 188 4780 88 2236 91 2300
110 8483 3848 188 4780 88 2236 91 2300
112 8720 3955 188 4780 88 2236 91 2300
120 8622 3911 188 4780 88 2236 91 2300
122 8832 4006 188 4780 88 2236 91 2300
140 10768 4884 235 5975 88 2236 91 2300
142 11225 5091 235 5975 88 2236 91 2300
160 11000 4990 235 5975 88 2236 91 2300
162 11426 5183 235 5975 88 2236 91 2300
180 12669 5760 282 7168 88 2236 91 2300
182 13044 5917 282 7168 88 2236 91 2300
200 12810 5811 282 7168 88 2236 91 2300
202 13112 5948 282 7168 88 2236 91 2300
220 13748 6236 329 8363 88 2236 91 2300
222 14092 6392 329 8363 88 2236 91 2300
240 13897 6304 329 8363 88 2236 91 2300
242 14241 6459 329 8363 88 2236 91 2300
260 15720 7130 376 9555 88 2236 91 2300
262 15922 7222 376 9555 88 2236 91 2300
280 15878 7202 376 9555 88 2236 91 2300
282 16080 7294 376 9555 88 2236 91 2300
300 16141 7322 376 9555 88 2236 91 2300
302 16613 7535 376 9555 88 2236 91 2300
325 17467 7923 423 10750 88 2236 91 2300
327 17939 8137 423 10750 88 2236 91 2300
350 17659 8010 423 10750 88 2236 91 2300
352 18131 8224 423 10750 88 2236 91 2300
401 20785 9424 470 11945 88 2236 91 2300
451 21737 9859 517 13139 88 2236 91 2300
476 25362 10641 517 13139 88 2236 91 2300
501 27403 11540 611 15532 88 2236 91 2300

Notes

1) Indicated weight is for chiller employing MCHX condenser coils and incorporating no pump.
2) Other coil options or the addition of pump(s) increases chiller weight.
