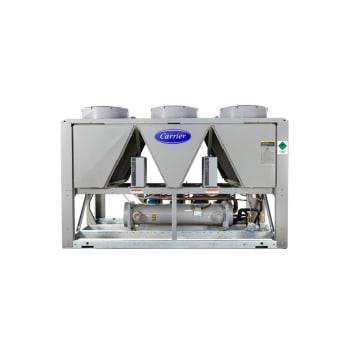

AquaSnap® Air-Cooled Liquid Chiller
30RB

with Greenspeed® Intelligence and Puron® Refrigerant (R-410A)

60 to 300 Nominal Tons

The AquaSnap® 30RB chiller is an effective all-in-one package that is easy to install and easy to own. The chiller costs less to purchase and install and then operates quietly and efficiently. Value-added features include rotary scroll compression, Puron® refrigerant (R-410A), a quiet AeroAcoustic™ fan system, easy to use ComfortLink™ controls, microchannel condenser coil technology, optional integrated hydronic pump package (with or without VFD), optional desuperheater, and optional high-efficiency variable condenser fans (Greenspeed® intelligence). Greenspeed intelligence results in best-in-class part-load efficiency with quiet part-load operation.

Aircooled chillers within the scope of the ACCL certification program are certified in accordance with the AHRI Air-Cooled Water-Chilling Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org.


carrier-AHRI-550-590-551-591_Air-Cooled_Chiller
carrier-seismic-compliant
carrier-iso-9001
carrier-intertek-ETL-listed-C-US

Performance Features

  • Full-load EER values up to 10.3 and IPLV values up to 17.1 (units with Greenspeed intelligence)
  • ASHRAE 90.1 complaint / AHRI certified
  • High efficiency variable condenser fans (Greenspeed intelligence) / Low sound levels
  • Operation from -20 °F to 125 °F ambient conditions
  • Standard uncoated or optional e-coated Novation® microchannel heat exchanger (MCHX) condenser coils
  • Hydronic pump package (with or without VFD) on sizes 060-190
  • Desuperheater
  • Robust SIT evaporator

Additional Important Options

  • Energy Management Module minimizes chiller energy consumption
  • Non-fused disconnect switch
  • Minimum load control
  • Low ambient head pressure control
  • ComfortLink™ controls with scrolling marquee display module
  • BACnet™ communication or BACnet and LON translator control
  • EXV (electronic expansion valve)
  • AlCu or CuCu condenser coil

Reliability Features

  • ASME constructed evaporators / ETL (and ETL Canada) listed
  • Heavy-gauge galvanized steel frame
  • Security grilles and Hail guards/Privacy screen choices
  • Low ambient head pressure control
  • Coil corrosion coatings available on all coil types
  • High short circuit current rating
  • EXV (Electronic expansion valve)

Maintenance Features

  • Over 15 diagnostic functions
  • Permanently lubricated fan motor bearings
  • Compressor suction service valves
  • Microchannel condenser coils with inherent corrosion resistance and offering simplified cleaning
  • Unit-mounted, non-fused disconnect
  • Remote service port for easier machine diagnostics

Installation Features

  • Factory charged with Puron refrigerant (R-410A)
  • Integrated hydronic pump package (with or without VFD) on sizes 060-190 (factory-installed option, but N/A with heat recovery option)
  • Desuperheater
  • Remote cooler kit
  • Single or dual-point electrical connections available
  • Integral control transformer
  • Structurally robust base

Standard Warranty

  • 3 year coil parts only on Novation microchannel heat exchanger
  • One year from start-up or 18 months from shipment limited warranty
  • Extended warranty packages available

Factory-Installed Options

  • High efficiency variable condenser fans (Greenspeed Intelligence)
  • Hydronic pump package with or without VFD (sizes 060-190)
  • Heat Reclaim
  • Condenser coil options:
    • Microchannel:
      • Non-coated
      • E-coated
    • Aluminum fins:
      • Non-coated
      • Pre-coated
      • E-coated
    • Copper fins:
      • Non-coated
      • E-coated
  • Non-fused disconnect
  • Minimum load control
  • Security grilles
  • Energy Management Module
  • Compressor sound reduction enclosures
  • Service option
  • Compressor suction service valve
  • Condenser coil trim panels
  • Condenser coil upper hail guards
  • Full end screen
  • BACnet™ Communication
  • BACnet™ translator control
  • LON (local operating network) translator control
  • Low ambient temperature head pressure control
  • Single or dual-point electrical connection
  • Freeze protection (cooler heaters)
  • Suction line insulation
  • High short circuit current rating
  • CRN cooler

Field-Installed Accessories

  • Minimum load control
  • Security grilles
  • Condenser coil full hail guards
  • Navigator™ display
  • Remote enhanced display
  • Chillervisor System Manger III multi-unit control
  • GFI convenience outlet
  • Energy Management Module
  • Touch Pilot™ display
  • LON (local operating network) translator control
  • BACnet™ translator control
  • Remote service port
  • Remote cooler
  • Condenser coil trim panels
  • Low ambient temperature head pressure control
  • Dual-chiller accessory kit

30RB Weights & Dimensions

Size Weight (lb) Weight (kg) Length (in) Length (mm) Width (in) Width (mm) Height (in) Height (mm)
060 3783 1716 94 2393 88 2236 90 2281
070 3978 1804 94 2393 88 2236 90 2281
080 4267 1934 94 2393 88 2236 90 2281
090 5449 2472 141 3587 88 2236 90 2281
100 5663 2569 141 3587 88 2236 90 2281
110 6027 2734 141 3587 88 2236 90 2281
120 7119 3229 188 4781 88 2236 90 2281
130 7402 3358 188 4781 88 2236 90 2281
150 8517 3863 188 4781 88 2236 90 2281
160 9475 4297 235 5975 88 2236 90 2281
170 9799 4443 235 5975 88 2236 90 2281
190 11064 5019 282 7169 88 2236 90 2281
210 12772 5793 282 7169 88 2236 90 2281
225 13093 5937 282 7169 88 2236 90 2281
250 14349 6509 329 8363 88 2236 90 2281
275 15647 7096 376 9557 88 2236 90 2281
300 16893 7659 423 10751 88 2236 90 2281

Notes

1) Indicated weight is for chiller employing MCHX condenser coils and incorporating no pump.
