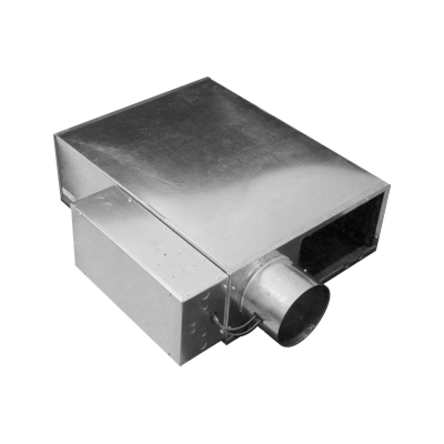

The AXIS™ 45Q Low-Profile Fan-Powered Terminal revolutionizes commercial HVAC with its compact build, delivering up to 1,550 CFM fan airflow and 1,430 CFM primary airflow. Designed to seamlessly integrate into tight ceiling spaces, this energy-efficient terminal ensures superior air distribution while maintaining optimal indoor air quality.
- AHRI 880 Certified
- ETL Listed
Features
Built with durable 20-gauge galvanized steel casing and equipped with airflow proving switches and dual thermal cutouts, ensuring dependable operation and air terminal reliability.
Designed with a removable bottom access panel and clear, detailed labeling for effortless inspections, servicing and performance checks, reducing maintenance time.
A low-profile design with a height of just 10-5/8 inches and factory-installed controls, mean quick and seamless installation in spaces with limited plenum clearance.
Compatible with multiple control options, casing liners and heating configurations, offering adaptability for specific climate control and HVAC air distribution requirements.
Experience the AXIS™ 45Q, a reliable, flexible air terminal designed to improve indoor air quality while ensuring consistent, energy-efficient climate control.
