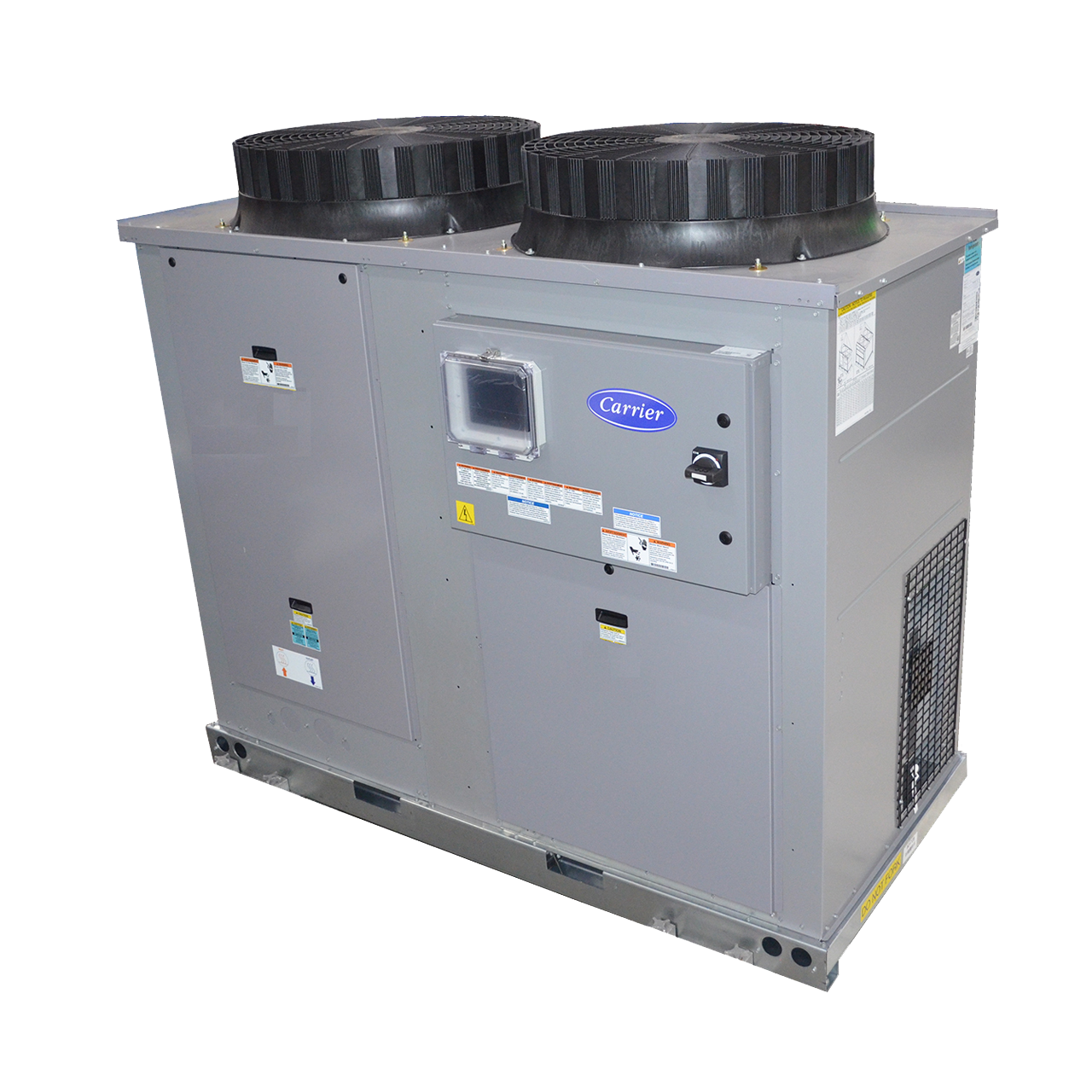

Gemini® Select Air-Cooled Outdoor Condensing Unit
Technical Specifications
At a glance
Compressor Type
ScrollRefrigerant
R-32Type
Condensing UnitCapacity
25 - 60 TonsFeatures
Performance Features
Condensing unit EERs up to 12.95 and IEER up to 18.35
Unit performance rated in accordance with AHRI Standard 365
Full capacity range dual-circuit units (025-60 sizes), single-circuit units (025-050 sizes)
Hermetic scroll compressors with option for digital compressor for superior part-load performance
Novation® microchannel heat exchanger (MCHX) condenser coils with option for E-coated Novation condenser coils and Aluminum Cooper with or without E-coat
Compressor with neoprene isolators and oil heater(s)
Reliability Features
Galvanized steel cabinet, bonderized and finished with baked enamel, 100-hour salt-spray test
High and low-pressure protection
Compressor overload protection
Loss of charge and low suction superheat protection
Self-contained 24V CCN (Carrier Comfort Network) controls including transformer
Low ambient head pressure control
UL, CSA, and ETL approved
Maintenance Features
Oil-level sight glass, filter driers, liquid line solenoid valve
Access panel accessibility to compressor and control box
Compressor suction service valves and liquid shutoff valves
Installation Features
Shipped with nitrogen holding charge
On-the-ground or rooftop installation
24V control circuit transformer permits quick, easy wiring of thermostats
Standard Warranty
One-year parts only compressor
One year parts only on all other parts
Extended warranty packages available
Options
Factory-Installed Options
Condenser coil options: Microchannel: Non-coated, E-coated, Aluminium fins/Copper tube: Non-coated, E-coated
Single-circuit (sizes 025-050), dual-circuit (sizes 025-060)
Non-fused disconnect
Low sound fans
Long line length check valves
High SCCR
Variable Speed Fans (Greenspeed) including low ambient control
PIC6 graphic display
BACNet IP or MSTP
Energy management module
Digital compressor
Field-Installed Accessories
Long line length check valves
Energy management module
BACnet translator control
LON translator control
Physical Data
| Size | Weight (lb/kg) | Weight (lb/kg) | Length (in/mm) | Width (in/mm) | Height (in/mm) | |
| MCHX | AlCu | |||||
| 38RCS025 | 1223/555 | 1295/587 | 89/2241 | 44/1021 | 78/1994 | |
| 38RCS027 | 1338/607 | 1428/648 | 89/2241 | 44/1021 | 78/1994 | |
| 38RCS030 | 1372/622 | 1461/663 | 89/2241 | 44/1021 | 78/1994 | |
| 38RCS040 | 2023/918 | 2168/983 | 89/2241 | 44/1021 | 78/1994 | |
| 38RCS050 | 2080/943 | 2259/1025 | 89/2241 | 96/2340 | 78/1994 | |
| 38RCD025 | 1223/555 | 1295/587 | 89/2241 | 96/2340 | 78/1994 | |
| 38RCD027 | 1338/607 | 1428/648 | 89/2241 | 96/2340 | 78/1994 | |
| 38RCD030 | 1372/622 | 1461/663 | 89/2241 | 96/2340 | 78/1994 | |
| 38RCD040 | 2149/975 | 2294/1041 | 89/2241 | 96/2340 | 78/1994 | |
| 38RCD050 | 2223/1008 | 2402/1090 | 89/2241 | 96/2340 | 78/1994 | |
| 38RCD060 | 2325/1055 | 2403/1090 | 89/2241 | 96/2340 | 78/1994 | |
