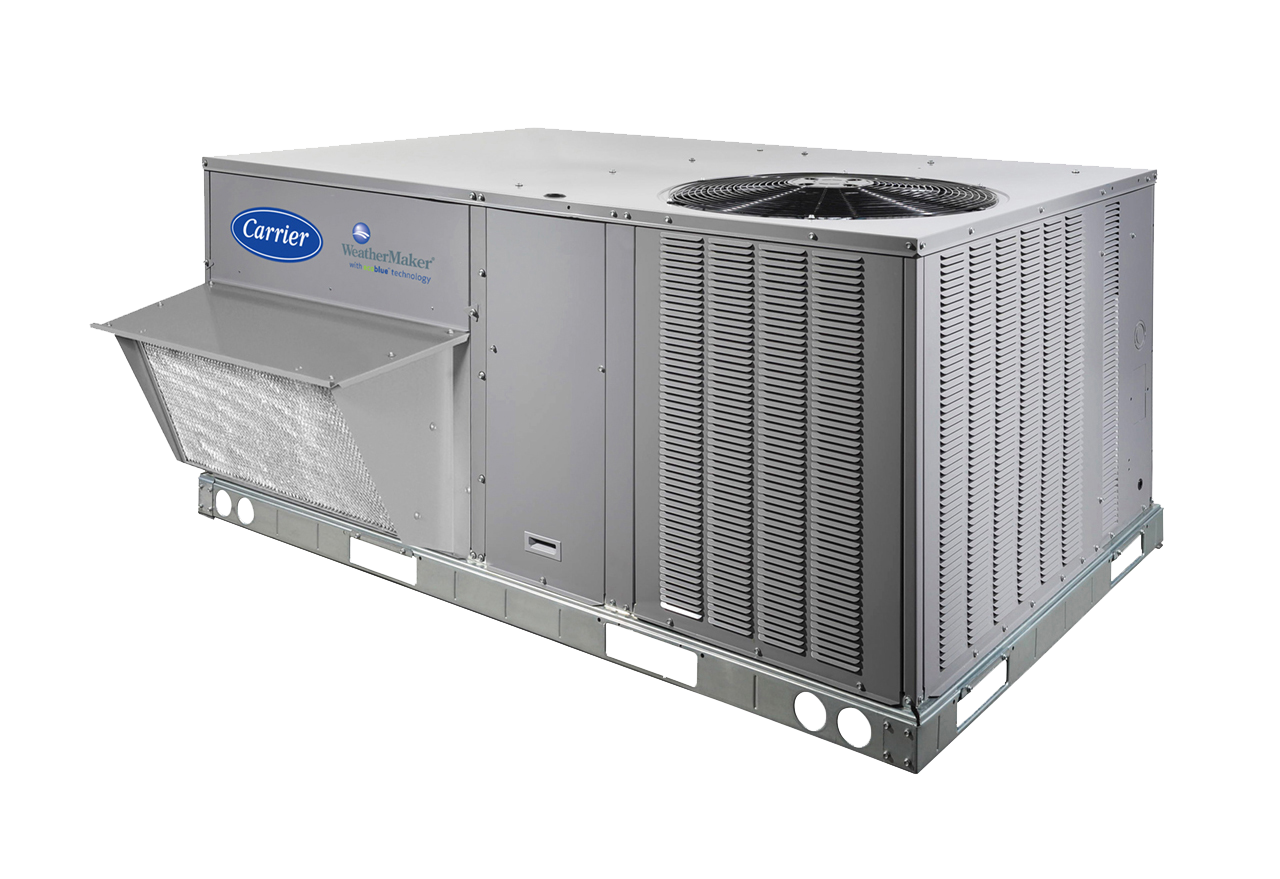

    WeatherMaker® Puron Advance™ Single-Packaged Rooftops Units with EcoBlue™ Technology 50FEQ

    WeatherMaker® 50FEQ Puron Advance™ Single-Packaged Rooftop Unit with EcoBlue™ Technology

    Technical Specifications

    At a glance

    Type

    Heat Pump

    Refrigerant

    R-454B

    Capacity Range

    3 - 25 Tons

    Efficiency (SEER/IEER)

    15.0

    Features

    Performance Features


    Puron Advance (R-454B) refrigerant meets and exceeds EPA’s new Low GWP requirements

    New unit control board with intuitive quick fan speed adjustment

    NEW – UL 60335-2-40 Certified A2L leak detection and dissipation system factory installed standard

    Direct Drive EcoBlue™ Technology indoor fan system uses Vane Axial fan design & electronically commutated motor

    Single-stage cooling capacity 04-06 models, two-stage on 07+ models

    SEER2s up to 13.4, HSPF2 up to 6.7

    IEER up to 15.0, COP up to 3.4

    Cooling operating range up to 115 °F (46°C) and down to 40°F (4°C)

    Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain

    Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection

    Units meet and exceed ASHRAE 90.1 energy efficiency levels.



    Maintenance Features


    New unit control board facilitating simple safety circuit troubleshooting and simplified control box arrangement as well as easy intuitive fan speed adjustment

    Access panels with easy grip handles

    Innovative, easy starting, no-strip screw feature on unit access panels

    Tool-less filter access door

    Optional hinged access panels also available

    NEW Direct Drive – EcoBlue™ Technology Indoor fan system uses Vane Axial fan design and electronically commutated motor with beltless design

    Two-inch disposable return air filters



    Installation Features


    Same footprint as prior Carrier models for that original fit; reduces installation costs and time

    Field convertible from vertical to horizontal airflow configuration

    Provisions for thru-the-bottom power entry capability as standard

    Single point electric, and controls connections

    Full perimeter base rail with built-in rigging adapters and fork truck slots



    Reliability Features


    A2L leak detection and dissipation system standard

    Scroll compressors with internal line-break overload protection

    24-volt control circuit protected with resettable circuit breaker

    Permanently lubricated direct-drive ECM evaporator-fan motor

    Totally enclosed condenser motors with permanently lubricated bearings

    Low pressure and high-pressure switch protection



    Standard Limited Warranty


    5 years electric heaters

    5 years parts only compressor

    3 year SystemVu™ controller

    One year parts only on all other parts

    Additional extended warranty packages available

    Options

    Factory-Installed Options


    Temperature Sensing Economizer with barometric relief

    Enthalpy Sensing Economizer with barometric relief

    Return Air Smoke Detector

    Supply Air Smoke Detector

    CO2 Sensor

    Condensate Overflow Protection

    Multiple Static Fan Capabilities

    Phase Monitor/Protection

    Thru-The-Base Utility Connections

    Louvered Hail Guards

    Non-Fused Disconnect Switch

    4" MERV-13 Filters

    Hinged Access Panels

    Unpowered Convenience Outlet

    Powered Convenience Outlet

    Coated Coils: Pre-Coat, E-Coat, Copper/Copper

    Electrical Mechanical Controls

    SystemVu™ Integrated Communicating Controls

    Physical Data

    Nominal Cooling Ton SizeCooling Stages AHRI Efficiency (SEER2) IEERDimensions
    (in) LxWxH    		At 47°FAt 17°F Approx Unit Weight
    (lbs)
    Heating Capacity (Btuh)(HSPF) COPHeating Capacity
    (Btuh)    		(HSPF) COP
    31Info to follow74 x 47 x 33Info to followInfo to followInfo to followInfo to followInfo to follow
    41Info to follow74 x 47 x 33Info to followInfo to followInfo to followInfo to followInfo to follow
    51Info to follow74 x 47 x 33Info to followInfo to followInfo to followInfo to followInfo to follow
    62Info to follow74 x 47 x 41Info to followInfo to followInfo to followInfo to followInfo to follow
    7.5215.088 x 59 x 49840003.40450002.25805
    8.5215.088 x 59 x 49900003.40490002.25867
    10215.088 x 59 x 491120003.40720002.25955
    12.5215.0115 x 63 x 571330003.30750002.051250
    152Info to follow127 x 86 x 49Info to followInfo to followInfo to followInfo to followInfo to follow
    202Info to follow141 x 86 x 57Info to followInfo to followInfo to followInfo to followInfo to follow
    252Info to follow141 x 86 x 57Info to followInfo to followInfo to followInfo to followInfo to follow



    AHRI = Air-Conditioning, Heating & Refrigeration Institute
    ASHRAE = American Society of Heating, Refrigerating and Air Conditioning, Inc.
    IEER = Integrated Energy Efficiency Ratio
    SEER2 = Seasonal Energy Efficiency Ratio 2
    HSPF2 = Heating Seasonal Performance Factor 2
    COP = Coefficient of Performance

    NOTES

    1. Rated and certified under ARI Standard 210/240 3-5 ton or 340/360 6+-ton, as appropriate.
    2. Ratings are based on:
      • Cooling Standard: 80°F (27°C) db, 67°F (19°C) wb indoor air temp and 95°F (35°C) db outdoor air temp.
    3. 50FEQ units generally comply with ASHRAE 90.1-2010 Energy Standard. Please review size specific data for compliance.
    4. 50FEQ units comply with US Energy Policy Act (2005).
