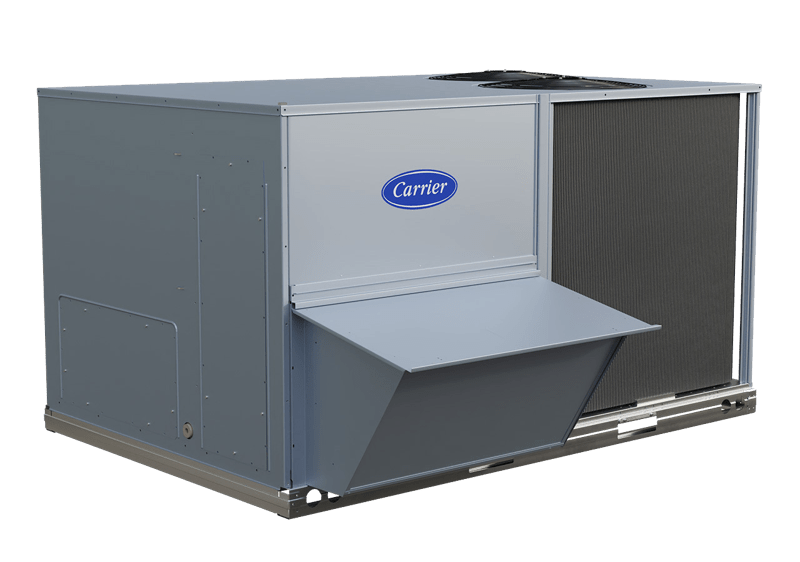

    WeatherMaster® Puron Advance™ Single-Packaged Rooftop Units with EcoBlue™ Technology

    Technical Specifications

    At a glance

    Type

    Gas Heat/Electric Cooling

    Refrigerant

    R-454B

    Capacity Range

    3 - 25 Tons

    Efficiency (SEER/IEER)

    16.8, 17.5

    Features

    Performance Features


    Puron Advance (R-454B) refrigerant meets and exceeds EPA’s new Low GWP requirements

    New – UL 60335-2-40 Certified A2L leak detection and dissipation system factory installed standard

    Direct Drive EcoBlue™ Technology indoor fan system uses Vane Axial fan design & electronically commutated motor

    Two-stage cooling capacity control on all models

    New Unit Control Board with intuitive quick fan speed adjustment

    SEER2 up to 16.8, IEER up to 17.5

    Gas efficiencies up to 81%

    Cooling operating range up to 125 °F (52°C) and down to 40°F (4°C) using winter start kit

    Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain

    Exclusive IGC solid-state control for on-board diagnostics with LED error code designation and burner control logic

    Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection

    Units meet ASHRAE 90.1 energy efficiency levels



    Maintenance Features


    New unit control board facilitating simple safety circuit troubleshooting and simplified control box arrangement as well as easy intuitive fan speed adjustment

    Access panels with easy grip handles

    Innovative, easy starting, no-strip screw feature on unit access panels

    Tool-less filter access door

    Optional hinged access panels also available

    NEW Direct Drive – EcoBlue™ Technology Indoor fan system uses Vane Axial fan design and electronically commutated motor with beltless design

    Two-inch disposable return air filters



    Installation Features


    Same footprint as prior Carrier models for that original fit; reduces installation costs and time

    Field convertible from vertical to horizontal airflow configuration on units up to 15 tons

    Provisions for thru-the-bottom power entry capability as standard

    Single point gas, electric, and controls connections

    Full perimeter base rail with built-in rigging adapters and fork truck slots



    Reliability Features


    A2L leak detection and dissipation system standard

    Scroll compressors with internal line-break overload protection

    24-volt control circuit protected with resettable circuit breaker

    Permanently lubricated direct-drive ECM evaporator-fan motor

    Totally enclosed condenser motors with permanently lubricated bearings

    Low pressure and high-pressure switch protection

    Exclusive IGC anti-cycle protection for gas heat operation

    Solid-state electronic direct spark ignition system and flame roll-out safety protector



    Standard Limited Warranty


    10 years parts only heat exchanger - aluminized

    15 years parts only heat exchanger - stainless steel

    10 years parts only heat exchanger – Ultra/Low NOx models

    5 years parts only compressor

    3 year SystemVu™ controller

    One year parts only on all other parts

    Additional extended warranty packages available

    Options

    Factory-Installed Options


    Temperature Sensing EconoMi$er with relief

    Enthalpy Sensing EconoMi$er with relief

    Humidi-MiZer® Adaptive Dehumidification System

    Multiple Gas Heat Sizes

    Stainless Steel Gas Heat Exchangers

    Return Air Smoke Detector

    Supply Air Smoke Detector

    CO2 Sensor

    Condensate Overflow Protection

    Multiple Static Fan Capabilities

    Phase Monitor/Protection

    Thru-The-Base Utility Connections

    Louvered Hail Guards

    Non-Fused Disconnect Switch

    4" MERV-13 Filters

    Low Ambient Controls

    Hinged Access Panels

    HACR

    Unpowered Convenience Outlet

    Powered Convenience Outlet

    Coated Coils: Pre-Coat, E-Coat, Copper/Copper

    Electrical Mechanical Controls

    SystemVu™ Integrated Communicating Controls

    Extended Warranty Protection Plans

    Physical Data

    Nominal Cooling Ton SizeCooling StagesAHRI Efficiency
    (SEER2) IEER    		Dimensions (in)
    LxWxH    		Low Gas Heating Input
    (Btuh)    		Medium Gas Heating Input
    (Btuh)    		High Gas Heating Input
    (Btuh)    		Approx. Unit Weight
    (lbs)
    32(16.8)74 x 46 x 3367110--535
    42(16.8)74 x 46 x 3367110150555
    52(16.8)74 x 46 x 3367110150600
    6217.588 x 59 x 4172125150775
    7.5217.588 x 59 x 49125180224893
    8.5217.588 x 59 x 49125180224893
    10217.588 x 59 x 491802242501037
    12.5216.5116 x 63 x 571501802401390
    152Info to follow
    17.52Info to follow
    202Info to follow
    252Info to follow



    AHRI = Air-Conditioning, Heating & Refrigeration Institute
    ASHRAE = American Society of Heating, Refrigerating and Air Conditioning, Inc.
    IEER = Integrated Energy Efficiency Ratio
    SEER2 = Seasonal Energy Efficiency Ratio 2

    NOTES

    1. Rated and certified under ARI Standard 210/240 3-5 ton or 340/360 6+ ton, as appropriate.
    2. Ratings are based on:
      • Cooling Standard: 80°F (27°C) db, 67°F (19°C) wb indoor air temp and 95°F (35°C) db outdoor air temp.
    3. 48GE units generally comply with ASHRAE 90.1-2016 Energy Standard. Please review size specific data for compliance.
