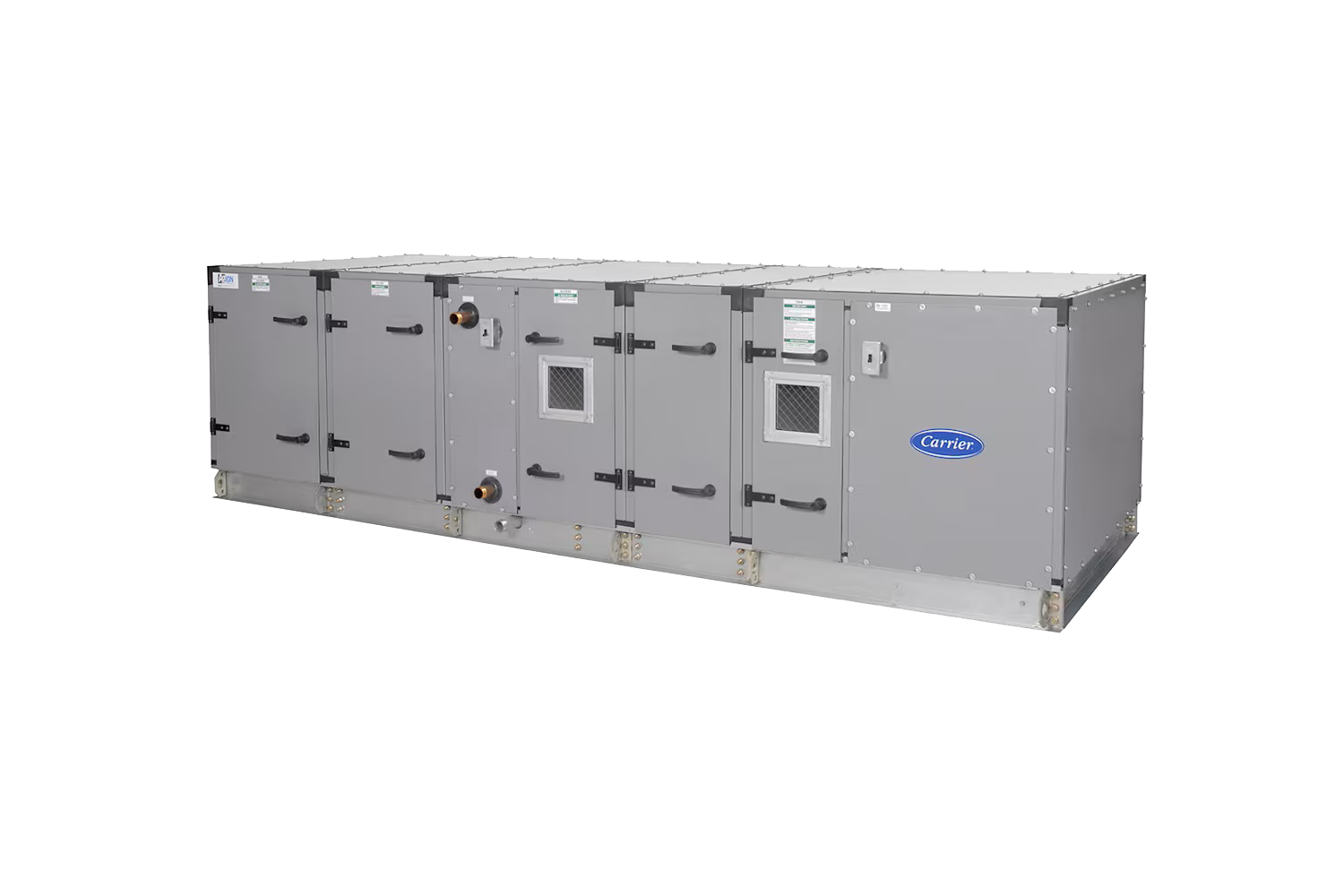

AERO® 39M Semi-Custom Central Station Air Handler
Technical Specifications
At a glance
Model
39MNIndoor
Model
39MWOutdoor
Airflow Range
1,500 - 60,500Nominal CFM
Construction
Custom Double-WallApplication
Indoor, OutdoorFeatures
Performance Features
All units are shrink wrapped for complete protection while in transit
Maximum deflection ratio of L/240 at 8 in. wg.
Casing air leakage rate less than 1% at 8 in. wg. of unit nominal airflow
Doublewall panel construction, insulation is sealed between the inner and outer panels
Thermal break casing construction
Optional factory mounted controls
Chilled water, hot water, direct expansion (DX), electric and steam coils
Tubular indirect fired gas furnace option with a minimum of 10:1 turndown
Ultraviolet band C (UV-C) germicidal lamps
Multiple filtration from pleated MERV 8 to HEPA filters
Energy recovery ventilator (ERV) sections
Multiple fan options
Humidifiers for precise indoor climate conditioning
Internal and external face and bypass damper sections
Reliability Features
Optional 18 gauge exterior and/or interior skin
Standard insulated, fully drainable, sloped drain pans in galvanized or stainless steel
Maintenance Features
Optional prepainted and/or galvanized unit exterior
Optional aluminum diamond treadplate floors
All service may be performed through large, removable or hinged with lockable handle panels
Marine lights and viewports for interior component inspection
Installation Features
Units may be mounted in ceilings, closets, attics, etc.
Variable frequency drives are programmed and started up at the factory
Casing can be broken-down to individual panels and frame members
Options
Factory-Installed Options
Filter options from MERV 8 flat filters to face loaded HEPA filters
Water coils
Refrigerant coils
Steam coils
Electrical heat
Tubular indirect fired gas furnaces
Humidifiers
Sound attenuators
Energy recovery ventilator wheel (ERV) sections
Physical Data
| Unit Size | Nominal Airflow* (Cfm) | Height*** (in) | Width (in) |
| 03W | 1500 | 37 | 33 |
| 06W | 3000 | 37 | 46 |
| 07T | 3500 | 60 | 39 |
| 08W | 4000 | 40 | 54 |
| 09T | 4500 | 57 | 42 |
| 10W | 5000 | 40 | 67 |
| 11T | 5500 | 66 | 45 |
| 12T | 6000 | 66 | 48 |
| 12W | 6000 | 47 | 67 |
| 14W | 7000 | 47 | 72 |
| 16T | 8000 | 75 | 51 |
| 17W | 8500 | 50 | 79 |
| 18T | 9000 | 78 | 54 |
| 21W | 10500 | 60 | 79 |
| 22T | 11000 | 84 | 60 |
| 25T | 12500 | 89 | 61 |
| 25W | 12500 | 60 | 86 |
| 30T | 15000 | 89 | 72 |
| 30W | 15000 | 60 | 104 |
| 35T | 17500 | 92 | 80 |
| 36W | 18000 | 71 | 109 |
| 37T | 18500 | 108 | 72 |
| 40W | 20000 | 77 | 109 |
| 42T | 21000 | 107 | 80 |
| 50W | 25000 | 87 | 117 |
| 51T | 25500 | 107 | 93.5 |
| 58T | 29000 | 120 | 93.5 |
| 61W | 30500 | 102 | 117 |
| 72W | 36000 | 113 | 120 |
| 85W | 42500 | 113 | 139 |
| 96W | 48000 | 126 | 139 |
| 110W | 55000 | 126 | 157 |
*Airflow is based upon 500ft/min face velocity.
**Airway length is dependent upon selected components. Check the product catalog for individual airway length of components.
***Unit height includes 6-in. base rail on an indoor unit. Other base rail height options are available.
