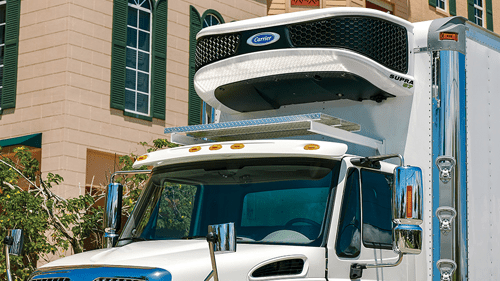

Supra® S7 Diesel Truck Refrigeration Unit
Technical Specifications
Condenser Dimensions
75.4" x 32.1" x 24.2"(1,914 x 815 x 615 mm)
Evaporator Dimensions
48.2" x 21.7" x 11.4"(1,225 x 550 x 290 mm)
Body Opening
49.0" x 12.2"(1,245 x 310 mm)
Approximate Weight
TDB-57: 860 lb (390 kg) without standby; TDS-57: 955 lb (434 kg) with electric standbyCooling/Temperature Capacity:
Ambient at 100°F (38°C); Speed: 2,000 rpm diesel/ 60 Hz electric standby| Evaporator Return Air Temp. | Diesel Operation | Standby Operation | ||
| BTU/hr | Watts | BTU/hr | Watts | |
| 35°F ( 2°C) | 19,000 | 5,568 | 19,000 | 5,568 |
| 0°F (-18°C) | 12,000 | 3,517 | 12,000 | 3,517 |
| -20°F (-29°C) | 6,000 | 1,758 | 6,000 | 1,758 |
