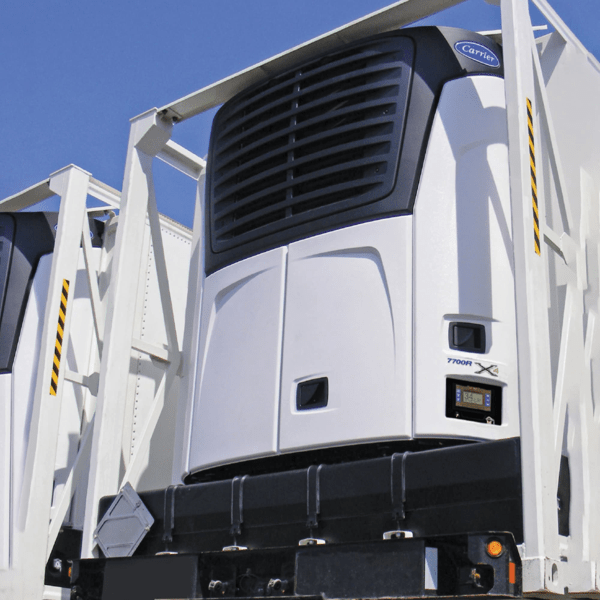

X4™ 7700R Rail Refrigeration Unit
Technical Specifications
Functionality
Single-temperature railPower source
DieselNationwide Service Network
More than 180 authorized dealers availableCondenser Dimensions
76.4" x 85.7" x 22.8"(1,940 x 2,176 x 579 mm)
Evaporator Dimensions
66.3" x 45.2" x 8.2"(1,684 x 1,149 x 208 mm)
Body Opening
66.8" x 46.0"(1,696 x 1,168 mm)
Approximate Weight
1,695 lb.(769 kg)
Evaporator Airflow
3,050 CFM(5,180 m³/hr)
Cooling Capacity (Ambient at 100°F (38°C))
| Evaporator Return Air Temperature | Diesel Operation: BTU/hr | Diesel Operation: Watts |
| 35°F (2°C) | 68,000 | 19,930 |
| 0°F (-18°C) | 37,000 | 10,845 |
| -20°F (-29°C) | 24,000 | 7,034 |
