Cooling Efficiency
Heating Efficiency
Comfort Features
Email product info

heats Heats your indoor environment, using natural gas, oil, propane or electric power.
cools Cools the air. May be either a heat pump or an air conditioner.
puron Puron refrigerant is an environmentally sound refrigerant designed not to harm the earth's ozone layer.
estar Products with the ENERGY STAR® logo are qualified to earn the U.S. government's designation for superior energy efficiency to help save costs on energy bills.
taxcredit Geothermal products that qualify for tax credits of up to 30% their installed cost.

Overview

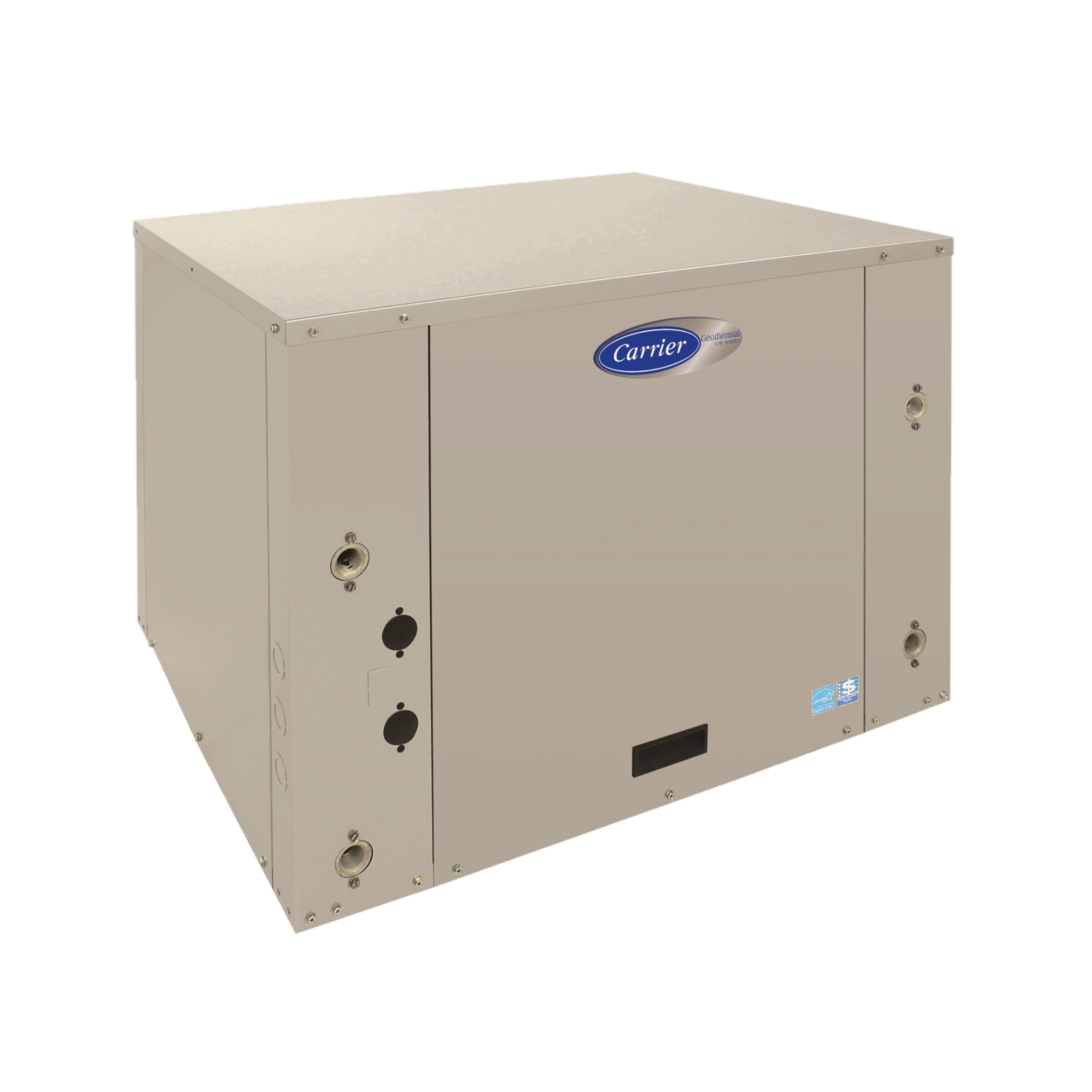

This geothermal heat pump delivers the comfort with hot water for your radiant or hydronic system. It can also help cut your costs for domestic hot water production.

If your needs extend to cooling, in some cases, this model's innovative design can also work in conjunction with a hydronic air handler to utilize chilled water to produce cool air for your home in the summertime.


Features

STANDARD FEATURES

  • Designed for a wide range of radiant/hydronic applications
  • Capable of being utilized for cooling when paired with a hydronic air handler
  • Two-stage scroll compressor
  • Insulated cabinet and compressor blanket for quiet operation
  • Large operating temperature range
  • Microprocessor control for precision operation
  • Non-ozone depleting Puron® refrigerant
  • 10-year parts and labor limited warranty1

OPTIONAL FEATURES

  • Supplemental, domestic hot water generation
  • Field-installed, low draw, smooth start device


1 To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.

Specifications

EFFICIENCY

  • Closed loop cooling: Up to 22.1 EER
  • Closed loop heating: Up to 3.2 COP
  • Open loop cooling: Up to 25.7 EER
  • Open loop heating Up to 3.8 COP
  • ENERGY STAR ® qualified in all sizes

PERFORMANCE

  • Excellent cold weather performance
  • Sound: Quiet operation

TECHNOLOGY

  • Two-stage scroll compressor
  • Sound enhancements: Fully insulated cabinet, compressor blanket and double-isolation compressor mounting system
  • Microprocessor control board
  • Recommended control: PerformanceEdge® relative humidity thermostat

CAPACITIES

  • 2-5 and 10 ton cooling capable
  • 24,000-60,000 and 120,000 Btu/h heating

REQUIREMENTS

  • 208/230 V

AESTHETICS

  • Heavy-duty, galvanized steel cabinet
  • Baked on urethane base coat and polyester top coat paint in taupe metallic

Documents

No result found for "GW "

We can't find any documents for the product you are viewing.

For more information about the product, please contact your local Carrier® expert.

California residents please see Proposition 65.
