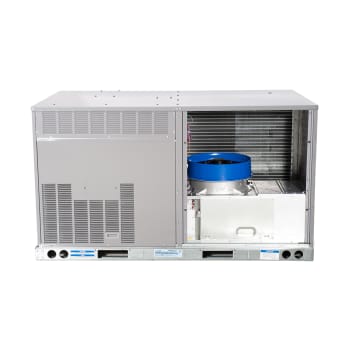

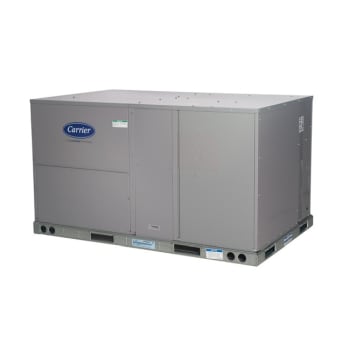

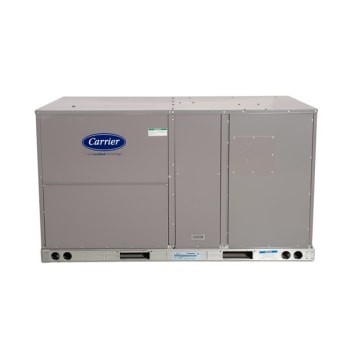

Toshiba Carrier VRF Rooftop Unit w/Vane Axial Fan
40QQ-E
The Toshiba Carrier Variable Refrigerant Flow (VRF) rooftop unit with Vane Axial Fan (VAF) technology is ideal for existing rooftop replacement application. Options like electric heat with single-point power connection, horizontal or vertical discharge, economizer and use of existing curb can help make a replacement job go faster and become more cost effective with minimal down time.
Overview
The Toshiba Carrier Variable Refrigerant Flow (VRF) rooftop unit with Vane Axial Fan (VAF) technology is a 3-to-5 ton capacity system perfectly suited for existing rooftop replacement applications. Delivering 36,000 to 60,000 Btuh, this unit empowers businesses with an energy-efficient solution designed to make replacement jobs faster and more cost-effective while keeping downtime to an absolute minimum. At Carrier, our innovative solutions are centered on our customers’ needs, ensuring seamless integration, enhanced climate control, and a focus on a sustainable future.
Features
Designed to match the footprint of installed Carrier 3-to-5 ton rooftops dating back to 1989, this unit allows you to utilize your existing roof curb. This intelligent design choice drastically reduces installation time and labor costs, ensuring a smooth transition for your facility.
Built to withstand harsh environmental conditions, the unit features prepainted exterior panels rigorously tested for 500 hours of salt spray protection. Powered by a direct-drive ECM motor, it delivers increased energy efficiency and maximum reliability to keep your building comfortable year-round.
At a glance
Type
Rooftop unitCapacity Range
3.0 - 5.0 TonsThe 40QQ-E VRF rooftop unit is designed for efficient rooftop replacement. Flexible options help reduce installation time, cost, and downtime.
Documents
Brochure
Toshiba Carrier VRF: K-12 Education Flyer
Toshiba Carrier u-Series Marketing Brochure
Guide Specifications
Toshiba Carrier VRF Rooftop Unit Guide Specification (40QQ----ABA--0A0)
Installation
Toshiba Carrier Rooftop Unit Installation Manual
Wireless Remote Control Installation Manual
Operation
Wireless Remote Control Installation Manual
Product Data
Toshiba Carrier Rooftop Unit Engineering Databook
REVIT and 3D DRW Files
Toshiba Carrier VRF 3 - 5 Ton Rooftop Unit Revit Family
Submittal
Toshiba Carrier Rooftop Unit Submittal Drawing (36.0 Kbtu, 208/230V-1-60Hz)
Toshiba Carrier Rooftop Unit Submittal Drawing (48.0 Kbtu, 208/230V-1-60Hz)
Toshiba Carrier Rooftop Unit Submittal Drawing (60.0 Kbtu, 208/230V-1-60Hz)
Toshiba Carrier Rooftop Unit Submittal Drawing (36.0 Kbtu, 460V-3-60Hz)
Toshiba Carrier Rooftop Unit Submittal Drawing (48.0 Kbtu, 460V-3-60Hz)
Toshiba Carrier Rooftop Unit Submittal Drawing (60.0 Kbtu, 460V-3-60Hz)
Warranty Card
Limited Warranty for Variable Refrigerant Flow Units
