3-Phase Heat Recovery
38VMR

72,000 to 336,000 Btuh
6.0 to 28.0 Tons

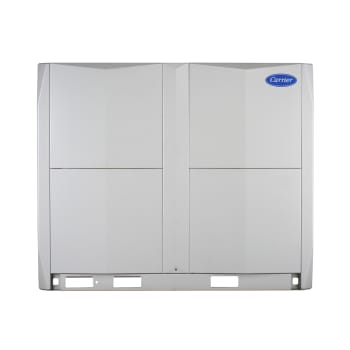

The Carrier 38VMR VRF 2-pipe heat recovery system is a combination of an outdoor unit with multiple style indoor units connected by refrigerant piping and wiring. Heat recovery outdoor unit lineup is a single module up to 28 tons, available as small and medium cabinet size.

Compatible Indoor Units & Controls

The 38VMR heat pump system can be matched with the following indoor units and controls: 40VMA, 40VMC, 40VMD, 40VMF, 40VMH, 40VML, 40VMM, 40VMR, 40VMU, 40VMV, 40VMW & 40VM9 (controller)

Product Features

  • Available in 6 – 28 ton non modular design
  • Industries most compact 20 ton VRF system
  • Ability to connect up to 64 indoor units
  • 2-pipe heat recovery system
  • High performance outdoor units with all inverter driven scroll compressor
  • DC inverter condenser fan motor
  • 208/230-3-60Hz or 460-3-60Hz voltage
  • Cooling ambient operating temperature is 14⁰ F to 122⁰ F and heating ambient operating temperature is -13⁰ F to 60⁰ F
  • Connected capacity is up to 150%

Reliability Features

  • All equipment wiring complies with NEC requirements
  • Unit constructed in accordance with ETL requirements
  • Unit performance is in accordance with AHRI 1230 standards
  • Compressor and condenser fan motor are inverter driven
  • Finned tube heat exchanger
  • Suitable for R-410a refrigerant

Installation Features

  • System utilizes 2 pipes to connect to multiport distribution controller(s)and up to 64 indoor units
  • Integrated controls design allows for complete system control
  • Single power connection for 28 ton systems
  • System utilize quick connect controls system

ALL PARTS LIMITED WARRANTY

Company provides a Five-Year Limited Warranty on all parts and components, except refrigerant, air filters and filter driers which are not included in any part of the limited warranty.

SEVEN YEAR LIMITED WARRANTY ON COMPRESSOR ONLY

Company provides a Seven-Year Parts Only Limited Warranty on the Compressor.

Product Features

  • Available in 6 – 28 ton non modular design
  • Industries most compact 20 ton VRF system
  • Ability to connect up to 64 indoor units
  • 2-pipe heat recovery system
  • High performance outdoor units with all inverter driven scroll compressor
  • DC inverter condenser fan motor
  • 208/230-3-60Hz or 460-3-60Hz voltage
  • Cooling ambient operating temperature is 14⁰ F to 122⁰ F and heating ambient operating temperature is -13⁰ F to 60⁰ F
  • Connected capacity is up to 150%

Reliability Features

  • All equipment wiring complies with NEC requirements
  • Unit constructed in accordance with ETL requirements
  • Unit performance is in accordance with AHRI 1230 standards
  • Compressor and condenser fan motor are inverter driven
  • Finned tube heat exchanger
  • Suitable for R-410a refrigerant

Installation Features

  • System utilizes 2 pipes to connect to multiport distribution controller(s)and up to 64 indoor units
  • Integrated controls design allows for complete system control
  • Single power connection for 28 ton systems
  • System utilize quick connect controls system

ALL PARTS LIMITED WARRANTY

Company provides a Five-Year Limited Warranty on all parts and components, except refrigerant, air filters and filter driers which are not included in any part of the limited warranty.

SEVEN YEAR LIMITED WARRANTY ON COMPRESSOR ONLY

Company provides a Seven-Year Parts Only Limited Warranty on the Compressor.
