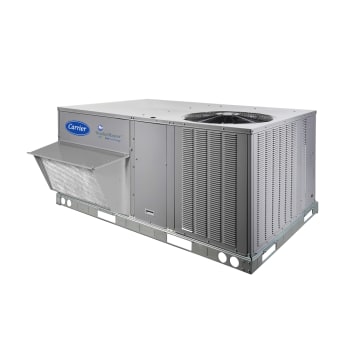

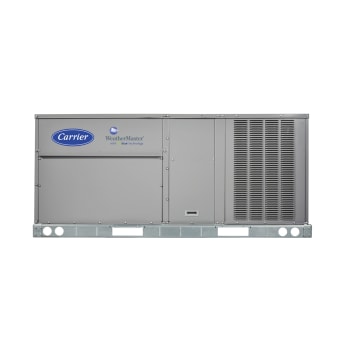

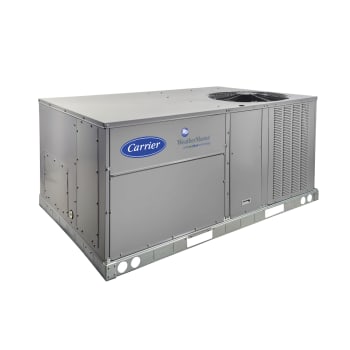

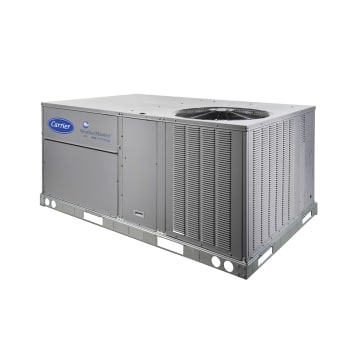

WeatherMaster® Single-Packaged Rooftop Units with EcoBlue™ Technology
48GC

High Efficient Gas Heating / Electric Cooling

3 to 12.5 Nominal Tons

Exclusive, new EcoBlue™ Technology was designed to improve performance and efficiency while decreasing maintenance and installation costs. The industry’s first beltless direct-drive vane axial fan for rooftop units* is just one of many technological advances that prove that not all rooftop units are created equal. Other enhancements include a new control board and coil technology, permanently lubricated motor bearings, tool-less filter access doors and more – all available on this multiefficiency offering.

*Available on select models


carrier-AHRI-210-240-Unitary-Small-AC
carrier-ul-registered-mark

Performance Features

  • Meets and exceeds ASHRAE 90.1 energy efficiency levels
  • New unit control board with intuitive, quick fan speed adjustment
  • NEW Direct Drive – EcoBlue™ Technology Indoor fan system uses Vane Axial fan design and electronically commutated motor with beltless design
  • Two-stage cooling capacity control on all models
  • SEER to 16.0
  • Gas efficiencies up to 82%
  • Cooling operating range up to 125 °F (52°C) and down to 35°F (2°C)
  • Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
  • Exclusive IGC solid-state control for on-board diagnostics with LED error code designation, burner control logic and energy saving indoor fan motor delay
  • Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection

Maintenance Features

  • Access panels with easy grip handles
  • Innovative, easy starting, no-strip screw feature on unit access panels
  • Tool-less filter access door
  • Optional hinged access panels also available
  • Two-inch disposable return air filters

Installation Features

  • Same footprint as prior Carrier models for that original fit, reduces installation costs and time
  • Field convertible from vertical to horizontal airflow configuration
  • Provisions for thru-the-bottom power entry capability as standard
  • Single point gas, electric, and controls connections
  • Full perimeter base rail with built-in rigging adapters and fork truck slots

Reliability Features

  • Scroll compressors with internal line-break overload protection
  • 24-volt control circuit protected with resettable circuit breaker
  • Permanently lubricated direct-drive ECM evaporator-fan motor
  • Totally enclosed condenser motors with permanently lubricated bearings
  • Low pressure and high-pressure switch protection
  • Exclusive IGC anti-cycle protection for gas heat operation
  • Solid-state electronic direct spark ignition system and flame roll-out safety protector

Standard Limited Warranty

  • 10 years parts only heat exchanger - aluminized
  • 15 years parts only heat exchanger - stainless steel
  • 5 years parts only compressor
  • 3 years SystemVu™ controller
  • One year parts only on all other parts
  • Additional extended warranty packages available

Factory-Installed Options

  • Temperature Sensing EconoMi$er with relief
  • Enthalpy Sensing EconoMi$er with relief
  • Humidi-MiZer® Adaptive Dehumidification System
  • Multiple Gas Heat Sizes
  • Stainless Steel Gas Heat Exchangers
  • Return Air Smoke Detector
  • Supply Air Smoke Detector
  • CO2 Sensor
  • Condensate Overflow Protection
  • Multiple Static Fan Capabilities
  • Phase Monitor/Protection
  • Thru-The-Base Utility Connections
  • Louvered Hail Guards
  • Non-Fused Disconnect Switch
  • HACR Breaker
  • Electric Heaters
  • Low Ambient Controls
  • Foil Face Insulation
  • MERV-8 Return Air Filters
  • Hinged Access Panels
  • Unpowered Convenience Outlet
  • Powered Convenience Outlet
  • Coated Coils:
    • Pre-Coat
    • E-Coat
    • Copper/Copper
  • Electrical Mechanical Controls
  • SystemVu™ Integrated Communicating Controls
  • RTU-Open Communicating Controls
  • Extended Warranty Protection Plans
  • Financing Available

Gas Heating/Electric Cooling Models (48GC)

Nominal Cooling Ton Size Cooling Stages AHRI Efficiency SEER Dimensions (in) LxWxH Low Gas Heating Input (Btuh) Medium Gas Heating Input (Btuh) High Gas Heating Input (Btuh) Approx. Unit Weight (lbs)
3 2 (16.0) 74 x 47 x 33 67 110 -- 513
4 74 x 47 x 41 150 555
5 600
6 17.5 88 x 59 x 41 72 125 775
7.5 88 x 59 x 49 125 180 224 893
8.5 17.3
10 17.2 180 224 250 1037
12.5 16.5 115 x 63 x 57 240 1390
15 16.7 128 x 86 x 49 220 310 400 1771
17.5 16.5 141 x 86 x 49 2008
20 16.6 141 x 86 x 57 2240
25 15.2 157 x 86 x 57 2423

AHRI = Air-Conditioning, Heating & Refrigeration Institute
ASHRAE = American Society of Heating, Refrigerating and Air Conditioning, Inc.
IEER = Integrated Energy Efficiency Ratio
SEER = Seasonal Energy Efficiency Ratio

NOTES
1. Rated and certified under ARI Standard 210/240 3-5 ton or 340/360 6+ ton, as appropriate.
2. Ratings are based on:
» Cooling Standard: 80°F (27°C) db, 67°F (19°C) wb indoor air temp and 95°F (35°C) db outdoor air temp.
3. 48GC units generally comply with ASHRAE 90.1-2016 Energy Standard. Please review size specific data for compliance.
4. 48GC units comply with US Energy Policy Act (2005). To evaluate code compliance requirements, refer to state and local codes or visit the following website: http://bcap-energy.org
