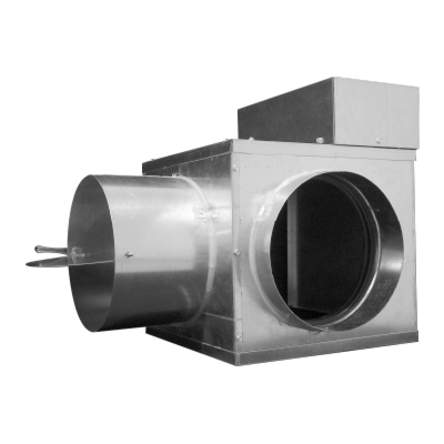

AXIS™ Single-Duct VAV Bypass Terminal 35K
AXIS™ Single-Duct VAV Bypass Terminal
35K
200 to 4,000 Cfm
The 35K VAV bypass terminal is designed to maintain optimum occupant comfort by varying the amount of cold air supplied to a zone from a constant volume air handler. The unit’s small size ensures an easy fit in all applications.
Performance Features
- Airflow capacities from 200 to 4400 cfm
- Round inlet sizes from 6 in. through 18 in. diameter
- Rectangular inlet on size 22
- 20 gauge, galvanized steel casing construction
- Single-blade design results in fewer parts
- Manual discharge damper with no spring loaded parts
- Unit casing lined with ½ in. thick, 1½ lb dual density fiberglass
- Low pressure drop
Reliability Features
- Insulation meets UL-181 and NFPA-90A requirements
Maintenance Features
- Label information adhered to each unit includes model, size, airflow (cfm), balancing chart, and tagging data
Installation Features
- Side bypass discharge for easy access to balancing dampers
- Factory-installed controls
- All round collars accommodate standard spiral and flex duct sizes
Standard Warranty
- One-year parts
Factory-Installed Options
- Control options:
- Analog controls
- Pneumatic controls
- Hanger brackets
Field-Installed Accessories
- Manual inlet damper
Performance Features
- Airflow capacities from 200 to 4400 cfm
- Round inlet sizes from 6 in. through 18 in. diameter
- Rectangular inlet on size 22
- 20 gauge, galvanized steel casing construction
- Single-blade design results in fewer parts
- Manual discharge damper with no spring loaded parts
- Unit casing lined with ½ in. thick, 1½ lb dual density fiberglass
- Low pressure drop
Reliability Features
- Insulation meets UL-181 and NFPA-90A requirements
Maintenance Features
- Label information adhered to each unit includes model, size, airflow (cfm), balancing chart, and tagging data
Installation Features
- Side bypass discharge for easy access to balancing dampers
- Factory-installed controls
- All round collars accommodate standard spiral and flex duct sizes
Standard Warranty
- One-year parts
Factory-Installed Options
- Control options:
- Analog controls
- Pneumatic controls
- Hanger brackets
Field-Installed Accessories
- Manual inlet damper
