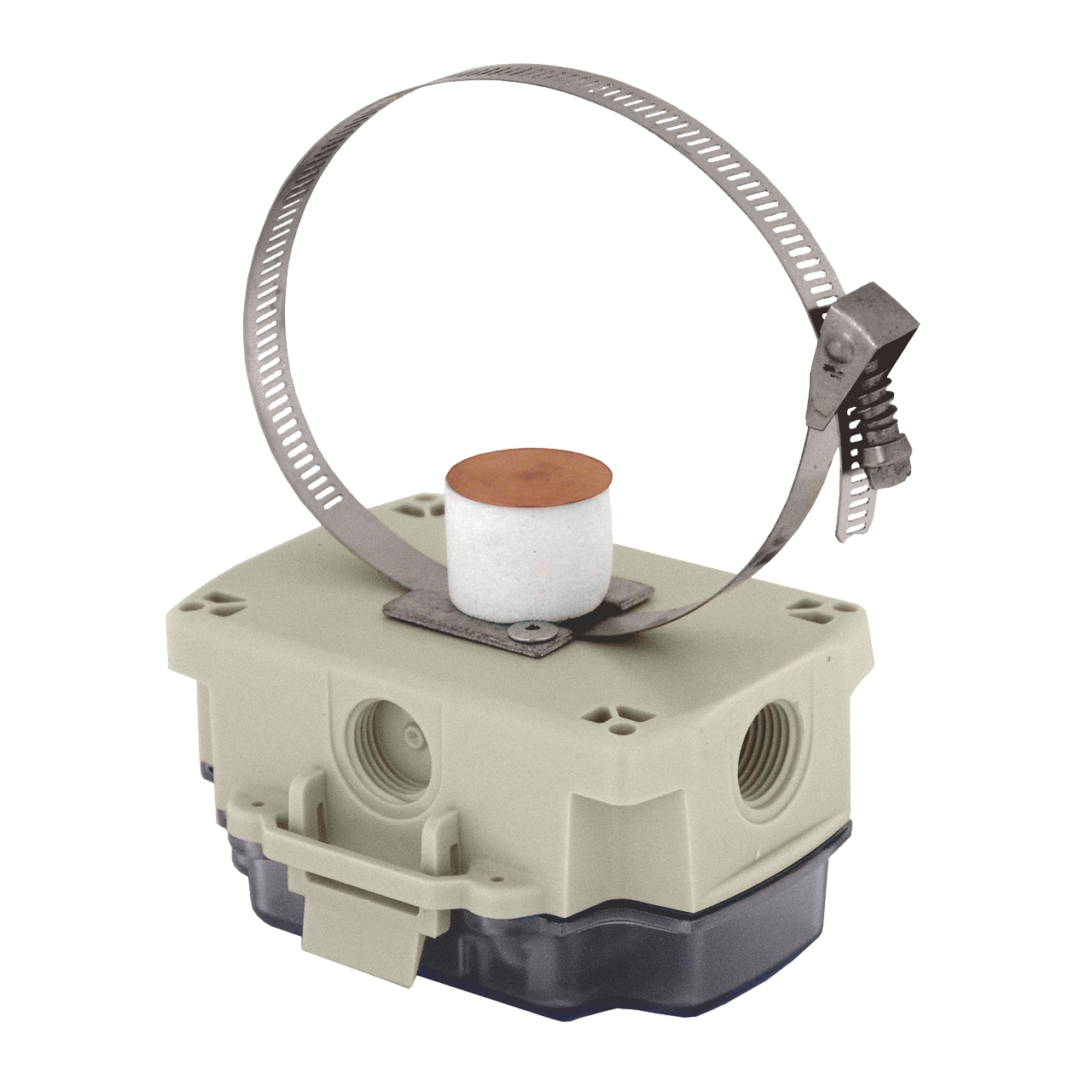

ZS Sensor Applications Guide
Technical Specifications
Specifications
| Sensor | Range: 20° to 120°F (-5° to 50°C) Accuracy: ±0.9°F (0.5°C) | |
| Enclosure Material | Polycarbonate, UL94V-0 | |
| Enclosure Rating | NEMA 4, IP66, UV rated | |
| Enclosure Dimensions | Width: 5 in. (12.7 cm) Height: 4.15 in. (10.54 cm) Depth: 2.5 in. (6.35 cm) | |
| Sensor Pad | 1.25” (3.18 cm) diameter copper | |
| Power Requirements | 12 Vdc @ 6 mA | |
| Power Supply | The 4-conductor Rnet cable from a controller supplies +12 Vdc @ 210 mA. For additional power, use an external power supply. Use the above power requirements to calculate the size of the external power supply. The controller and the external power supply must share a common ground. | |
| Communication | 115 kbps | |
| Environmental operating range | -40 to 158°F (-40 to 70°C) | |
| Mounting | .5 in. (1.27 cm) stainless steel worm gear hose clamp | |
| Listed by | FCC Part 15-Subpart B-Class B, CE |
