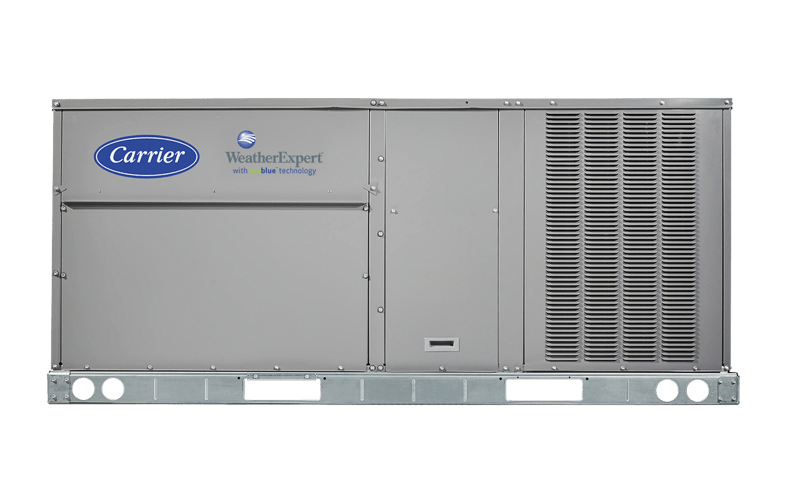

WeatherExpert® Ultra High Efficiency, Variable-Speed Single-Packaged Rooftop Unit with EcoBlue™ Technology
Technical Specifications
At a glance
Type
Gas Heat/Electric CoolingRefrigerant
R-410ACapacity Range
3 - 5 TonsEfficiency (SEER)
20.0Features
Performance Features
Meets and exceeds ASHRAE 90.1 energy efficiency levels
NEW Direct Drive – EcoBlue™ Technology Indoor fan system uses Vane Axial fan design and electronically commutated motor with beltless design
Variable speed cooling capacity control on all models
SEER to 20.0
Gas efficiencies up to 81%
Cooling operating range up to 125 °F (52°C) and down to 0°F (-18°C)
Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
Exclusive IGC solid-state control for on-board diagnostics with LED error code designation, burner control logic and energy saving indoor fan motor delay
Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
Fully insulated cabinet with foil-faced insulation
Maintenance Features
Access panels with easy grip handles
Innovative, easy starting, no-strip screw feature on unit access panels
Tool-less filter access door
Optional hinged access panels also available
Two-inch disposable return air filters
Installation Features
Same footprint as prior Carrier models for that original fit, reduces installation costs and time
Field convertible from vertical to horizontal airflow configuration
Provisions for thru-the-bottom power entry capability as standard
Single point gas, electric, and controls connections
Full perimeter base rail with built-in rigging adapters and fork truck slots
Reliability Features
Variable speed scroll compressors with internal line-break overload protection
24-volt control circuit protected with resettable circuit breaker
Permanently lubricated variable speed direct-drive ECM evaporator-fan motor
Totally enclosed variable speed condenser motor with permanently lubricated bearings
Low pressure and high pressure switch protection
Exclusive IGC anti-cycle protection for gas heat operation
Solid-state electronic direct spark ignition system and flame roll-out safety protector
Standard SystemVu™ Controls
Large full text display – multi line display
USB flash port for data transfer
Built in i-Vu®, CCN and BACnet®
Refrigerant pressure from display
Quick LED Status – Run, Alert, Fault
Conventional stat or sensor capabilities
Historical component runtime and starts
Supply air tempering
Equipment / System Touch compatibility
Demand limiting and ZS sensor compatibility
Supports linkage on zoning systems using CNN, VVT and i-Vu® Open VVT controls
Standard Limited Warranty
10 years parts only heat exchanger - aluminized
15 years parts only heat exchanger - stainless steel
5 years parts only compressor
3 years SystemVu™ controller
One year parts only on all other parts
Additional extended warranty packages available
Options
Factory-Installed Options
Temperature Sensing EconoMi$er with relief
Enthalpy Sensing EconoMi$er with relief
Humidi-MiZer® Adaptive Dehumidification System
Multiple Gas Heat Sizes
Stainless Steel Gas Heat Exchangers
Return Air Smoke Detector
Supply Air Smoke Detector
CO2 Sensor
Condensate Overflow Protection
Multiple Static Fan Capabilities
Phase Monitor/Protection
Thru-The-Base Utility Connections
Louvered Hail Guards
Non-Fused Disconnect Switch
HACR Breaker
MERV-8 Return Air Filters
Hinged Access Panels
Unpowered Convenience Outlet
Powered Convenience Outlet
Coated Coils: Pre-Coat, E-Coat, Copper/Copper
Extended Warranty Protection Plans
Financing Available
