Delivers 45 in-lb (5 Nm) torque to manage damper operations with precision and efficiency.
Overview
The ClimaVision Damper Actuator offers unmatched precision and reliability in commercial HVAC automation. With its modulating control, brushless DC motor, and 45 in-lb torque, this actuator ensures seamless performance for VVT or VAV applications. Its 95° rotation capability, intuitive position feedback and overload protection simplify installation and operation while enhancing energy efficiency. Designed with a durable construction and advanced control functions, the ClimaVision Damper Actuator integrates effortlessly into building climate solutions to deliver optimized comfort and system performance.
Features
Powered by a sensorless, brushless DC motor with no need for limit switches, ensuring greater durability and performance reliability.
Automatically stops at the end position, protected by a digital rotation sensing (DRS) function to prevent damage from stall conditions.
Includes an anti-rotation strap and overload protection, designed for stable installation and long-term use.
The actuator is not provided with and does not require any limit switches but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement.
The LMB series provides 95°of rotation and a visual indicator indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover.

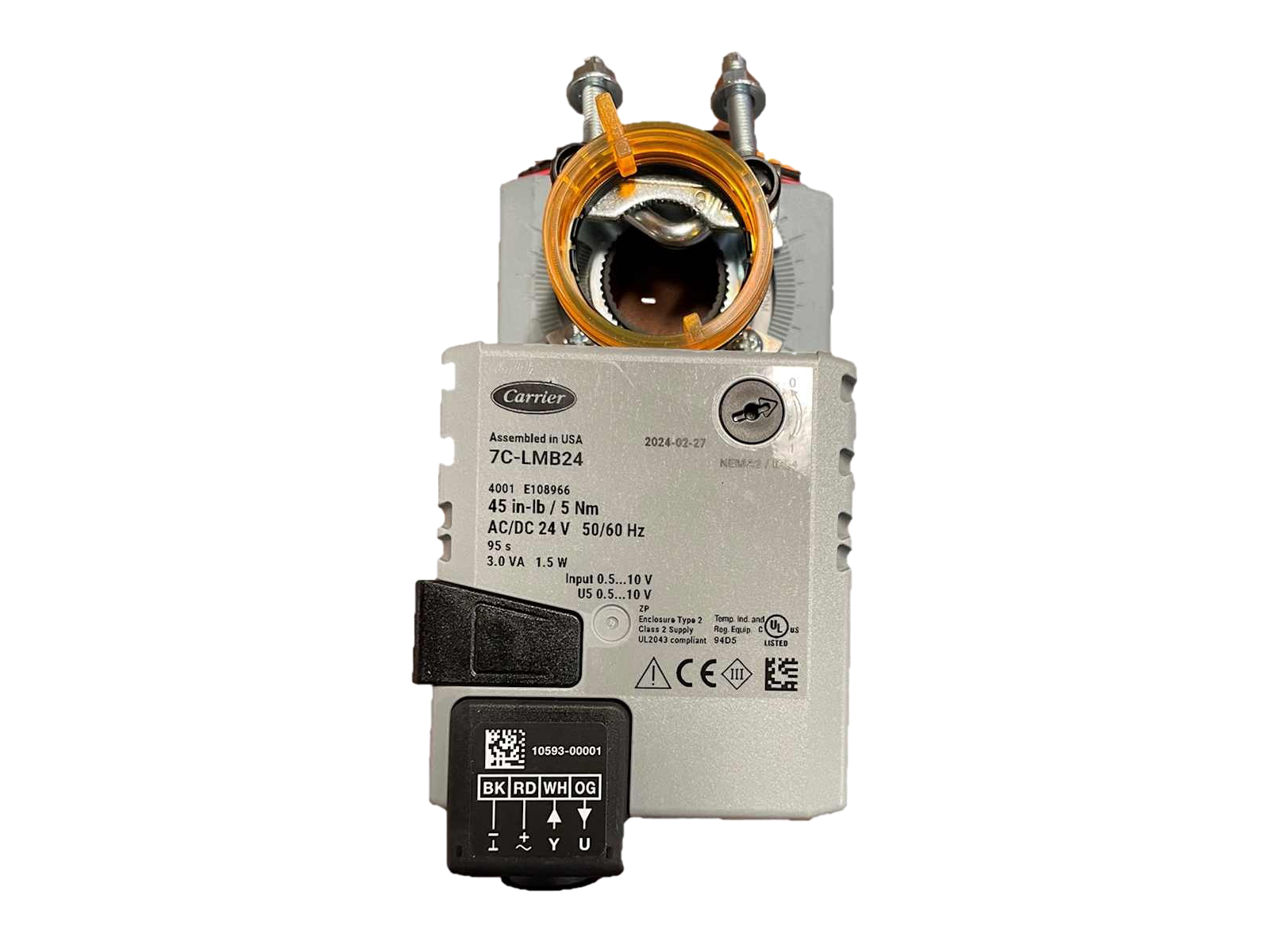

The 7C-LMB24.1 actuator uses a sensor-less, brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode.
Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto the actuator body for signaling and switching functions.
Unlock control and reliability with Carrier’s ClimaVision™ Damper Actuator. Designed for precision, simplicity and durability for seamless HVAC automation.
