23XR PIC6 Retrofit Installation Instructions, Part No. 23XR04053101
Advanced IPLV performance down to 0.299 ensures optimal energy savings during peak and off-peak operations.
Overview

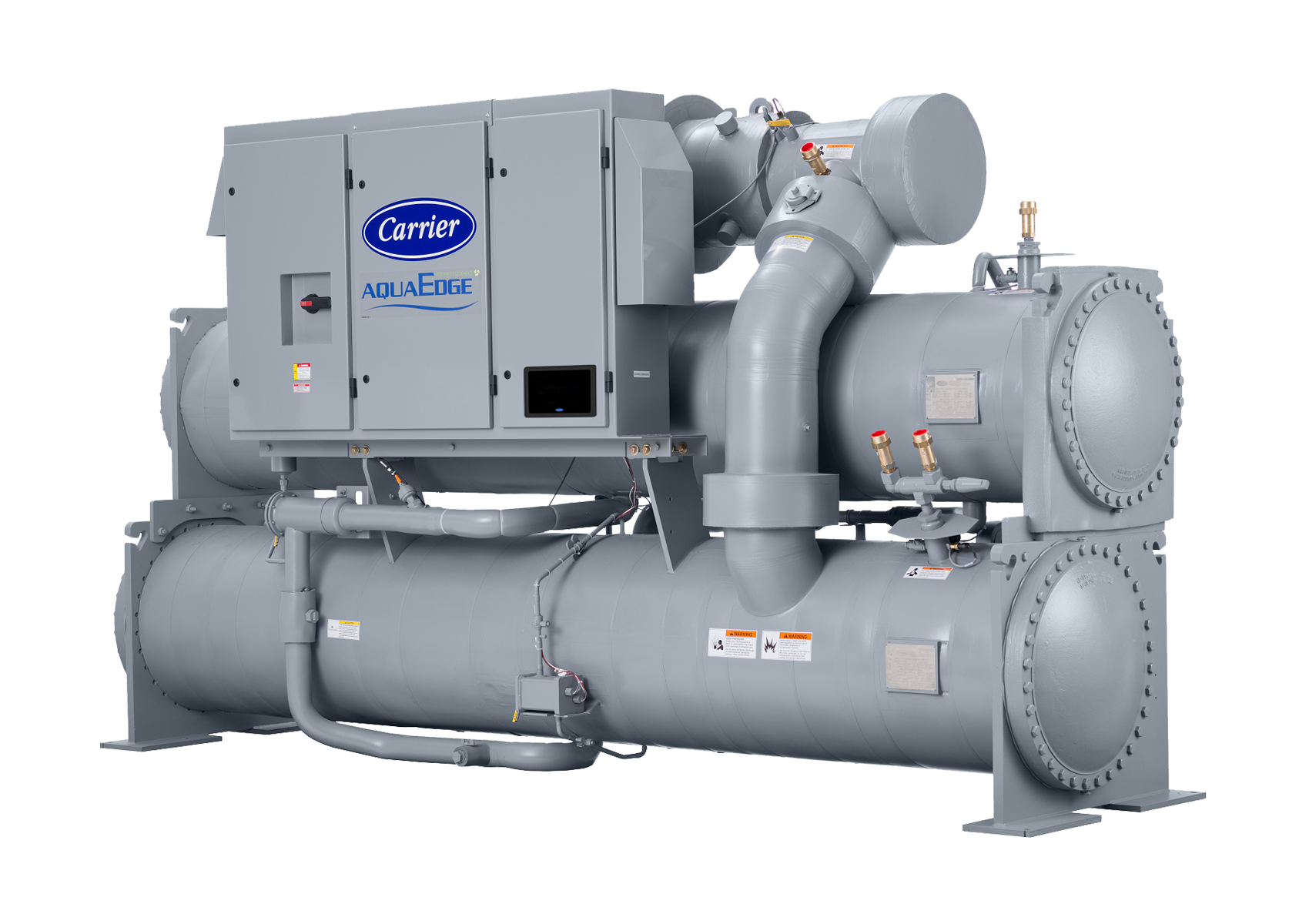

The AquaEdge® 23XRV Chiller is the ultimate solution for commercial and industrial climate control. With its groundbreaking variable-speed screw technology, it delivers unparalleled energy efficiency, achieving IPLV levels as low as 0.299. Designed to enhance indoor air quality and ensure reliable performance, the 23XRV adapts seamlessly to various operating conditions. Its advanced R-513A refrigerant, compact footprint and user-friendly SmartVu™ touchscreen controls make it a standout in the world of water-cooled chillers. Whether you’re optimizing a high-demand HVAC system or focusing on sustainability, this energy-efficient chiller ensures long-term impact and peace of mind.
- AHRI Certified
- UL Listed
- ISO 9001 Certified
- Seismic Compliant
Features
ASME-certified heat exchangers and low leakage rates guarantee superior dependability.
Password-protected diagnostics and non-volatile memory streamline service and troubleshooting.
Compact, modular construction and single-point electrical connections simplify setup in any environment.
Utilizes R-513A refrigerant to prioritize environmental responsibility and compliance.
Discover a smarter, reliable, and energy-efficient way to manage your climate control with the AquaEdge® 23XRV Chiller. Designed for performance, sustainability and peace of mind.
