Aqua Series Water-Cooled Chillers Brochure
Optimized for part-load and full-load operation, achieving IPLV as low as 0.31 kW/Ton for significant energy savings.
Overview

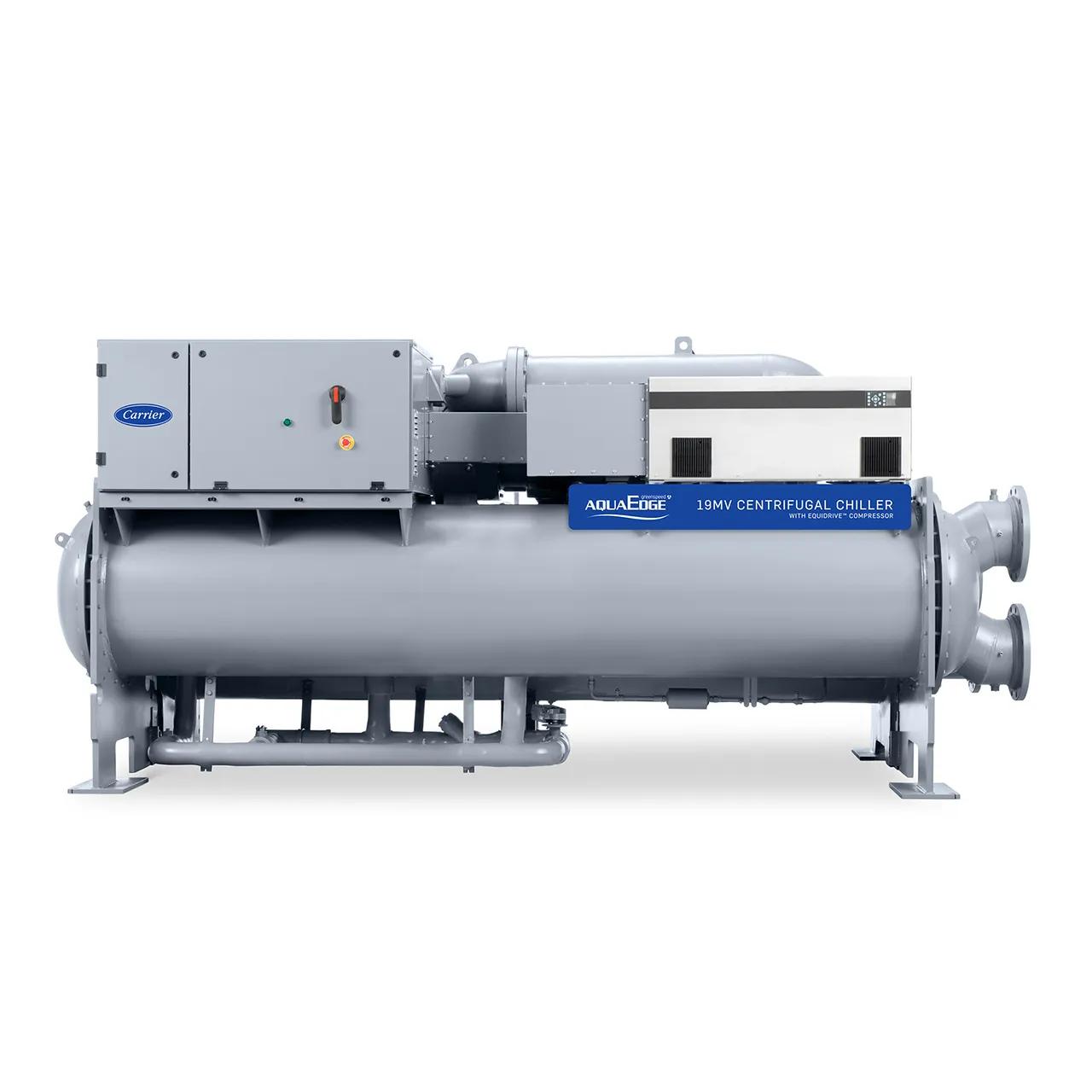

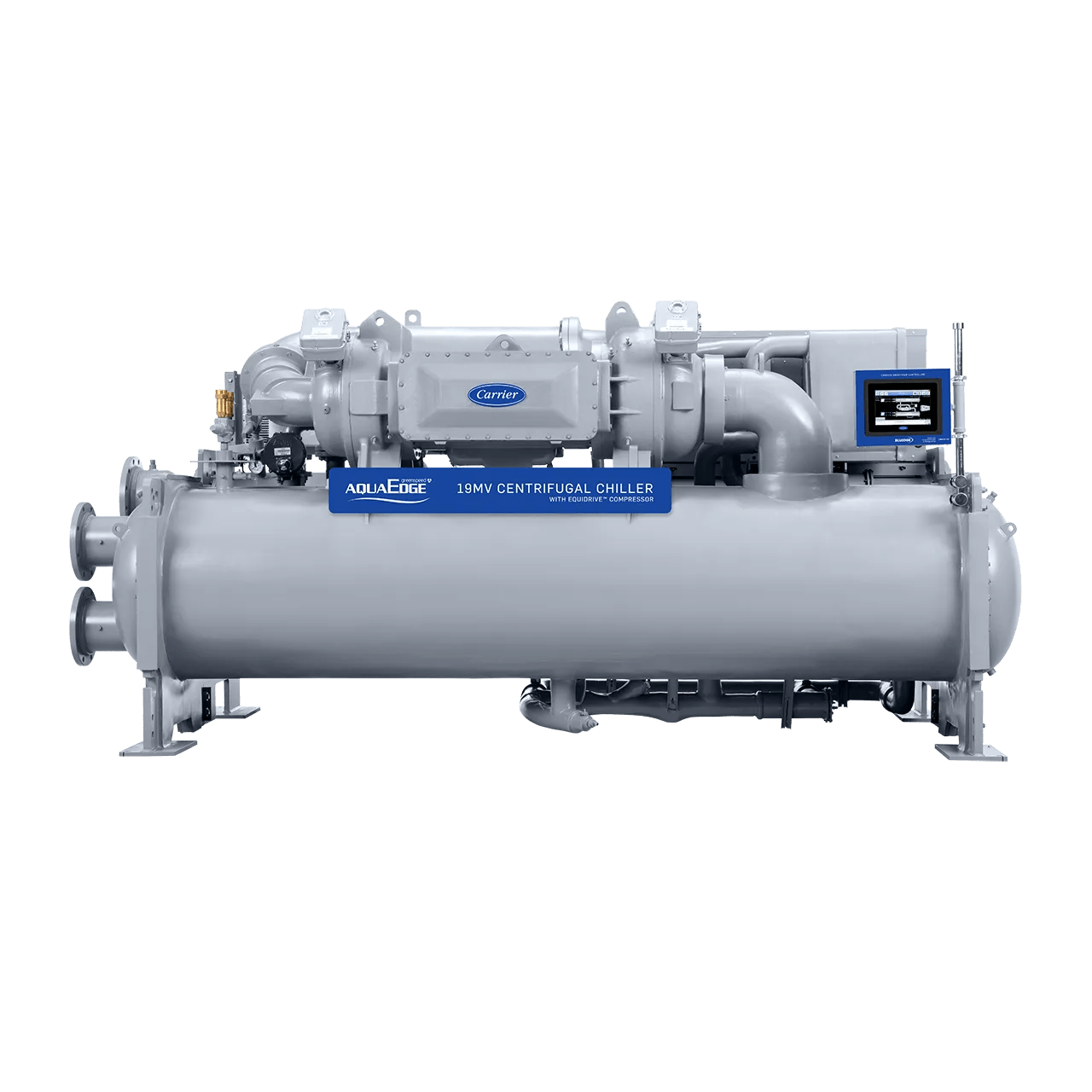

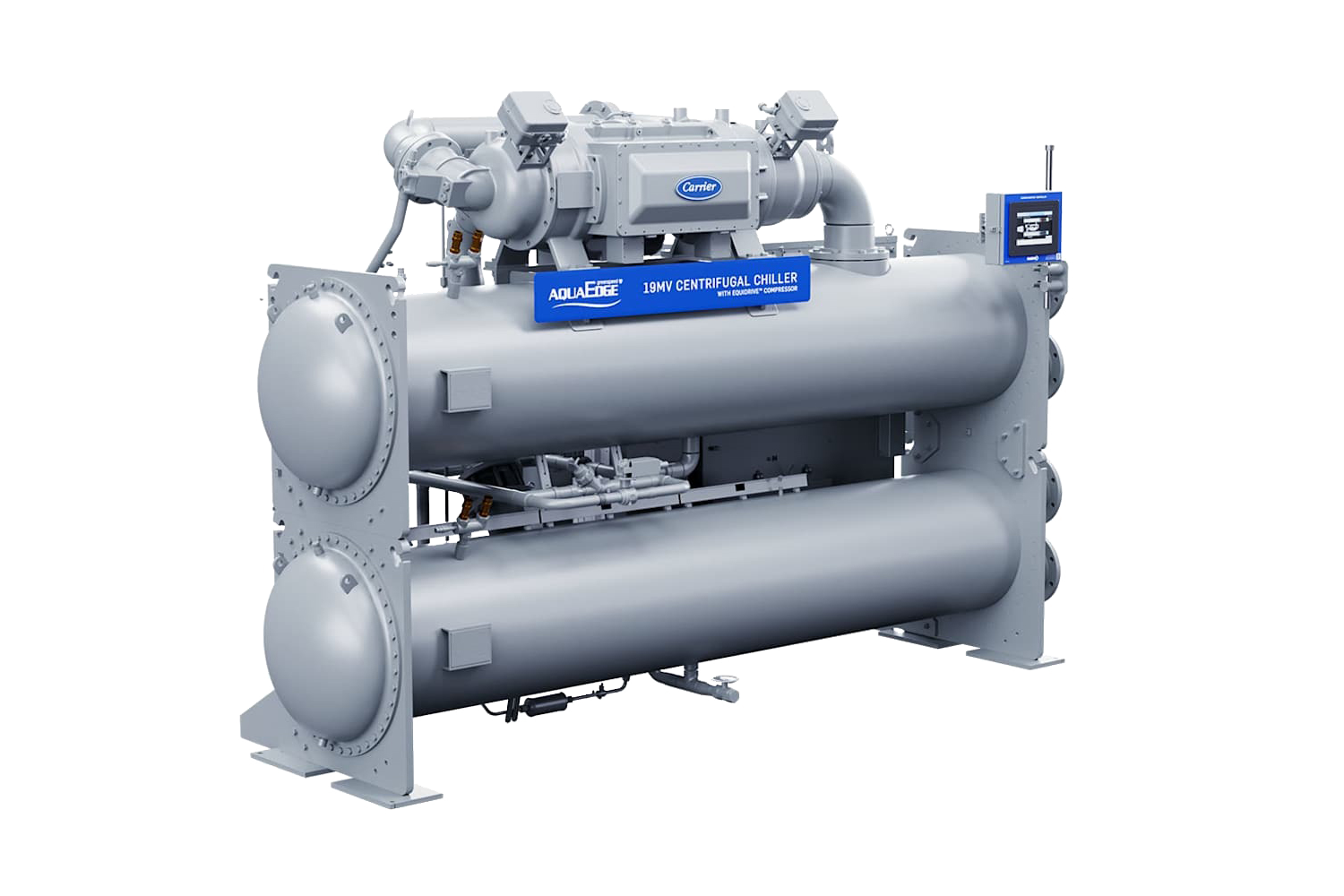

The AquaEdge® 19MV Water-Cooled Chiller redefines performance and efficiency for commercial HVAC systems. With a broad operating range and full-load efficiency as low as 0.52 kW/Ton, this chiller provides exceptional indoor air quality and reliable climate control. It features the innovative EquiDrive™ two-stage back-to-back compressor and is compatible with low global warming potential (GWP) refrigerants, including R-513A, R-1234ze(E) and R-515B. Its compact footprint and bolt-together construction make installation seamless, whether for new spaces or retrofits.
- AHRI 550/590 & 551/591
- ETL Listed
- ASHRAE 90.1-2022 Compliant
- UL Listed
Features
Equipped with ASME-certified heat exchangers and a semi-hermetic, magnet-bearing compressor for dependable daily use.
Includes built-in diagnostics, non-volatile memory and a password-protected control interface for easy troubleshooting.
Designed with a compact footprint and modular bolt-together construction, ensuring easy installation and transport through standard doorways.
Utilizes low GWP refrigerants to reduce environmental impact without compromising performance.
The AquaEdge® 19MV offers resilient performance, seamless flexibility and supports compliance with today’s leading sustainability standards.
