With a low profile of just 10-5/8 inches in height, the 45R is ideal for installations in tight spaces, optimizing your ceiling plenum area.
Overview

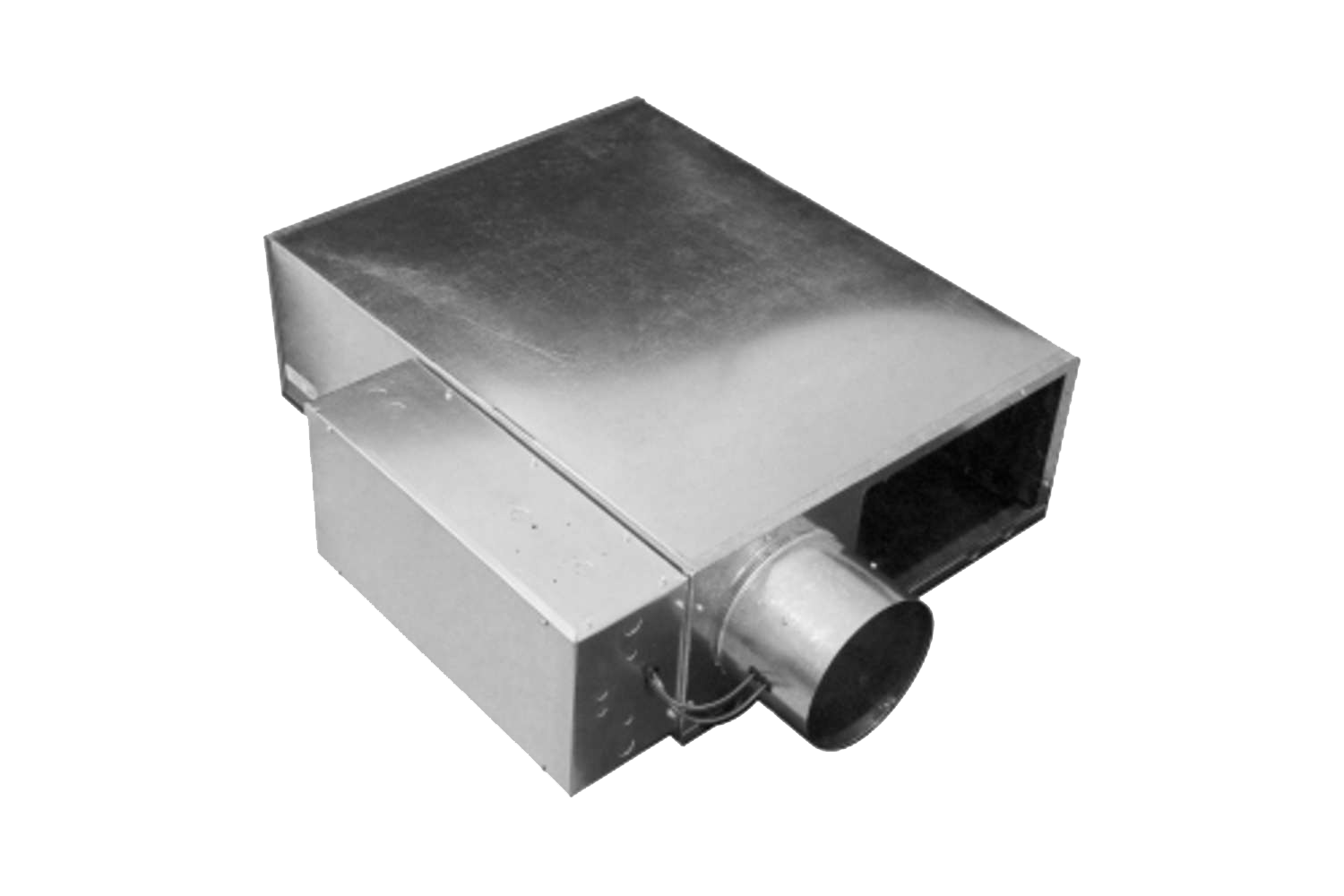

The AXIS™ 45R Low-Profile Parallel Fan-Powered Terminal delivers cutting-edge performance and flexibility for commercial HVAC systems. Designed for energy efficiency and superior indoor air quality, this compact unit supports versatile climate control with precision airflow management. Featuring an innovative design, the 45R is perfect for retrofit applications or installations in limited ceiling spaces, offering optimized performance without compromising durability. Its flexible control compatibility ensures seamless integration with both new and existing systems.
- AHRI 880 Certified
- ETL Listed
Features
Offers an impressive fan airflow range from 250 to 830 CFM and primary airflow capacities up to 2,660 CFM, delivering consistent temperature control and enhanced comfort.
Made with 20-gauge galvanized steel for lasting durability, the unit features high-performance casing insulation that meets strict UL 181 and NFPA 90A standards.
Seamlessly integrates with Carrier i-Vu Open, Carrier Comfort Network® (CCN), analog or pneumatic systems for customizable operation.
Options include electric heat with multiple stages or hot water reheat coils, ensuring efficient energy use tailored to your application.
Experience the AXIS™ 45R air terminal — advanced climate control, energy efficiency and superior air distribution for comfort and value in any commercial space.
Documents
Brochure
VVT Zoning System Brochure High Resolution 1/21
VVT Zoning System Brochure Print Version 1/21
Axis Overhead Air Terminals Brochure
A World of Comfort 2025 - Brochure
A World of Comfort 2025 - Brochure (Printer Version)
Guide Specifications
45RA,RB,RC,RD,RN,RP,RV,RT,RW Guide Specifications, 90 to 2060
Installation
45J,K,M,N,Q,R Fan Powered Variable Air Volume Terminals
Product Data
i-Vu Open VVT Zone II Controller Product Data Sheet
i-Vu Open VAV Zone II Fan Terminal Product Data Sheet
TruVu™ TV-VAVB3-E2 Product Data
TruVu™ TV-VVTZC-E2 Product Data
TruVu™ TV-VVTBP-E2 Product Data
45F,J,M,N,Q,R Standard, Quiet, and Low Profile Fan Powered Variable Air Volume Terminals 100 to 3900 Nominal Cfm
REVIT and 3D DRW Files
45R Low Profile Parallel Fan Powered Terminal Unit Family REVIT Files
45R Fan-Powered Terminal Unit Family REVIT Files
Warranty Card
Warranty - Standard Product Warranty for Commercial Equipment
White Paper
Intelligent Air Source and Terminal Integration
Environmental Design Considerations for Hospital Operating Rooms White Paper
Need assistance selecting the right system? Connect with our authorized experts for advice and support.
Trust our network to help you find the perfect solution.
Experience Carrier's commitment to reliability, performance and innovation. Designed for easy maintenance, our 45R air terminals are engineered for seamless operation year after year.
