Operates with ultra-low sound levels, ensuring maximum comfort in noise-sensitive environments.
Overview

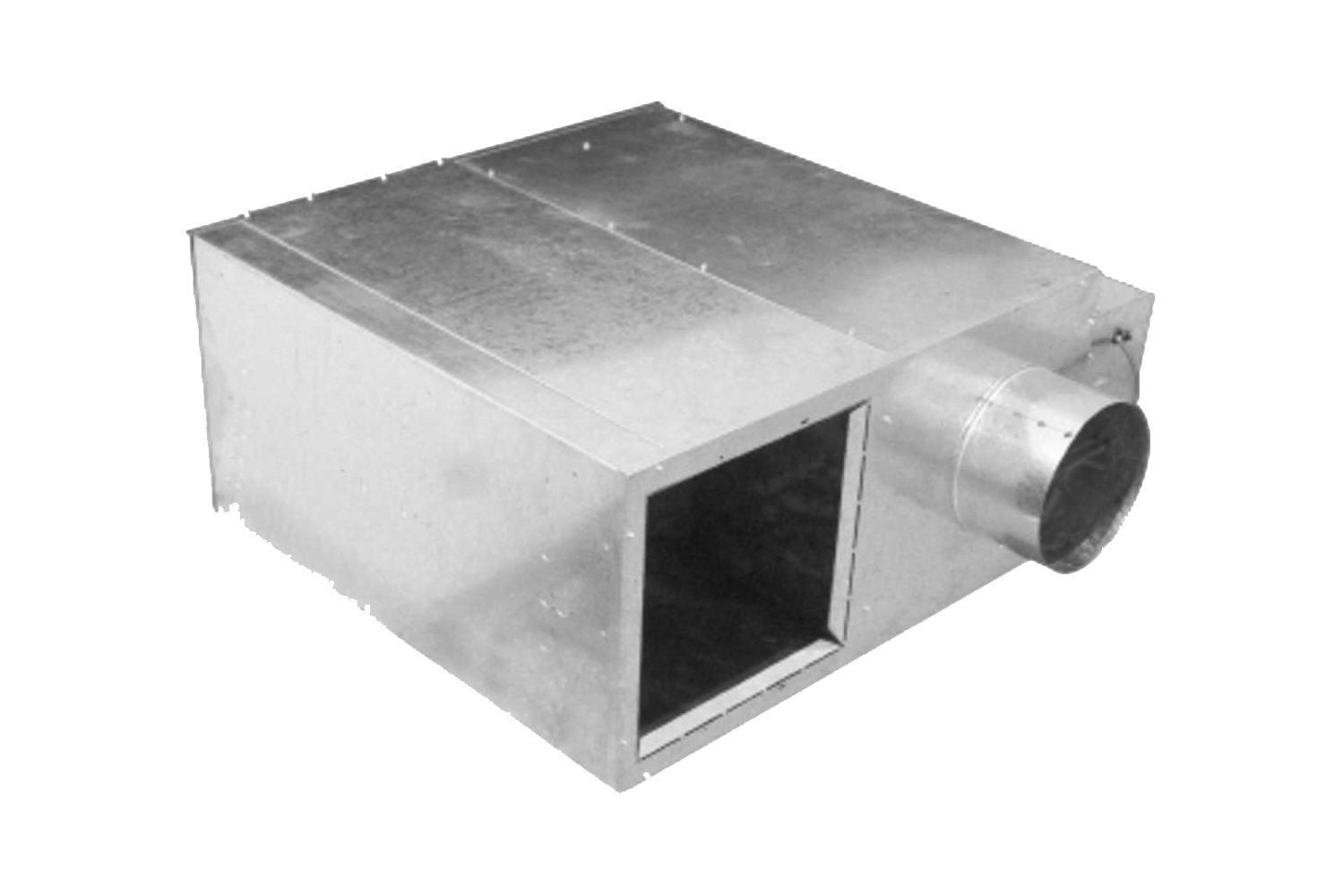

The AXIS™ 45N Quiet Parallel Fan-Powered Terminal is engineered to redefine air terminal performance in commercial HVAC systems. With airflow capacities up to 2,000 CFM (fan) and 3,660 CFM (primary), this energy-efficient terminal excels in delivering precise climate control while maintaining whisper-quiet operation. Its advanced control options and durable construction make it ideal for retrofit terminals and new installations alike, ensuring optimal indoor air quality and seamless HVAC air distribution.
- AHRI 880 Certified
- ETL Listed
Features
Supports fan airflow up to 2,000 CFM and primary airflow up to 3,660 CFM for diverse application needs.
Built with 20-gauge galvanized steel casing, enhancing durability and longevity.
Pressure-independent or dependent control options include Carrier i-Vu Open, CCN, analog or pneumatic systems.
Electric or hot water reheat coils available for maximized energy efficiency and consistent climate control.
The high-performing 45N air terminal has unparalleled climate control that ensures quiet operation, maximized energy efficiency and improved indoor air quality.
