Supports up to 3,660 CFM with advanced multi-point velocity sensors for precise distribution.
Overview

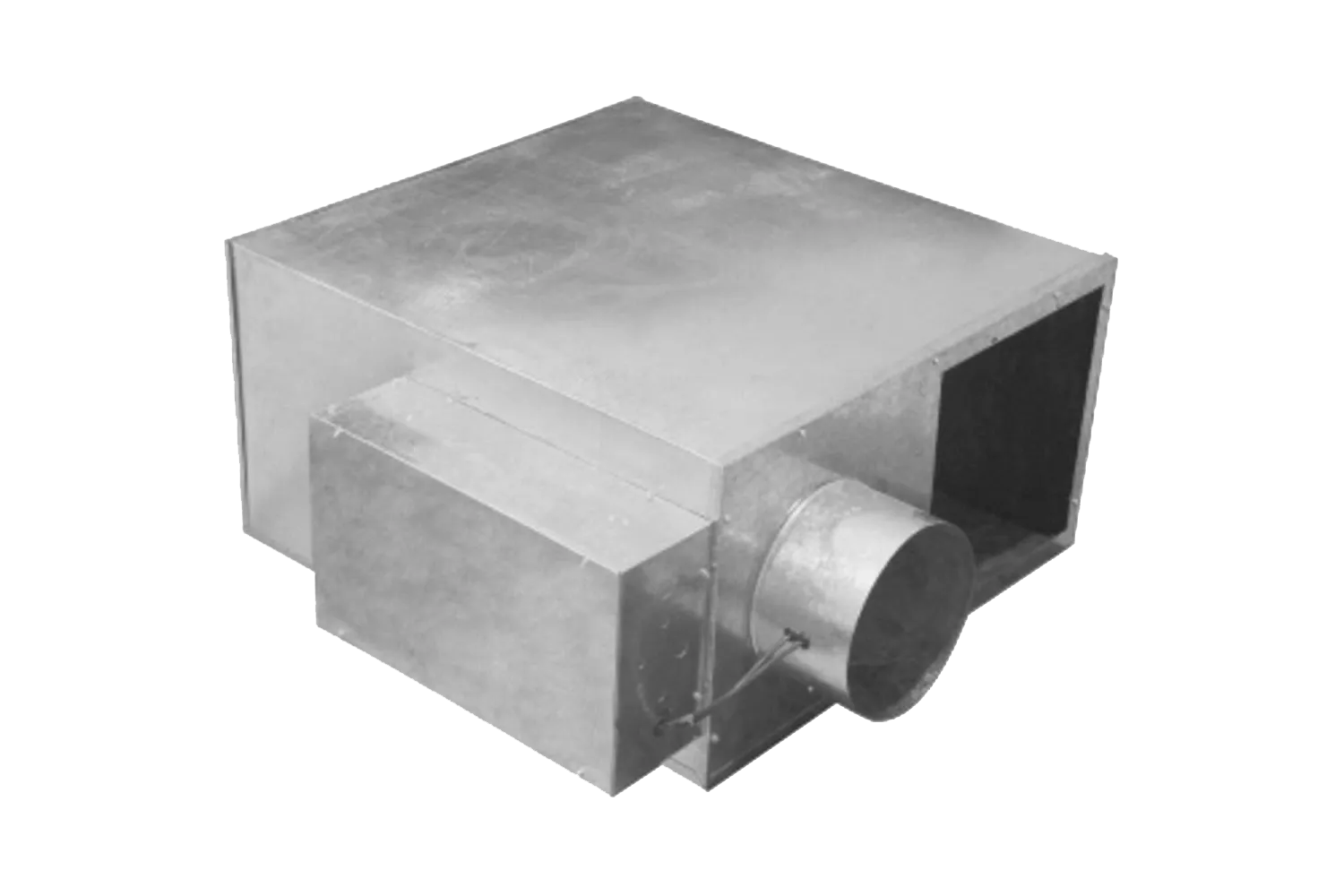

The AXIS™ 45M Parallel Fan-Powered Air Terminal is engineered to deliver precise climate control while optimizing energy usage in commercial HVAC systems. With airflow capacities up to 3,660 CFM and innovative control options, this unit ensures reliable and efficient air distribution.
- AHRI 880 Certified
- ETL Listed
Features
Compatible with multiple control systems, including Carrier i-Vu Open (BACnet) and pneumatic control options.
Designed for low plenum spaces, simplifying installation in modern structural layouts.
Durable 22-gauge galvanized steel casing ensures long-lasting performance and reduced maintenance needs.
Pressure-independent functionality and optional reheat coils improve energy use and indoor air quality.
Features a removable bottom panel for quick inspections and servicing.
Elevate energy efficiency and indoor air quality with flexible, reliable air distribution solutions from the trusted name in commercial HVAC.
