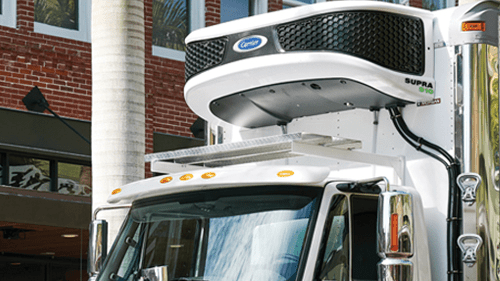

Supra® S10 Diesel Truck Refrigeration Unit
Technical Specifications
Condenser Dimensions
75.4” x 32.1” x 24.2”(1,914 x 815 x 615 mm)
Evaporator Dimensions
48.2” x 23.5” x 13”(1,225 x 597 x 330 mm)
Body Opening
49.0" x 13.8"(1,245 x 351 mm)
Approximate Weight
TDB-5B: 1,025 lb (466 kg) without standby; TDS-5B: 1,102 kb (501 kg) with electric standbyEvaporator Airflow
1,600 cfm (2,718 m3/hr)Cooling/Temperature Capacity:
Ambient at 100°F (38°C); Speed: 2,100 rpm diesel/60-hertz electric operation| Evaporator Return Air Temp. | Diesel Operation | Standby Operation | ||
| BTU/hr | Watts | BTU/hr | Watts | |
| 35°F ( 2°C) | 37,000 | 10,850 | 27,000 | 7,915 |
| 0°F (-18°C) | 22,500 | 6,622 | 21,000 | 6,155 |
| -20°F (-29°C) | 14,000 | 4,100 | 13,500 | 3,960 |
