X4 CARB Brochure
Provides 10% greater fuel efficiency than its standard counterpart, thanks to its three-speed engine with common-rail fuel injection.

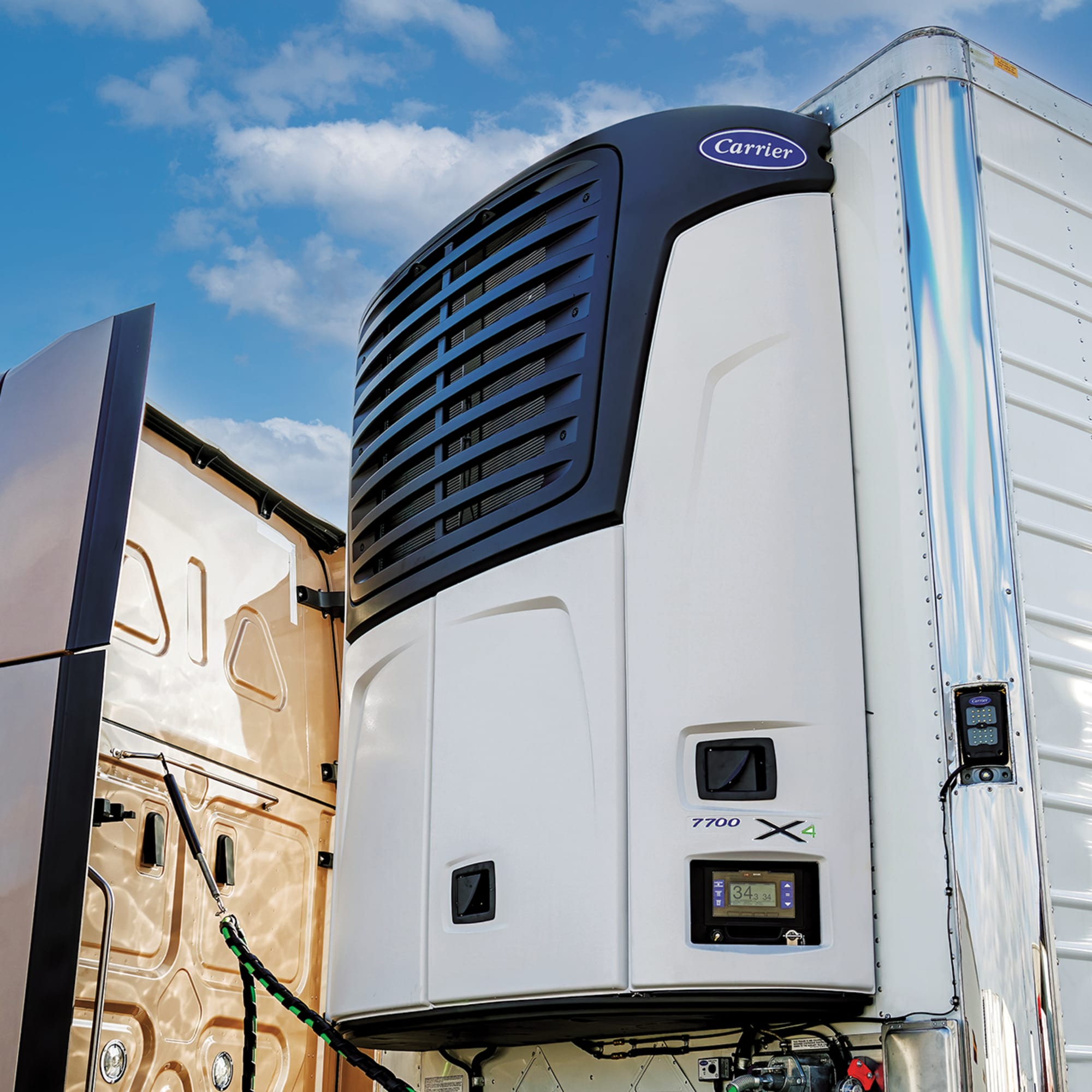

X4™ 7700 – Premium performance with lifetime CARB compliance
Maximum efficiency and capacity. Greater sustainability.
The innovative X4 7700 Single-Temperature Trailer Refrigeration Unit is the newest member of our legendary X4 family. The premium performance unit meets EPA Tier 4 regulations, and provides lifetime compliance with California Air Resources Board (CARB) requirements without the need for future exhaust systems.
Features
Delivers our highest capacity along with fast pulldown, precise temperature control and peace of mind for the most demanding applications.
Reduced emissions that surpass EPA Tier 4 and lifetime compliant with California Air Resources Board (CARB) requirements without the need for future exhaust systems. Sustainability enhanced with R-452A, a refrigerant with lower global warming potential.
Combining innovative engineering with a straightforward, practical design reduces engine run hours and lowers maintenance costs.
At a glance
Functionality
Single temperaturePower Source
DieselNationwide Service Network
More than 180 authorized dealers availableCondenser Dimensions
76.4" x 85.7" x 22.8"(1,940 x 2,176 x 579 mm)
Evaporator Dimensions
66.3" x 45.2" x 8.2"(1,684 x 1,149 x 208 mm)
Body Opening
66.8" x 46.0"(1,696 x 1,168 mm)
Approximate Weight
1,690 lb. Remote 50-gallon aluminum fuel tank with mounting brackets: 65 lb. Battery: 50 lb.(767 kg; 29 kg; 23 kg)
Evaporator Airflow
3,100 cfm(5,270 m³/hr)
Refrigerant Type
R-452A
The innovative X4 7700 builds on the platform's long-standing reputation for high-capacity performance, rugged design and simply smarter engineering.
