X4 Rail Edition
Delivers fast pulldown and precise temperature control.
Expertly engineered to tackle the toughest intermodal and rail applications
Cost-saving operational efficiency and peace of mind for the most demanding of applications

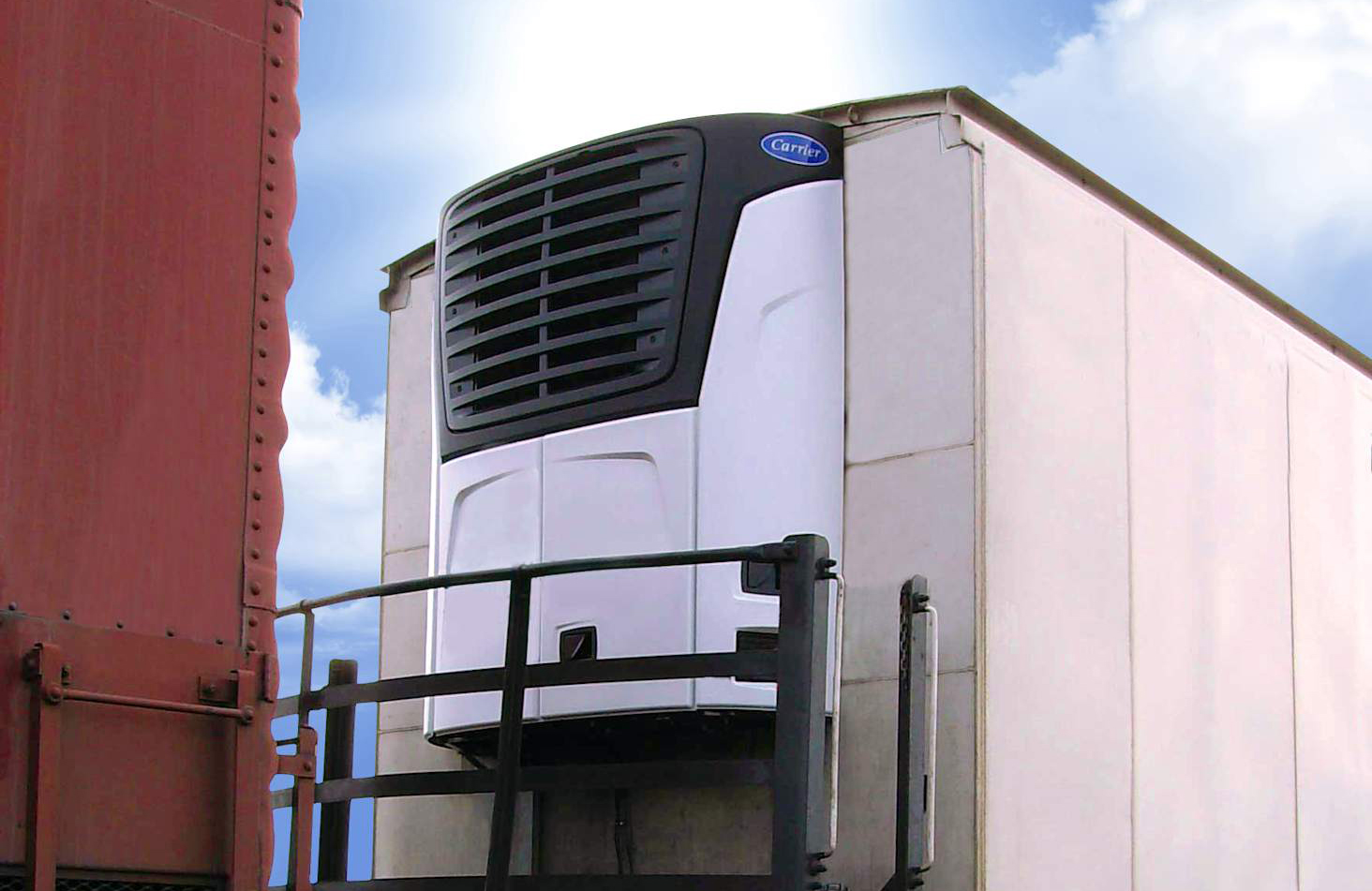

Offering exceptional durability against shock and vibration, the X4™ 7500R Rail Refrigeration Unit delivers reliable performance with up to 68,000 BTUs of cooling at AHRI conditions and is designed for fast pull down and precise temperature control.
Features
Provides compliance with EPA Tier 4 emissions regulations, while also improving operational efficiencies and performance.
Offers lower cost of ownership. The practical design and innovative engineering results in lower fuel consumption, reduced engine runtime and lower maintenance costs.
At a glance
Functionality
Single-temperature railPower source
DieselNationwide Service Network
More than 180 authorized dealers availableCondenser Dimensions
76.4" x 85.7" x 22.8"(1,940 x 2,176 x 579 mm)
Evaporator Dimensions
66.3" x 45.2" x 8.2"(1,684 x 1,149 x 280 mm)
Body Opening
66.8" x 46.0"(1,696 x 1,168 mm)
Approximate Weight
1,695 lb.(770 kg)
Evaporator Airflow
3,050 CFM(5,180 m³/hr)
The X4 7500R Rail Edition sets the bar even higher as the new industry standard for refrigeration performance and efficiency.
