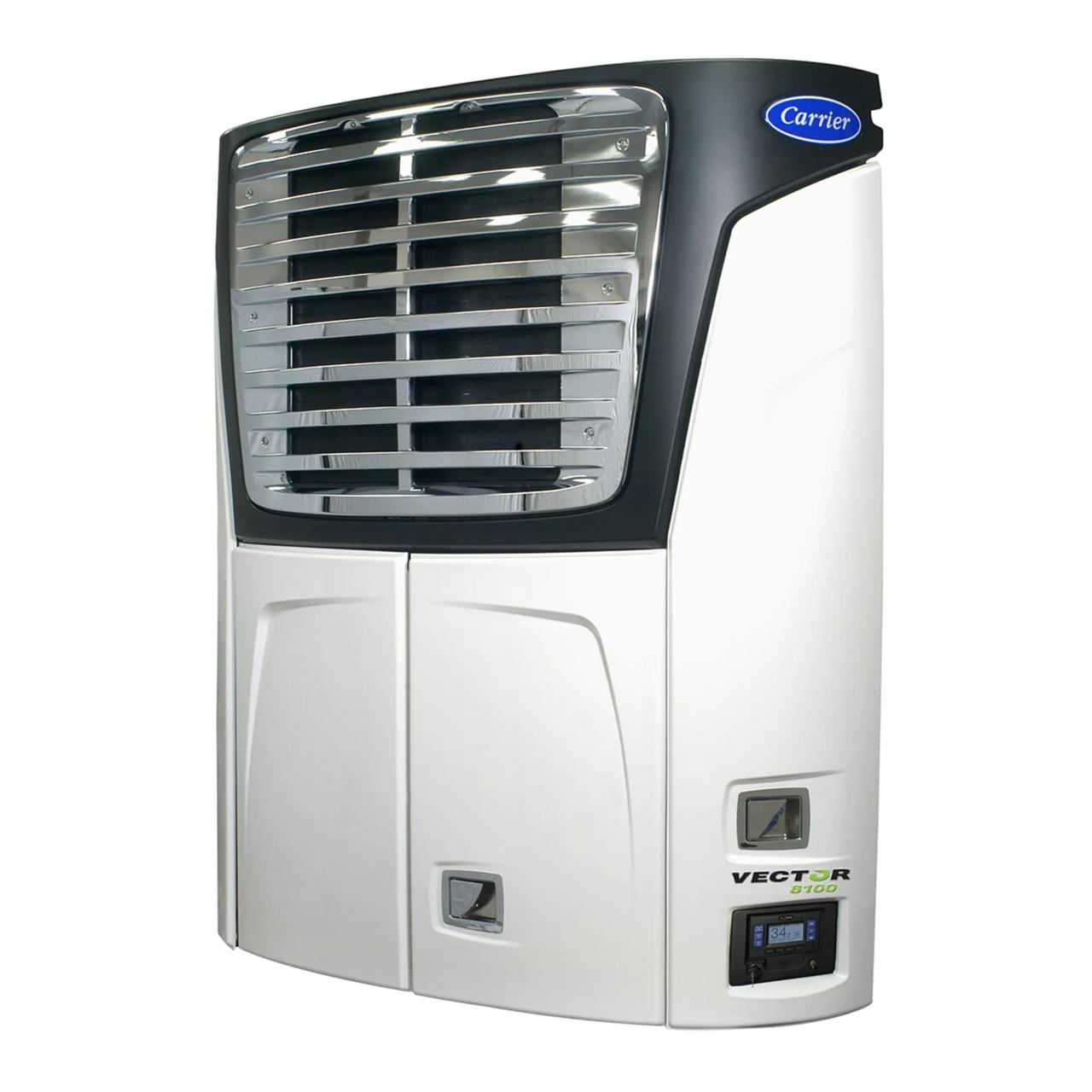

Vector 8100
Built to provide stationary cold storage, the engineless all-electric trailer refrigeration unit consumes less electricity while delivering up to 4 percent higher capacity than the model it succeeds.
Vector™ 8100 – The innovative, high-capacity all-electric cold storage solution
Delivering sustainability and compliance

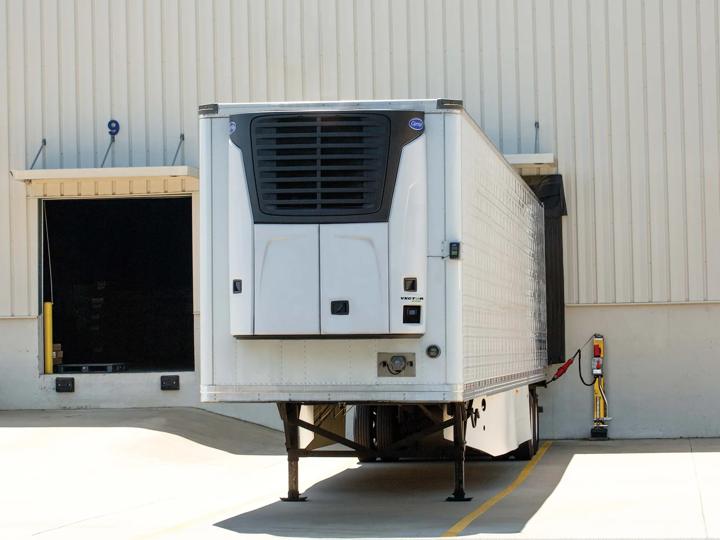

Built to provide stationary cold storage, the engineless Vector™ 8100 all-electric trailer refrigeration unit produces maximum heating and quick defrosts regardless of the outdoor ambient temperature.
Features
Eliminates the cost and weight of the onboard power plant needed for highway hauls – the diesel engine and high-capacity generator used in other Vector units.
Efficiently regulates power draw to save energy costs. Built-in brown out protection keeps the unit running during low voltage conditions and in the event of an outage, stagger-start logic avoids a massive draw on the grid by preventing multiple units from starting simultaneously when the power returns.
Remarkable control intelligence for precise temperature management and amazingly simple operation.
Provides a lower carbon footprint and an extremely quiet solution for operations with residential neighbors sensitive to diesel engine noise.
At a glance
Functionality
Single-temperaturePower Source
ElectricNationwide Service Network
More than 180 authorized dealers availableCondenser Dimensions
76.4" x 85.7" x 22.8"(1,940 x 2,176 x 579 mm)
Evaporator Dimensions
66.3" x 45.2" x 8.2"(1,684 x 1,149 x 280 mm)
Body Opening
66.8" x 46.0"(1,696 x 1,168 mm)
Approximate Weight
1,150 lb., including electric standby; battery 50 lb(approx. 520 kg; battery 23 kg)
Evaporator Airflow
Applied system performance: 3,100 cfm(5,270 m³/hr)
The environmentally sound solution for cold storage with high capacity, efficient energy management and no diesel emissions.
