Duct Mounted Temperature Sensor NSB-10K-2-D
Duct Mounted Temperature Sensor
NSB-10K-2-D

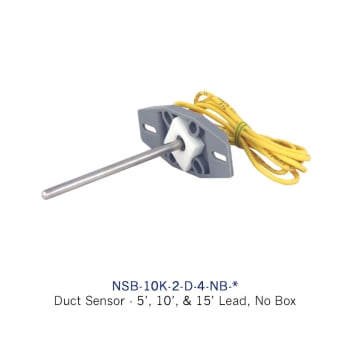

Duct Unit with No Box
NSB-10K-2-D-4-NB-* (4” probe, 5’, 10' or 15' leads)
NSB-10K-2-D-*-NB-10 (8”, 10" or 12" probe, 10’ leads)
Duct Unit with BB4 Enclosure
NSB-10K-2-D-*-BB4 (4”, 8", 12" or 18" probe)

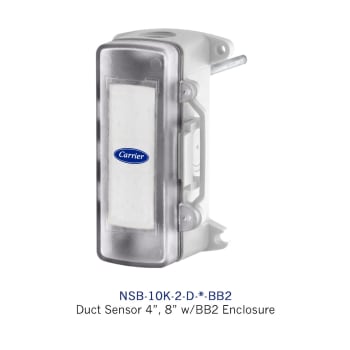

Duct Unit with BB2 Enclosure
NSB-10K-2-D-*-BB2 (4”, 8", 12" or 18" probe)

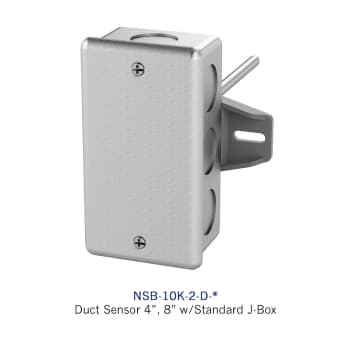

Duct Unit with Standard J-Box
NSB-10K-2-D-* (4”, 8", 12" or 18" probe)
The Duct Temperature Sensor is a passive resistive sensor. It comes in a variety of probe lengths and optional mounting enclosures. The sensors come with standard accuracy.
| Duct Temperature Sensor | |
|---|---|
| Sensor | Passive, NTC, 2 wire |
| Thermistor | Temp. Output: Resistance Accuracy
(Std): ±0.36ºF, (±0.2ºC) Stability: < 0.036ºF/Year, (<0.02ºC/Year) Heat Dissipation: 2.7 mW/ºC Temp. Drift: <0.02ºC per year Probe Range: -40º to 221ºF (-40º to 105ºC) |
| Sensitivity | Approximate @ 32ºF (0ºC)
Thermistor: Non-linear |
| Lead Wire | 22AWG stranded |
| Insulation | Etched Teflon, Plenum rated |
| Probe | 304 Stainless steel, 0.25” OD |
| Probe length | 4”, 8”, 12”, or 18" or per order |
| Duct Gasket | 1/4” Closed cell foam (impervious to mold) |
| Mounting | Extension tabs (ears), 3/16” holes |
| Enclosure Types | No Box (NB): Intended for open wiring
J-Box (JB): With eight ½” knock-outs BB2 Box: With three ½” NPSM and three ½” drill-outs BB4 Box: With three ½” drill-outs, one ½” open port |
| Enclosure Ratings | No Box (NB): No rating
J-Box (JB): NEMA 1 BB2 Box: NEMA 4, IP66, UV Rated BB4 Box: IP10, (IP44 with Knockout Plug in open port) |
| Enclosure Materials | No Box (NB): Nylon 66, UL94H-B
J-Box (JB): Galvanized steel, UL94H-B BB2 Box: Polycarbonate, UL94V-0, UV rated BB4 Box: Polycarbonate and Nylon, UL94V-0 |
| Ambient (Enclosure) | 0 to 100% RH, Non-condensing
No Box (NB): -40 to 212ºF (-40 to 100ºC) J-Box (JB): -40 to 212ºF (-40 to 100ºC) BB2, BB4: -40 to 185ºF (-40 to 85ºC) |
| Agency | RoHS, PT= DIN43760, IEC Pub 751-1983, JIS C1604-1989 |
| Duct Temperature Sensor | |
|---|---|
| Sensor | Passive, NTC, 2 wire |
| Thermistor | Temp. Output: Resistance Accuracy
(Std): ±0.36ºF, (±0.2ºC) Stability: < 0.036ºF/Year, (<0.02ºC/Year) Heat Dissipation: 2.7 mW/ºC Temp. Drift: <0.02ºC per year Probe Range: -40º to 221ºF (-40º to 105ºC) |
| Sensitivity | Approximate @ 32ºF (0ºC)
Thermistor: Non-linear |
| Lead Wire | 22AWG stranded |
| Insulation | Etched Teflon, Plenum rated |
| Probe | 304 Stainless steel, 0.25” OD |
| Probe length | 4”, 8”, 12”, or 18" or per order |
| Duct Gasket | 1/4” Closed cell foam (impervious to mold) |
| Mounting | Extension tabs (ears), 3/16” holes |
| Enclosure Types | No Box (NB): Intended for open wiring
J-Box (JB): With eight ½” knock-outs BB2 Box: With three ½” NPSM and three ½” drill-outs BB4 Box: With three ½” drill-outs, one ½” open port |
| Enclosure Ratings | No Box (NB): No rating
J-Box (JB): NEMA 1 BB2 Box: NEMA 4, IP66, UV Rated BB4 Box: IP10, (IP44 with Knockout Plug in open port) |
| Enclosure Materials | No Box (NB): Nylon 66, UL94H-B
J-Box (JB): Galvanized steel, UL94H-B BB2 Box: Polycarbonate, UL94V-0, UV rated BB4 Box: Polycarbonate and Nylon, UL94V-0 |
| Ambient (Enclosure) | 0 to 100% RH, Non-condensing
No Box (NB): -40 to 212ºF (-40 to 100ºC) J-Box (JB): -40 to 212ºF (-40 to 100ºC) BB2, BB4: -40 to 185ºF (-40 to 85ºC) |
| Agency | RoHS, PT= DIN43760, IEC Pub 751-1983, JIS C1604-1989 |
