Vector^® HE 19 Trailer Refrigeration Units

Precision requires the best of efficiency

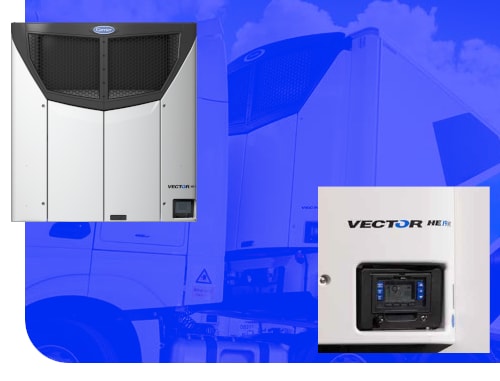

Vector HE 19: High efficiency for the cold chain

Engineered for the future of refrigerated transport, the Vector® HE range sets the benchmark in energy efficiency, performance, and environmental responsibility.

As a top-of-the-line temperature-controlled trailer system, Vector® HE 19 blends proven E-Drive electric technology with new features that boost performance and efficiency.

Vector^® HE 19 Key Benefits

Optimized weight

805 kg only

Constant heating

up to 8,000 W

Quiet operation

sound pressure as low as 63 dB(A)

at very low speed mode

High capacity:

On engine:
0°C/30°C: 18,100 W
-20°C/30°C: 9,750 W

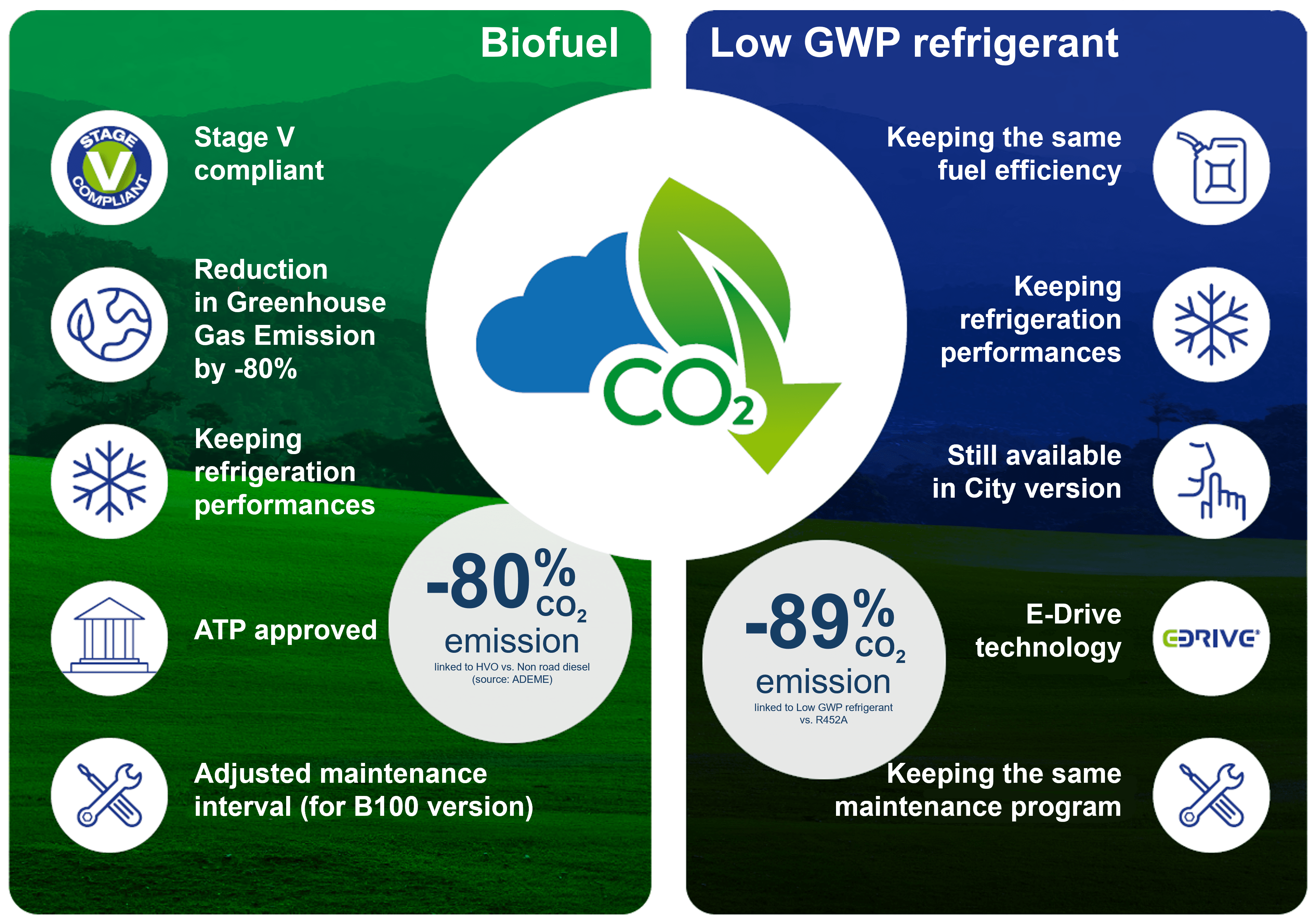

Sustainable solutions

At Carrier Transicold, our engineers continue to push the boundaries of innovation—delivering sustainable, cost-effective solutions that keep you ahead of evolving environmental regulations. Our latest advancements, including biofuel compatibility and next-generation refrigerant, are designed to help you lower your environmental impact while investing in longterm performance.

Biofuel

Already supporting HVO, Vector® HE 19 is now available in a version compatible with B100 biofuel.

Low GWP refrigerant

Carrier carefully selected a new low-Global Warming Potential refrigerant for units with a dedicated refrigeration design.

Optimized architecture

Enhanced thermal efficiency

In warm climates through large condenser area, powerful fans, and vertical airflow.

Designed for uptime

E-Drive reduces service interruptions, and the multi-speed engine delivers optimal efficiency.

Power source versatility

E-Drive allows Vector HE 19 to operate via Eco-Drive, battery, or grid connection.

Multi-temperature flexibility

With 12 standard configurations available—and custom setups on request.

Pharmaceutical-grade certification

Enabled by superior temperature stability and distribution.

Better temperature homogeneity

Through improved air flow, enabled by a more efficient fan and redesigned evaporator duct.

View the full Vector HE 19 range

Vector HE 19

Specifications

Temperature Type: Mono Temperature

Cooling Capacity

Diesel – Very High Speed 0°C/+30°C	17650 W
Diesel – Very High Speed -20°C/+30°C	9190 W
Diesel – High Speed 0°C/+30°C	16980 W
Diesel – High Speed -20°C/+30°C	9190 W
Standby – 400V/3/50 Hz 0°C/+30°C	14880 W
Standby – 400V/3/50 Hz -20°C/+30°C	8770 W

Heating Capacity

Diesel	9200 W
Standby – 400V/3/50 Hz	4500 W

Air Flow

Diesel	5550 m³/hr
400V/3/50 Hz	4350 m³/hr

ATP Compliant

M963 Corr1

Weight

805 kg

Dimensions

H x W x D

2227 x 2050 x 430 mm

Box Size Recommendation

+0°C / +30°C	95 m³
+0°C / +40°C	95 m³
-20°C / +30°C	95 m³
-20°C / +40°C	95 m³

Sound Emission

Sound Power (Lwa)	100 dB
Diesel – High Speed	69 dB
Diesel – Low Speed	63 dB
Standby – 400V/3/50 Hz	60 dB

Components

Engine – Displacement	2200 cc
Engine – Cylinders	4
Compressor – Techno	Scroll economized
Compressor – Model	ZF22
Controls	APX

Refrigerant

Type	R452A
Charge	5.5 kg

Vector HE 19 City

Specifications

Temperature Type: Mono Temperature

Cooling Capacity

Diesel – Very High Speed 0°C/+30°C	17710 W*
Diesel – Very High Speed -20°C/+30°C	9870 W*
Diesel – High Speed 0°C/+30°C	16140 W
Diesel – High Speed -20°C/+30°C	8720 W
Diesel – Low Speed 0°C/+30°C	13310 W
Diesel – Low Speed -20°C/+30°C	7160 W
Standby – 400V/3/50 Hz 0°C/+30°C	13330 W
Standby – 400V/3/50 Hz -20°C/+30°C	8030 W

Heating Capacity

Diesel	9200 W
Standby – 400V/3/50 Hz	4500 W

Air Flow

Diesel	5550 m³/hr
400V/3/50 Hz	4350 m³/hr

ATP Compliant

M1013

Weight

860 kg

Dimensions

H x W x D

2227 x 2050 x 430 mm

Box Size Recommendation

+0°C / +30°C	95 m³
+0°C / +40°C	90 m³
-20°C / +30°C	95 m³
-20°C / +40°C	90 m³

Sound Emission

Sound Power (Lwa)	98 dB
Diesel – High Speed	66 dB
Diesel – Low Speed	60 dB
Standby – 400V/3/50 Hz	58 dB
Piek compliant <60 dB	Yes

Components

Engine – Displacement	22030 cc
Engine – Cylinders	4
Compressor – Techno	Scroll economized
Compressor – Model	ZF22
Controls	APX

Refrigerant

Type	R452A
Charge	5.5 kg

*Capacities shown on "Very High Speed" are from ATP Certificate M963

Vector HE 19 E City

Specifications

Temperature Type: Mono Temperature

Cooling Capacity

Standby – 400V/3/50 Hz 0°C/+30°C	13330
Standby – 400V/3/50 Hz -20°C/+30°C	8020 W

Heating Capacity

Standby – 400V/3/50 Hz

4500 W

Air Flow

400V/3/50 Hz

4350 m³/hr

ATP Compliant

M1013

Weight

541 kg

Dimensions

H x W x D

2227 x 2050 x 430 mm

Box Size Recommendation

+0°C / +30°C	90 m³
+0°C / +40°C	90 m³
-20°C / +30°C	90 m³
-20°C / +40°C	90 m³

Sound Emission

Sound Power (Lwa)	86 dB
Piek compliant <60 dB	Yes

Components

Compressor – Techno	Scroll economized
Compressor – Model	ZF22
Controls	APX

Refrigerant

Type	R452A
Charge	5.5 kg

Vector HE 19 Silent

Specifications

Temperature Type: Mono Temperature

Cooling Capacity

Diesel – Very High Speed 0°C/+30°C	17650 W*
Diesel – Very High Speed -20°C/+30°C	9800 W*
Diesel – High Speed 0°C/+30°C	16980 W
Diesel – High Speed -20°C/+30°C	9190 W
Standby – 400V/3/50 Hz 0°C/+30°C	14880 W
Standby – 400V/3/50 Hz -20°C/+30°C	8700 W

Heating Capacity

Diesel	9200 W
Standby – 400V/3/50 Hz	4500 W

Air Flow

Diesel	5550 m³/hr
400V/3/50 Hz	4350 m³/hr

ATP Compliant

M963 Corr1

Weight

840 kg

Dimensions

H x W x D

2227 x 2050 x 430 mm

Box Size Recommendation

+0°C / +30°C	95 m³
+0°C / +40°C	90 m³
-20°C / +30°C	95 m³
-20°C / +40°C	90 m³

Sound Emission

Sound Power (Lwa)	98 dB
Diesel – High Speed	66 dB
Diesel – Low Speed	61 dB
Standby – 400V/3/50 Hz	59 dB

Components

Engine – Displacement	2200 cc
Engine – Cylinders	4
Compressor – Techno	Scroll economized
Compressor – Model	ZF22
Controls	APX

Refrigerant

Type	R452A
Charge	5.5 kg

Vector HE 19 MT

Specifications

Temperature Type: Multi Temperature

Cooling Capacity

	Nominal	Main evap	MHS 700	MHS 1100	MHS 2200	MHD 1100	MHD 2200
Diesel – High Speed 0°C/+30°C	17770 W	16830 W	7870 W	10740 W	13100 W	11260 W	15760 W
Diesel – High Speed -20°C/+30°C	9230 W	9270 W	5250 W	6700 W	7660 W	6460 W	8880 W
Standby – 400V/3/50 Hz 0°C/+30°C	16330 W	14890 W	7380 W	10060 W	12280 W	10470 W	13570 W
Standby – 400V/3/50 Hz -20°C/+30°C	8600 W	8290 W	4870 W	6260 W	7280 W	6400 W	8030 W

Cooling Capacity 2 Comp.

Diesel - High Speed 0°C/30°C	12860 W	6010 W	8210 W	10010 W	8600 W	11970 W
Diesel - High Speed -20°C/30°C	7080 W	4010 W	5120 W	5850 W	4930 W	6780 W
Standby – 400V/3/50 Hz 0°C/30°C	11870 W	5880 W	8020 W	9790 W	8340 W	10820 W
Standby – 400V/3/50 Hz -20°C/30°C	6610 W	3880 W	4990 W	5800 W	5100 W	6390 W

Cooling Capacity 3 Comp.

Diesel - High Speed 0°C/30°C	10180 W	4760 W	6500 W	7930 W	6810 W	9480 W
Diesel - High Speed -20°C/30°C	5610 W	3180 W	4050 W	4630 W	3910 W	5370 W
Standby – 400V/3/50 Hz 0°C/30°C	9830 W	4870 W	6640 W	8110 W	6910 W	8960 W
Standby – 400V/3/50 Hz -20°C/30°C	5470 W	3210 W	4130 W	4800 W	4220 W	5300 W

Heating Capacity

Diesel	9200 W	9000 W	3300 W	5400 W	9600 W	5400 W	9600 W
Standby – 400V/3/50 Hz	4500 W	4500 W	3300 W	5400 W	9600 W	5400 W	9600 W

Air Flow

Diesel	––	5550 m³/hr	1020 m³/hr	1910 m³/hr	3430 m³/hr	2220 m³/hr	3470 m³/hr
400V/3/50 Hz	––	4350 m³/hr	––	––	––	––	––

ATP Compliant

3426 MT - Rev. 1

Weight

815 kg

integrated

22 kg

33 kg

62 kg

40 kg

71 kg

Dimensions

H x W x D

2227 x 2050 x 430 mm

integrated

200 x 700 x 752 mm

200 x 1044 x 752 mm

167 x 2150 x 944 mm

167 x 1044 x 944 mm

167 x 2150 x 944 mm

Box Size Recommendation

+0°C / +30°C	95 m³
+0°C / +40°C	90 m³
-20°C / +30°C	95 m³
-20°C / +40°C	90 m³

Sound Emission

Sound Power (Lwa)	100 dB
Diesel – High Speed	69 dB
Diesel – Low Speed	63 dB
Standby – 400V/3/50 Hz	60 dB

Components

Engine – Displacement	2200 cc
Engine – Cylinders	4
Compressor – Techno	Scroll economized
Compressor – Model	ZF22
Controls	APX

Refrigerant

Type	R452A
Charge	7.3 kg

Vector HE 19 MT City

Specifications

Temperature Type: Multi Temperature

Cooling Capacity

	Nominal	Main evap	MHS 700	MHS 1100	MHS 2200	MHD 1100	MHD 2200
Diesel – High Speed 0°C/+30°C	16070 W	16070 W	7840 W	10880 W	13460 W	11000 W	14710 W
Diesel – High Speed -20°C/+30°C	8400 W	8720 W	5110 W	6410 W	7580 W	6880 W	8250 W
Diesel – Low Speed 0°C/+30°C	14030 W	13310 W	6860 W	9450 W	11760 W	9570 W	12310 W
Diesel – Low Speed -20°C/+30°C	7070 W	7090 W	4390 W	5870 W	6700 W	5930 W	7170 W
Standby – 400V/3/50 Hz 0°C/+30°C	16160 W	13330 W	7150 W	9850 W	12830 W	10230 W	13470 W
Standby – 400V/3/50 Hz -20°C/+30°C	8140 W	8040 W	4840 W	6160 W	7330 W	6150 W	7700 W

Cooling Capacity 2 Comp.

Diesel - High Speed 0°C/30°C	12570 W	6130 W	8420 W	10400 W	8560 W	11420 W
Diesel - High Speed -20°C/30°C	6790 W	3980 W	5020 W	5870 W	5360 W	6450 W
Standby – 400V/3/50 Hz 0°C/30°C	10760 W	5770 W	7950 W	10330 W	8270 W	10890 W
Standby – 400V/3/50 Hz -20°C/30°C	6480 W	3910 W	4990 W	5950 W	4940 W	6260 W

Cooling Capacity 3 Comp.

Diesel - High Speed 0°C/30°C	9600 W	4680 W	6430 W	7950 W	6540 W	8720 W
Diesel - High Speed -20°C/30°C	5190 W	3040 W	3830 W	4480 W	4100 W	4920 W
Standby – 400V/3/50 Hz 0°C/30°C	8650 W	4640 W	6390 W	7950 W	6540 W	8720 W
Standby – 400V/3/50 Hz -20°C/30°C	5210 W	3140 W	4020 W	4780 W	3970 W	5040 W

Heating Capacity

Diesel	9200 W	9200 W	3300 W	5400 W	9600 W	5400 W	9600 W
Standby – 400V/3/50 Hz	4500 W	4500 W	3300 W	5400 W	9600 W	5400 W	9600 W

Air Flow

Diesel	5550 m³/hr	5550 m³/hr	1020 m³/hr	1910 m³/hr	3430 m³/hr	2220 m³/hr	3470 m³/hr
400V/3/50 Hz	4350 m³/hr	4350 m³/hr	––	––	––	––	––

ATP Compliant

M1012 Add2

Weight

870 kg

integrated

23 kg

34 kg

60 kg

40 kg

71 kg

Dimensions

H x W x D

2227 x 2050 x 430 mm

integrated

200 x 700 x 752 mm

200 x 1044 x 752 mm

167 x 2150 x 944 mm

167 x 1044 x 944 mm

167 x 2150 x 944 mm

Box Size Recommendation

+0°C / +30°C	95 m³
+0°C / +40°C	90 m³
-20°C / +30°C	95 m³
-20°C / +40°C	90 m³

Sound Emission

Sound Power (Lwa)	98 dB
Diesel – High Speed	66 dB
Diesel – Low Speed	60 dB
Standby – 400V/3/50 Hz	58 dB
Piek compliant <60 dB	Yes

Components

Engine – Displacement	2200 cc
Engine – Cylinders	4
Compressor – Techno	Scroll economized
Compressor – Model	ZF22
Controls	APX

Refrigerant

Type	R452A
Charge	7.3 kg

Vector HE 19 E MT City

Specifications

Temperature Type: Multi Temperature

Cooling Capacity

	Nominal	Main evap	MHS 700	MHS 1100	MHS 2200	MHD 1100	MHD 2200
Standby – 400V/3/50 Hz 0°C/+30°C	16160 W	13330 W	7150 W	9850 W	12830 W	10230 W	13470 W
Standby – 400V/3/50 Hz -20°C/+30°C	8140 W	8040 W	4840 W	6160 W	7330 W	6150 W	7700 W

Cooling Capacity 2 Comp.

Standby – 400V/3/50 Hz 0°C/30°C		10760 W	5770 W	7950 W	10330 W	8270 W	10890 W
Standby – 400V/3/50 Hz -20°C/30°C		6480 W	3910 W	4990 W	5950 W	4940 W	6260 W

Cooling Capacity 3 Comp.

Standby – 400V/3/50 Hz 0°C/30°C		8650 W	4640 W	6390 W	7950 W	6540 W	8720 W
Standby – 400V/3/50 Hz -20°C/30°C		5210 W	3140 W	4020 W	4780 W	3970 W	5040 W

Heating Capacity

Standby – 400V/3/50 Hz

4500 W

3300 W

5400 W

9600 W

5400 W

9600 W

Air Flow

400V/3/50 Hz

4350 m³/hr

1020 m³/hr

1910 m³/hr

3430 m³/hr

2220 m³/hr

3470 m³/hr

ATP Compliant

M1012 Add1

Weight

561 kg

integrated

23 kg

34 kg

60 kg

40 kg

71 kg

Dimensions

H x W x D

2227 x 2050 x 430 mm

integrated

200 x 700 x 752 mm

200 x 1044 x 752 mm

167 x 2150 x 944 mm

167 x 1044 x 944 mm

167 x 2150 x 944 mm

Box Size Recommendation

+0°C / +30°C	90 m³
+0°C / +40°C	90 m³
-20°C / +30°C	90 m³
-20°C / +40°C	90 m³

Sound Emission

Sound Power (Lwa)	86 dB
Piek compliant <60 dB	Yes

Components

Compressor – Techno	Scroll economized
Compressor – Model	ZF22
Controls	APX

Refrigerant

Type	R452A
Charge	7.3 kg

Vector HE 19 MT Silent

Specifications

Temperature Type: Multi Temperature

Cooling Capacity

	Nominal	Main evap	MHS 700	MHS 1100	MHS 2200	MHD 1100	MHD 2200
Diesel – High Speed 0°C/+30°C	17770 W	16830 W	7870 W	10740 W	13100 W	11260 W	15670 W
Diesel – High Speed -20°C/+30°C	9230 W	9270 W	5250 W	6700 W	7660 W	6460 W	8880 W
Standby – 400V/3/50 Hz 0°C/+30°C	16330 W	14890 W	7380 W	10060 W	12280 W	10470 W	13570 W
Standby – 400V/3/50 Hz -20°C/+30°C	8600 W	8290 W	4870 W	6260 W	7280 W	6400 W	8030 W

Cooling Capacity 2 Comp.

Diesel - High Speed 0°C/30°C	12860 W	6010 W	8210 W	10010 W	8600 W	11970 W
Diesel - High Speed -20°C/30°C	7080 W	4010 W	5120 W	5850 W	4930 W	6780 W
Standby – 400V/3/50 Hz 0°C/30°C	11870 W	5880 W	8020 W	9790 W	8340 W	10820 W
Standby – 400V/3/50 Hz -20°C/30°C	6610 W	3880 W	4990 W	5880 W	5100 W	6390 W

Cooling Capacity 3 Comp.

Diesel - High Speed 0°C/30°C	10180 W	4760 W	6500 W	7930 W	6810 W	9480 W
Diesel - High Speed -20°C/30°C	5610 W	3180 W	4050 W	4630 W	3910 W	5370 W
Standby – 400V/3/50 Hz 0°C/30°C	9830 W	4870 W	6640 W	8110 W	6910 W	8960 W
Standby – 400V/3/50 Hz -20°C/30°C	5470 W	3210 W	4130 W	4800 W	4220 W	5300 W

Heating Capacity

Diesel	9200 W	9000 W	3300 W	5400 W	9600 W	5400 W	9600 W
Standby – 400V/3/50 Hz	4500 W	4500 W	3300 W	5400 W	9600 W	5400 W	9600 W

Air Flow

Diesel	5550 m³/hr	5550 m³/hr	1020 m³/hr	1910 m³/hr	3430 m³/hr	2220 m³/hr	3470 m³/hr
400V/3/50 Hz	4500 m³/hr	4500 m³/hr	3300 m³/hr	5400 m³/hr	9600 m³/hr	5400 m³/hr	9600 m³/hr

ATP Compliant

M1012

Weight

850 kg

integrated

22 kg

33 kg

62 kg

40 kg

71 kg

Dimensions

H x W x D

2227 x 2050 x 430 mm

integrated

200 x 700 x 752 mm

200 x 1044 x 752 mm

167 x 2150 x 944 mm

167 x 1044 x 944 mm

167 x 2150 x 944 mm

Box Size Recommendation

+0°C / +30°C	95 m³
+0°C / +40°C	90 m³
-20°C / +30°C	95 m³
-20°C / +40°C	90 m³

Sound Emission

Sound Power (Lwa)	98 dB
Diesel – High Speed	66 dB
Diesel – Low Speed	61 dB
Standby – 400V/3/50 Hz	59 dB

Components

Engine – Displacement	2200 cc
Engine – Cylinders	4
Compressor – Techno	Scroll economized
Compressor – Model	ZF22
Controls	APX

Refrigerant

Type	R452A
Charge	7.3 kg

Vector HE 19 Brochure

Vector eCool Brochure

Vector eCool Quick-Start Guide

Contact Your Service Center for More Information

Locate a Carrier Transicold Service Center near you using our Truck and Trailer Locator.

Locate a service center

Vector® HE 19 Trailer Refrigeration Units

Precision requires the best of efficiency

Vector HE 19: High efficiency for the cold chain

Vector® HE 19 Key Benefits

Optimized weight

Constant heating

Quiet operation

High capacity:

Sustainable solutions

Biofuel

Low GWP refrigerant

Optimized architecture

Enhanced thermal efficiency

Designed for uptime

Power source versatility

Multi-temperature flexibility

Pharmaceutical-grade certification

Better temperature homogeneity

View the full Vector HE 19 range

Vector HE 19

Specifications

Vector HE 19 City

Specifications

Vector HE 19 E City

Specifications

Vector HE 19 Silent

Specifications

Vector HE 19 MT

Specifications

Vector HE 19 MT City

Specifications

Vector HE 19 E MT City

Specifications

Vector HE 19 MT Silent

Specifications

Vector HE 19 Brochure

Vector eCool Brochure

Vector eCool Quick-Start Guide

Contact Your Service Center for More Information

Vector^® HE 19 Trailer Refrigeration Units

Vector^® HE 19 Key Benefits
