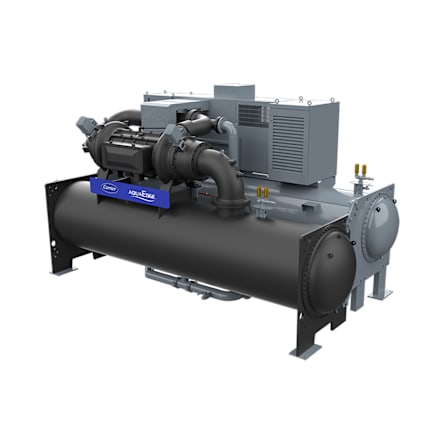

AquaEdge® - Magnetic bearings two-stage Centrifugal Chiller 19MV
AquaEdge® - Magnetic bearings two-stage Centrifugal Chiller
19MV
Refrigerant : R-1234ze
Compressor : Two-Stage Magnetic Bearings Centrifugal compressor
Nominal cooling capacity : 2100-3300 kW
The AquaEdge® 19MV liquid chillers are the high efficiency and high condensing temperature solution for Data Center applications where high efficiency, reliability and high condensing temperature operation are key customer requirements.
- Very high efficiency
- Very high temperatures in evaporator up to 35°C ideal for liquid cooling applications
- Very high temperatures in condenser up to 55°C
- Low sound levels
- Environmentally responsible
- Dry mode operation with Dry-Coolers
- Exceptional reliability
The 19MV range is available in 3 different configurations to adapt and optimize the size of the chiller to cooling capacity requirements.
Adapts to Your Data Center’s Challenges
- Delivers the cooling capacity you need — 2.1 to 3.3 MW*
- Operates under high-ambient conditions with condensing temperatures up to 55°C.
- Ensures high performance even with chilled-water temperatures up to 35°C, ideal for high‑density AI environments.
- Keeps noise levels below 80 dBA** for a more comfortable workspace.
- Modulates smoothly from 10% to 100% load, thanks to Carrier EquiDrive™ two-stage centrifugal compressor.
Reduces Your Energy Bills While Protecting Your IT
- Supports the reduction of energy use and operating costs.
- Achieves a COP of 6.75**, delivering over 30% savings versus standard systems***.
- Offers a high IPLV of 11.4** for strong part‑load efficiency.
Continuous cooling for your performance
- Restarts within 150 seconds, ensuring fast & progressive recovery after power outages.
- Delivers stable performance even at 10% load for unlimited time.
- Keeps THDi below 5% thanks to Active Harmonic Filters, protecting electrical infrastructure and reducing maintenance risks.
Supports Your Sustainability Strategy
- Provides low‑GWP refrigerant choices such as R‑1234ze or R‑515B.
- High efficiency helps lower overall power use and supports your carbon‑neutrality initiatives.
* at 20/30°C chilled water and 49/55°C condensation loop.
** AHRI conditions
*** Energy-savings comparison based on Carrier-defined baseline unit under AHRI conditions.
